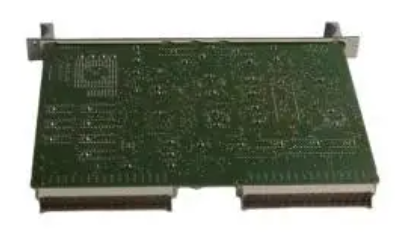

ABB HIEE45116R0001 FM9925A-E High Voltage Control Board

ABB HIEE45116R0001 FM9925A-E High Voltage Control Board

Product Overview

The ABB HIEE45116R0001 FM9925A-E high-voltage control board occupies a core position in high-voltage electrical systems. It is like the "commander" of high-voltage equipment, responsible for precise control of the operation of various equipment in high-voltage environments, ensuring stable and efficient operation of equipment in scenarios such as power transmission and industrial high-voltage applications. From power distribution in large substations to drive control of high-voltage motors in industrial production, this control board plays a crucial role in providing solid guarantees for the reliable operation of high-voltage systems.

Functional characteristics

Precise high-voltage regulation: By using advanced control algorithms, it is possible to achieve extremely precise adjustment of key parameters such as output voltage and current of high-voltage equipment. For example, in the application of high-voltage motor speed regulation, ensuring that the motor can operate stably under different load conditions effectively improves equipment operating efficiency and reduces energy loss.

Comprehensive state monitoring: With the help of high-precision sensors, real-time monitoring of the operating status of high-voltage equipment, including important parameters such as temperature, pressure, and partial discharge. Once an anomaly is detected, the alarm mechanism can be triggered in a very short period of time, and relevant data can be recorded in detail, providing sufficient and accurate information for preventive maintenance and fault diagnosis of the equipment, greatly reducing the risk of sudden equipment failures.

Flexible communication adaptation: equipped with rich communication interfaces, supporting multiple communication protocols such as Modbus TCP, IEC 61850, etc. Whether connected to the local monitoring system or connected to a remote smart grid platform, efficient and stable data exchange can be achieved, making it convenient for operators to monitor the operation of high-voltage equipment anytime and anywhere, achieving remote monitoring and intelligent management.

Working principle

When the HIEE45116R0001 FM9925A-E high-voltage control board is connected to the high-voltage system, signals from sensors, operation terminals, and other devices are first collected through various input interfaces. These signals cover real-time operating status of the equipment, instructions issued by operators, and other information. The high-performance processor inside the control board performs fast calculations and logical analysis on input signals based on pre written control programs, and generates corresponding control instructions. Subsequently, these instructions are transmitted to the executing mechanism through output interfaces, such as high-voltage switch drivers, high-voltage transformer tap changer controllers, etc., to achieve precise control of high-voltage equipment. At the same time, the control board continuously receives feedback signals from the operation of the equipment, forming a closed-loop control loop and continuously optimizing the control strategy to keep the high-voltage equipment in the optimal operating state.

Precautions

Installation environment requirements: It should be installed in a dry, well ventilated, suitable temperature, and away from strong electromagnetic interference sources. Avoid installing in areas with corrosive gases, high levels of dust, or susceptible to mechanical vibration and impact, in order to avoid affecting the performance and service life of the control board.

Installation and wiring specifications: When performing installation and wiring operations, it is necessary to strictly follow the guidance in the product manual. Ensure that the power and signal lines are firmly and reliably connected to prevent loosening, short circuits, and other situations. At the same time, it is necessary to carefully distinguish the functions and wiring methods of different interfaces to prevent equipment damage or malfunction caused by misconnection.

Software maintenance and upgrade: When conducting software programming, program updates, or parameter adjustments, it is necessary to backup the original program and data in advance to prevent data loss. Newly written or updated programs should undergo sufficient testing and verification to ensure their correctness and stability, and to avoid abnormal operation of high-voltage equipment caused by program errors, which may endanger personnel and equipment safety.

Similar model supplement

HIE451116R0002 FM9925B-E: Compared to HIE451116R0001 FM9925A-E, this model has been upgraded in communication functionality, supporting more types of communication protocols, especially when communicating with the new generation of smart grid equipment, it has stronger compatibility and data exchange capabilities. At the same time, it can respond more quickly to the dynamic changes of high-voltage systems, suitable for application scenarios that require extremely high communication efficiency and real-time performance.
