BENDER ISOMETER ® Iso685 series

BENDER ISOMETER ®  Iso685 series

Product Overview

ISOMETER ®  The iso685 series is an integrated insulation monitoring and fault location device developed by Bender, a German company. It is designed specifically for IT systems (ungrounded systems), with the core mission of real-time monitoring of insulation resistance, DC offset voltage, and other parameters. Combined with EDS (Insulation Fault Locator), it achieves accurate fault location and avoids the risk of electric shock and equipment damage. The product is divided into D-type (integrated display/button) and S-type (no display, requiring FP200 panel). The W-enhanced type has higher anti vibration and anti temperature performance (-40~+70 ℃), suitable for complex scenarios such as industrial automation and ship power, and complies with international standards such as IEC 61557-8.

Core parameters and physical characteristics

Category specific parameters

Dimensions: Width 108mm, Height 93mm, Depth 110mm

Weight ＜ 510g (excluding accessories)

Power supply requirements: AC/DC 24~240 V (tolerance -30%~+15%), frequency 50~400 Hz

Environmental adaptability standard type: working -25~+55 ℃, storage -40~+70 ℃; W-type: working -40~+70 ℃

Protection level terminal IP20, internal components IP40

Installation method: DIN rail installation (compliant with IEC 60715), screw installation (3 x M4 screws)

Adaptation system and measurement profile

（1） Scope of adaptation system

System type Voltage range Frequency range Maximum leakage capacitance

AC system 0~690 V (RMS) 0.1~460 Hz 0~1000 μ F (by profile)

DC system 0~1000 V -0~1000 μ F (according to profile)

3 (N) AC system 0~690 V (RMS) 50~60 Hz 0~150 μ F (power circuit profile)

（2） 6 measurement profiles

Profile type applicable scenario key parameters

Conventional constant frequency systems for power circuits measure a voltage of ± 50 V and a leakage capacitance of 0-150 μ F

Control circuits - Low voltage sensitive systems - Measurement voltage ± 10 V, voltage ≤ 230 V

Generator monitoring rapid measurement, frequency 50-60 Hz, leakage capacitance 0-5 μ F

Leakage capacitance of large capacitance systems such as ships with high capacitance ranging from 0 to 1000 μ F

Inverter>10 Hz (Inverter>10 Hz) 10~460 Hz Frequency conversion system leakage capacitance 0~20 μ F

Inverter<10 Hz (0.1~10 Hz) Low frequency system leakage capacitance 0~20 μ F

Detailed explanation of core functions

（1） Insulation monitoring function

Dual alarm setting: The response values of ALARM1 (warning) and ALARM2 (main alarm) can be independently set between 1 k Ω and 10 M Ω, with default values of 40 k Ω and 10 k Ω, respectively. It supports 25% hysteresis to prevent false alarms.

Connection monitoring: Real time detection of L1/+, L2, L3/- line connections and PE grounding status, triggering sound and light alarms in case of abnormalities.

Data storage: The historical memory can store 1023 alarm/fault information, including date and timestamp, and cache for 3 days after power failure.

IsoGraph trend chart: supports visualization of insulation resistance changes by hour/day/week/month/year, with up to 100 measurement points.

（2） Insulation fault location (EDS function)

Compatible with EDS devices: Supports EDS440-S/L (positioning current 2~10 mA), EDS441-S/L (positioning current 0.2~1 mA), and can connect up to 21 EDSs (255 channels).

Positioning mode:

Manual mode: Continuous positioning, manual stop required;

Automatic mode: ALARM2 triggers and automatically starts, with a cyclic interruption for insulation measurement;

Cycle mode: ALARM2 triggers and starts one cycle before stopping.

Key parameters: The positioning current can be set to 1/1.8/2.5/5/10/25/50 mA, and the response value I Δ L (main alarm) is 200 μ A~10 mA.

（3） ISOnet system isolation

Function: Through Ethernet, multiple devices (≤ 20) can collaborate to ensure that only one device actively measures at a time, while the rest are isolated and in standby mode.

Configuration requirements: BCOM system name and subsystem address should be consistent, device address should be unique, and support automatic skipping of faulty devices.

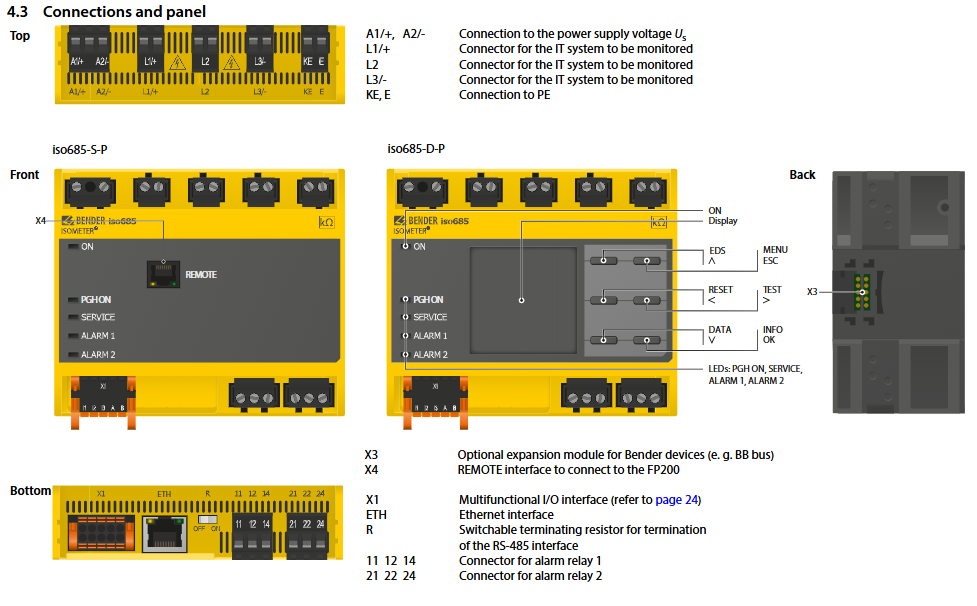

Interface and Communication

Interface type communication protocol/functional key parameters

Ethernet (ETH) Modbus TCP, BCOM, Web Server 10/100 Mbit/s, up to 5 TCP connections

RS-485 (X1 interface) BS bus, Modbus RTU baud rate 9.6 kBd, transmission distance ≤ 1200 m

X1 multifunctional I/O digital input (3 channels), digital output (2 channels), analog output (1 channel), analog output supports 0~20 mA/0~10 V and other signals

BB bus Bender internal device communication can connect up to 2 EDS44... - S devices without additional power supply

Web server remote parameter setting and data reading support Chrome/Firefox/Edge browsers, with write permission enabled

Operation and debugging process

（1） Basic debugging steps

Equipment installation: Choose the installation method, fix the equipment, and ensure the terminal spacing (horizontal 0mm, up and down 20mm);

Parameter configuration: Set language, date and time, system type, measurement profile, alarm response value, EDS mode, and positioning current through the debugging wizard;
