In the field of industrial automation, the performance of motion control systems directly determines the accuracy and efficiency of production equipment. The Omron FQM1 series flexible motion controller, with its high flexibility and powerful functions, occupies an important position in precision machining, electronic manufacturing, packaging machinery and other fields. Its core capabilities are not only reflected in hardware design, but also in its rich and powerful instruction system. This article will be based on the FQM1 series instruction reference manual, providing an in-depth analysis of its instruction architecture, security mechanisms, functional evolution, and core instruction applications, and offering engineers a professional and systematic technical guide.

Security cornerstone: rigorous programming standards and error handling

The primary prerequisite for any industrial control system is safety. The FQM1 series controllers prioritize safety regulations in their documentation and instruction design, which is reflected in the following aspects:

Clear warning grading: The manual strictly distinguishes between three levels: "danger", "warning", and "caution". For example, the "danger" level is used to indicate emergency danger situations that, if not avoided, could result in death or serious injury, and emphasizes that qualified operators must operate according to regulations. This rigorous division provides a clear risk awareness framework for engineering personnel.

Dual protection of hardware and software: The instruction manual emphasizes that safety measures such as emergency stop, interlock, and limit must be built in external circuits, and cannot rely solely on the software logic inside the controller. At the same time, for faults in the controller itself, such as damaged output transistors, power short circuits, etc., the document also clearly states that external safety measures must be taken to ensure system safety. This reflects the design philosophy of 'safety first over functionality'.

Program error and fault diagnosis: The instruction system is equipped with comprehensive error detection and handling mechanisms. For example, the FAL (006) instruction is used to generate user-defined non fatal errors, allowing the system to continue running when an exception is detected, and to light up the ERR indicator and log the error code. The FALS (007) instruction is used to generate fatal errors. Once executed, the controller will immediately stop running and sound an alarm through the FALS error flag and error code. This hierarchical error handling mechanism makes fault diagnosis and troubleshooting more efficient.

Version Evolution: Continuously Optimized Functional Upgrades

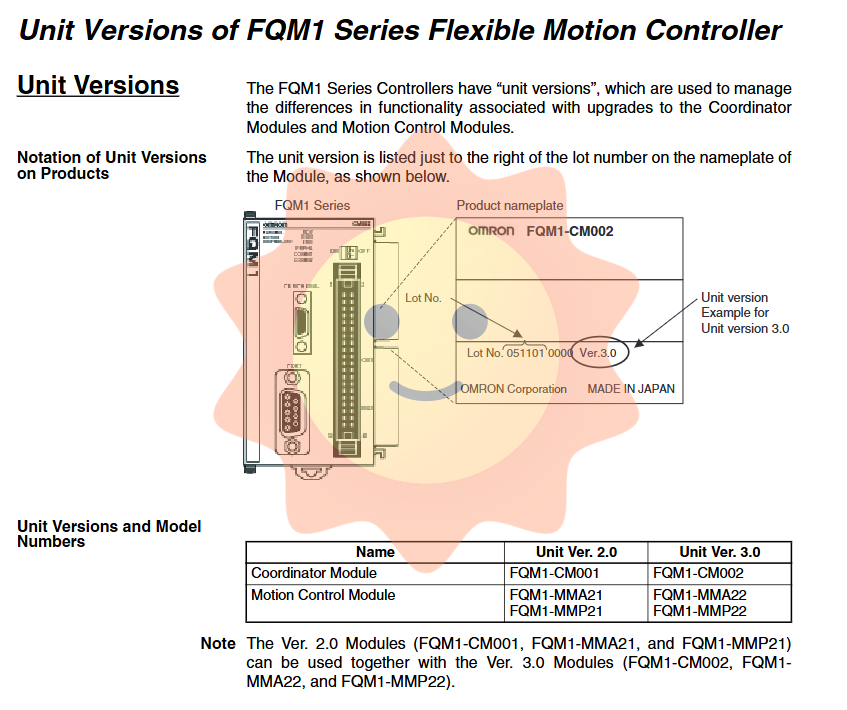

The FQM1 series manages the optimization and upgrading of functions through "unit versions". From version 2.0 to 3.3, each iteration injected new vitality into the controller, making it more adaptable to complex industrial field requirements. Understanding these evolutions is crucial for selection, programming, and system maintenance.

Key improvements in version 3.2:

Enhanced pulse output function: In the electronic cam mode, the pulse output can be set through 0 points, which provides great convenience for continuous motion control of rotating shafts (such as turntables and flying shears). Meanwhile, the optimization of instruction operands allows for automatic calculation of pulse output frequency, simplifying programming.

CJ series unit compatibility extension: allows mounting more types of CJ series units, such as CJ1W-ADG41 (analog input unit), greatly enhancing the system's I/O expansion and data processing capabilities.

Refinement of high-speed counter function: Under the reset mode of Z-phase signal and software reset, interrupt tasks can be initiated, providing the possibility for precise position synchronization control.

Further optimization of version 3.3:

Compatibility extension for servo motors: From only supporting the OMNUC W series absolute value encoder to supporting the OMNUC G series absolute value encoder for servo motors, the system's compatibility with the new generation of servo drives has become more flexible.

Analog Unit Support: Supports more types of analog I/O units, such as CJ1W-DA08V (analog output unit) and CJ1W-AD081-V1 (analog input unit), providing a hardware foundation for scenarios that require high-precision analog processing, such as tension control and temperature control.

Enhanced analog output function: Added offset/gain adjustment function, allowing default adjustment data to be registered as offset value when adjusting gain. This is very practical for application scenarios where the offset is first adjusted through the servo driver and then the gain is adjusted.

The improvements between these versions clearly demonstrate the trajectory of the FQM1 series from universal motion control to a more refined, intelligent, and open automation platform.

Overview of Instruction System: Function Classification and Core Applications
