In the field of industrial automation, the performance of motion control systems directly determines the accuracy and efficiency of production equipment. The Omron FQM1 series flexible motion controller, with its high flexibility and powerful functions, occupies an important position in precision machining, electronic manufacturing, packaging machinery and other fields. Its core capabilities are not only reflected in hardware design, but also in its rich and powerful instruction system. This article will be based on the FQM1 series instruction reference manual, providing an in-depth analysis of its instruction architecture, security mechanisms, functional evolution, and core instruction applications, and offering engineers a professional and systematic technical guide.

Security cornerstone: rigorous programming standards and error handling

The primary prerequisite for any industrial control system is safety. The FQM1 series controllers prioritize safety regulations in their documentation and instruction design, which is reflected in the following aspects:

Clear warning grading: The manual strictly distinguishes between three levels: "danger", "warning", and "caution". For example, the "danger" level is used to indicate emergency danger situations that, if not avoided, could result in death or serious injury, and emphasizes that qualified operators must operate according to regulations. This rigorous division provides a clear risk awareness framework for engineering personnel.

Dual protection of hardware and software: The instruction manual emphasizes that safety measures such as emergency stop, interlock, and limit must be built in external circuits, and cannot rely solely on the software logic inside the controller. At the same time, for faults in the controller itself, such as damaged output transistors, power short circuits, etc., the document also clearly states that external safety measures must be taken to ensure system safety. This reflects the design philosophy of 'safety first over functionality'.

Program error and fault diagnosis: The instruction system is equipped with comprehensive error detection and handling mechanisms. For example, the FAL (006) instruction is used to generate user-defined non fatal errors, allowing the system to continue running when an exception is detected, and to light up the ERR indicator and log the error code. The FALS (007) instruction is used to generate fatal errors. Once executed, the controller will immediately stop running and sound an alarm through the FALS error flag and error code. This hierarchical error handling mechanism makes fault diagnosis and troubleshooting more efficient.

Version Evolution: Continuously Optimized Functional Upgrades

The FQM1 series manages the optimization and upgrading of functions through "unit versions". From version 2.0 to 3.3, each iteration injected new vitality into the controller, making it more adaptable to complex industrial field requirements. Understanding these evolutions is crucial for selection, programming, and system maintenance.

Key improvements in version 3.2:

Enhanced pulse output function: In the electronic cam mode, the pulse output can be set through 0 points, which provides great convenience for continuous motion control of rotating shafts (such as turntables and flying shears). Meanwhile, the optimization of instruction operands allows for automatic calculation of pulse output frequency, simplifying programming.

CJ series unit compatibility extension: allows mounting more types of CJ series units, such as CJ1W-ADG41 (analog input unit), greatly enhancing the system's I/O expansion and data processing capabilities.

Refinement of high-speed counter function: Under the reset mode of Z-phase signal and software reset, interrupt tasks can be initiated, providing the possibility for precise position synchronization control.

Further optimization of version 3.3:

Compatibility extension for servo motors: From only supporting the OMNUC W series absolute value encoder to supporting the OMNUC G series absolute value encoder for servo motors, the system's compatibility with the new generation of servo drives has become more flexible.

Analog Unit Support: Supports more types of analog I/O units, such as CJ1W-DA08V (analog output unit) and CJ1W-AD081-V1 (analog input unit), providing a hardware foundation for scenarios that require high-precision analog processing, such as tension control and temperature control.

Enhanced analog output function: Added offset/gain adjustment function, allowing default adjustment data to be registered as offset value when adjusting gain. This is very practical for application scenarios where the offset is first adjusted through the servo driver and then the gain is adjusted.

The improvements between these versions clearly demonstrate the trajectory of the FQM1 series from universal motion control to a more refined, intelligent, and open automation platform.

Overview of Instruction System: Function Classification and Core Applications

The instruction system of FQM1 is a software manifestation of its powerful functionality. The manual systematically categorizes instructions by function, forming a large and organized instruction set. The following is a deep analysis of several types of core instructions:

Core commands for motion control (high-speed counter and pulse output):

This is the core value of FQM1 as a motion controller. The instruction set provides fine control over high-speed counting and pulse output:

INI (880) (Mode Control): As the "main switch" for motion control, it can start/stop comparison, change the current value (PV) and ring count value of high-speed counter/pulse output, and even immediately stop pulse output.

PRV (881) (High Speed Counter PV Reading): Used to read the current value of the high-speed counter, latch value, or pulse output counter in real time, and is the basis for position feedback and closed-loop control.

CTBL (882) (Comparison Table Login): Allow users to register a target value or range comparison table. When the PV value output by the high-speed counter or pulse matches the value in the table, an interrupt task can be triggered. This is the key to achieving complex synchronous control such as electronic cam and flying shear.

SPED (885) (speed output) and PULS (886) (pulse setting): These two instructions are used in combination to form the basic framework of positioning control. PULS (886) sets the number of pulses to be output (target position), while SPED (885) sets the output frequency (target speed), achieving fast positioning without acceleration or deceleration.

ACC (888) (acceleration/deceleration control) and PLS2 (887) (pulse output): These two commands are used for applications that require smooth motion. ACC (888) provides the same acceleration and deceleration rates, while PLS2 (887) allows for separate acceleration and deceleration rates, enabling more complex trapezoidal or S-shaped velocity curves.

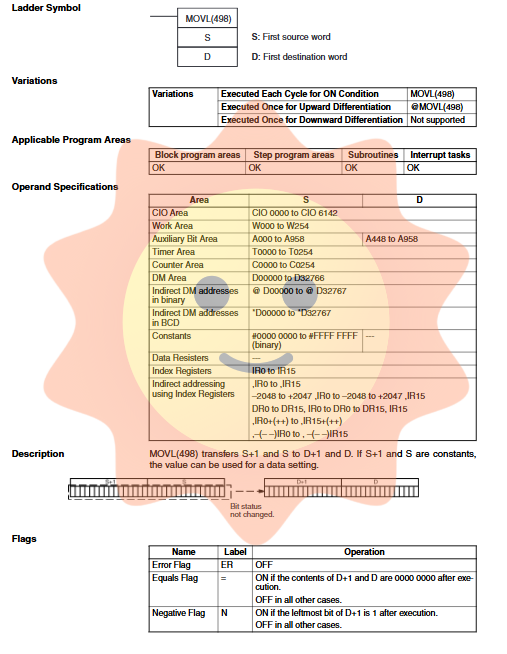

Data processing and operation instructions:

In addition to motion control, FQM1 also has powerful data processing capabilities to meet complex process calculation requirements.

Arithmetic operation instructions: Provides rich mathematical operations, including signed/unsigned binary, BCD code addition (+,+L), subtraction (-, - L), multiplication (*, * L), division (/,/L) operations, and all support carry (+C, - C) operations, capable of handling high-precision, large-scale numerical calculations.

Floating point operation instructions: In order to handle more complex engineering calculations such as trigonometric functions, exponents, logarithms, etc., the instruction set includes two sets of floating-point operation instructions: single precision (+F, - F, SIN, COS, etc.) and double precision (+D, - D, SIND, COSD, etc.). This provides a mathematical foundation for advanced applications such as robot kinematics and CNC interpolation.

Data conversion instructions: BIN (023), BCD (024), ASC (086), HEX (162) and other instructions, which achieve flexible conversion between different data formats (BCD, binary, ASCII), ensuring compatibility between data and external devices (such as touch screens, barcode scanners) during interaction.

Program flow and organizational instructions:

Efficient programming cannot be achieved without a clear organizational structure.

Subroutines and macroinstructions: SBS (091) (subroutine calls) and MCRO (099) (macroinstructions) are used to modularize reusable program segments and improve code reuse. MCRO (099) implements a calling method similar to high-level language "functions" by fixing input/output parameters (A540-A549), making the program structure clearer.

Block program instructions: BPRG (096) and BEND (801) define block program regions. Combined with branch instructions such as IF (802), ELSE (803), IEND (804), etc., a series of internal instructions can be unconditionally executed and conditionally branched under one input condition, simplifying the programming of complex logic.

Step instructions: STEP (008) and SNXT (009) provide powerful tools for building sequential control programs. It allows for the decomposition of complex processes into multiple steps, with each step advancing to the next after meeting certain conditions, making it highly suitable for automated equipment with clear procedures such as assembly and processing.

Performance optimization and debugging

In order to ensure the stable operation of the system under high-performance requirements, FQM1 provides various instructions and functions for optimization and debugging.

Execution time and steps: The manual provides a detailed list of the execution time and number of program steps for each instruction in Chapter 4. For example, the execution time of basic LD and AND instructions is only 0.10 microseconds, while the execution time of complex EXP (467) (exponential) instructions is about 18 microseconds. These data are crucial for engineers to accurately estimate program scanning cycles, optimize key program segments, and achieve high-speed control. Especially when dealing with high-speed counter interrupts and pulse outputs, it is necessary to ensure that the program execution time meets real-time requirements.

Debugging instruction: TRSM (045) (Trace Memory Sampling) instruction allows users to set sampling points at any position in the program to capture data changes of specific bits or words. Combining the timing diagram function of CX Programmer, it can intuitively analyze the timing relationship between program logic and I/O signals, which is a powerful tool for troubleshooting program problems and optimizing control logic.

Data backup mechanism: The manual provides detailed instructions on how user programs, parameters, and some DM area data are backed up through flash memory, while other data (such as error logs and some DM area data) are held by supercapacitors. By understanding this mechanism, engineers can plan the storage location of data reasonably to prevent the loss of key process parameters due to power outages or power failures.
