SCHNEIDER Electric Magelis XBT Series HMI Product Comprehensive Guide and Technical Analysis

F: | Au:FAN | DA:2026-01-21 | 708 Br: | 🔊 点击朗读正文 ❚❚ | Share:


SCHNEIDER Magelis XBT GT/GK/GH Series Human Machine Interface (HMI) Hardware Guide

Schneider Electric's Magelis XBT series human-machine interface (HMI) products, including the XBT GT (touch screen), XBT GK (key panel), and XBT GH (handheld) series, are advanced control and display terminals designed specifically for harsh industrial environments. This article is based on the official technical document (XBTF024110. pdf), aiming to provide a detailed, professional, and unique technical analysis and application guide, covering product overview, technical specifications, security specifications, installation and deployment, connection debugging, and maintenance points, providing authoritative references for system designers, integration engineers, and maintenance personnel.


Part 1: Overview and Core Features of Product Series

The Magelis XBT series HMI products are powered by 24V DC and have built a complete product line from compact to large, meeting the needs of different application scenarios.

1. XBT GT Touchscreen Series: This series offers a variety of screen sizes ranging from 3.8 inches (such as XBT GT1105) to 15 inches (such as XBT GT7340). Display technology includes monochrome STN, color STN, and high-resolution TFT (thin film transistor) active matrix screens. The high-end models support VGA, SVGA, and even XGA resolutions (such as XBT GT7340) and offer rich color performance (up to 65536 colors). Key features include IP65 protection level, built-in Ethernet port (most models), USB host interface, CF card expansion, and multiple serial communication ports (COM1, COM2), supporting RS-232C, RS-422, and RS-485 protocols.

2. XBT GK key panel series: designed for environments that are not suitable for direct touch operation (such as the presence of corrosive residues), while providing touch screen functionality, it integrates industrial grade trackballs (pointer devices), physical function keys (static key Fi and dynamic key Ri), and a complete alphanumeric keyboard. For example, XBT GK5330 is equipped with 12 static function keys and 18 dynamic function keys. This design not only ensures the accuracy of operation, but also enhances the reliability and feedback of human-computer interaction through physical buttons and LED status indicators.

3. XBT GH Handheld Series: The representative model XBT GH2460 is a portable device that integrates a 5.7-inch TFT color touch screen, function keys, and critical safety components. Its core features include emergency stop switches (compliant with ISO 13849-1 safety category), three position enable switches, and operation switches, making it particularly suitable for robots, mobile devices, or industrial scenarios that require safety intervention. Its protection level reaches IP65 (overall), ensuring durability for handheld use.

Core design warning: The document repeatedly emphasizes that XBT equipment should not be used as the sole control or alarm device for critical safety functions such as motor start stop and emergency stop. The system design must consider potential failure modes of the control path and provide independent or redundant hardware protection for critical functions (such as mechanical interlocking). For example, in the case where the backlight fails and the screen cannot be read, it is necessary to ensure that dangerous operations such as fuel cut-off can be performed through mechanisms independent of the HMI. This reflects the fundamental principles of functional safety (IEC 61508/ISO 13849) in HMI integration.


Part 2: In depth Analysis of Technical Specifications

1. Electrical and environmental specifications:

All XBT series devices have a rated input voltage of 24 VDC, with an allowable range between 19.2 and 28.8 VDC. The power consumption varies by model, with small devices (such as XBT GT1105) reaching approximately 13W and large devices (such as XBT GT7000 series) reaching up to 50W. The ambient operating temperature is usually between 0 ° C and 40 ° C (some models can store temperatures up to -20 ° C to 60 ° C). The document specifically states that during long-term operation in environments exceeding 40 ° C, the contrast of the STN display screen may temporarily decrease, but it will recover after the temperature returns to normal, without affecting device operation.

Protection and certification: The front panel of the equipment has reached IP65 protection level (dustproof, anti low-pressure water jet), suitable for use in industrial cabinets. The product has passed multiple international certifications, including:

North America: UL 508 (Industrial Control Equipment), CSA standards, and ANSI/ISA-12.12.01 certification applicable to Class I Division 2 hazardous locations (except XBT GT2930).

Europe: CE mark, compliant with the Low Voltage Directive (2006/95/EC) and the EMC Directive (2004/108/EC).

Ships: Some XBT GT models have obtained type approval from major classification societies such as RMRS, RINA, LR, GL, DNV, BV, ABS, etc.

Environmental Protection: Compliant with RoHS Directive (2011/65/EU) and WEEE Directive (2002/96/EC).

2. Display and memory specifications:

Display technology: STN (Super Twisted Nematic) screens have lower costs and relatively limited viewing angles and contrast; TFT screens provide a wider viewing angle, higher brightness, faster response time, and brighter colors. For example, the TFT screen brightness of XBT GT2430 and XBT GH2460 can reach 400 cd/m ², with a viewing angle of ± 80 degrees.

Backlight lifespan: CFL (cold cathode fluorescent lamp) backlight lifespan is usually between 50000 and 75000 hours (the time it takes for brightness to drop to half of its initial value at 25 ° C), while some new models (such as XBT GT2430) and later revised versions use LED backlight, which has a longer lifespan (≥ 50000 hours).

Memory configuration: The device is equipped with built-in application flash memory (Flash EPROM, 16-32MB), running memory (DRAM, 16-64MB), and SRAM for data backup (128-512KB, powered by lithium batteries). Lithium batteries have a theoretical lifespan of over 10 years at 25 ° C and can support data backup for approximately 60 days (when fully charged) after the main power is disconnected.

3. Interface and Connection:

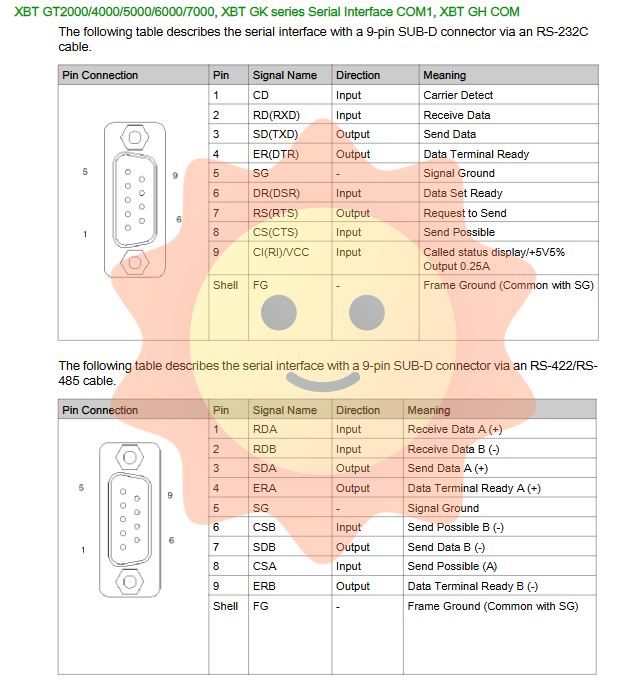

Serial interface (COM1/COM): It is the main channel for connecting PLCs (such as Schneider Modicon series, Siemens, Rockwell, etc.). The XBT GT1005 series uses an RJ45 interface, while other series use a 9-pin D-Sub interface, supporting RS-232C, RS-422, and RS-485 modes, with baud rates adjustable from 2400 bps to 115200 bps. The document strongly warns that the serial port is not isolated, and the signal ground (SG) is internally connected to the chassis ground (FG). It is necessary to ensure that the FG terminal is separately and well grounded (grounding resistance ≤ 100 Ω, wire diameter ≥ 2mm ²) to prevent electric shock hazards or communication failures caused by potential differences.

Ethernet interface: Most models are equipped with 10Base-T/100Base TX adaptive Ethernet ports for high-speed data exchange and network integration. The link status and data activity can be visually determined through LED indicator lights (green/orange).

USB and CF card interface: The USB host interface is used to connect a keyboard, mouse, USB flash drive, or download programs. The CF card slot (Type II) is used for project backup, historical data recording, and recipe storage. The operation (insertion and removal) of CF card must be carried out when the access indicator light (green) is off or constantly on, otherwise it may cause data damage. The built-in DIP switch of the device can force the setting to start from the CF card or force the card cover to close.

Auxiliary (AUX) interface (XBT GT4000 and above/XBT GK5330/XBT GH): Provides external reset input, alarm output, buzzer output, and audio output functions for integrating external signals and sound and light indicators.

Part Three: Core Guidelines for Safety, Installation, and Cabling

1. Safety First: Core Warning Analysis

The document runs through multiple layers of safety warnings, graded according to the degree of danger:

Danger (DANGER): If not avoided, it may result in death or serious injury. For example, when using equipment in hazardous areas (Class I, Div 2), it is necessary to confirm that all interfaces (CF card covers, AUX connectors) are securely locked and that module wiring or replacement must be carried out in a power-off state. When using a USB interface in hazardous areas, a USB cable clamp or mounting bracket must be installed.

Warning: Failure to avoid may result in death or serious injury. For example, the "out of control" warning emphasizes that critical control functions require independent redundant paths; The warning of 'unexpected device operation' prohibits using HMI as the sole device for critical control or alarm.

CAUTION: If not avoided, it may result in mild to moderate injury or equipment damage. For example, gloves should be worn when handling damaged LCD screens (the liquid inside the screen is irritating); The torque during installation should not exceed 0.5 Nm to prevent the shell from cracking.

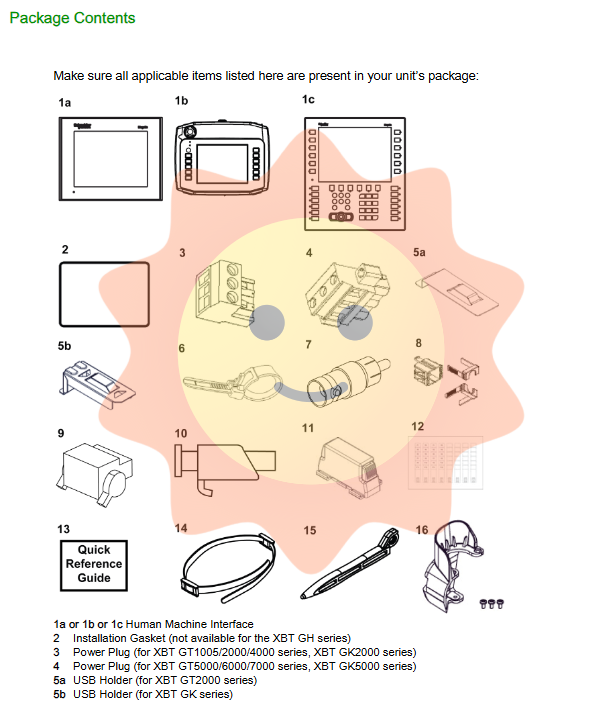

2. Professional installation process:

Installation must be carried out by qualified personnel. The core steps include:

Panel opening: According to the precise cutting size table of each model (e.g. XBT GT2330 is 156mm x 123.5mm ± 1.0mm).

Sealing gasket inspection and replacement: Before installation, ensure that the sealing gasket is correctly embedded in the grooves around the unit, and its surface should be about 2mm higher than the grooves. The sealing gasket is the key to maintaining the IP65 rating and will age over time and in the environment. It is recommended to inspect and replace it at least once a year or immediately in case of scratches or dirt.

Fixed method:

Spring buckle: mainly used for XBT GK series, also suitable for some XBT GT models. Easy to install, suitable for panel thickness of 1.5-6mm. During installation, the upper and lower parts of the buckle need to be pressed simultaneously to lock.

Screw fasteners: provided with the XBT GT series, providing a more secure mechanical fixation. Insert the fixing component into the slot on the side of the unit and slide it towards the back, then tighten it with screws (torque 0.5 Nm).

Environmental considerations: Ensure that there is sufficient space around the device (recommended at least 100mm) for heat dissipation and maintenance. Avoid installation in environments filled with corrosive gases or flammable chemical vapors.

3. Power supply and wiring principles:

Power connection: A regulated 24VDC power supply that meets Class 2 requirements must be used. The power cord (recommended 0.2-2.5 mm ²) should be twisted until it reaches the plug to suppress electromagnetic interference. The wiring torque of the power plug is 0.5-0.6 Nm.

Grounding: It is mandatory to achieve independent grounding. The FG terminal must be connected to a dedicated grounding post using a wire with a cross-sectional area of not less than 2 mm ², and the grounding resistance should be less than 100 Ω. It is prohibited to ground other devices through the FG terminal of this device.

Line separation: Input/output signal lines must be arranged separately from power lines and power lines or shielded cables (with shielding layer connected to FG) must be used to minimize electromagnetic interference.


Part Four: Debugging, Maintenance, and Troubleshooting

1. Setting and Debugging:

Develop the project using Vijeo Designer software (V6.2 version applicable to this manual). When the device is running, the settings menu can be accessed through a specific preset method, such as touching the top left corner of the screen or continuously touching both corners. The menu is divided into:

Offline settings: including network configuration (IP address, subnet mask, etc.), buzzer mode, backlight control (such as setting idle shutdown time to extend lifespan).

System settings: including date/time adjustment, language selection, brightness/contrast adjustment, version information viewing, and memory status display.

2. Self diagnostic test:

The device has a powerful built-in self-test function, which can be run in the "self-test" menu under "Offline Settings", including:

Character mode test: Check if all character libraries display properly.

Display mode test: Check the graphic display capability.

Touch panel testing: calibrate and test the response of each touch area.

COM port testing: It is necessary to use a loopback cable to verify the transceiver function of RS-232C or RS-485 ports.

Video memory test: Check the display memory.

3. Key points for regular maintenance:

Cleaning: Use a neutral cleaner and a soft cloth to wipe the screen and casing. Do not use paint thinners, organic solvents, or strong acid compounds.

Checkpoint: Regularly check whether the power supply voltage is within the allowable range; Check if all cable connections are secure; Check if the installation bracket is securely fastened; Check the condition of the sealing gasket.

Backlight replacement: Only specific revised versions of the XBT GT5000 series and XBT GT6330/6340/7340 allow users to replace the backlight themselves and strictly follow the guidelines provided with the backlight kit. For other models, the equipment must be returned to an authorized Schneider repair center for replacement. Before operation, be sure to turn off the power and cool it down for 10 minutes, and it is strictly prohibited to attempt to replace the internal lithium battery.

4. Typical troubleshooting:

No display on screen: Check for power connection, voltage, burnt backlight, or downloaded applications.

Communication failure: Check if the driver and device settings in Vijeo Designer are correct; Check the wiring and protocol configuration of communication cables; Run COM port self-test.

Touch unresponsive/slow response: Run touch panel self-test and calibration; Check if the CPU load is too heavy (such as too many variables, too fast scan rate), and optimize the project design.

Date and time cannot be saved: It may be due to the depletion of the internal backup lithium battery, which needs to be charged continuously for 96 hours. If it is invalid, please contact the service center
