SEW MOVIDRIVE ®  MD-60A Inverter: Professional Technical Analysis from Installation to Startup

In the field of modern industrial transmission and control, SEW-EURODRIVE occupies an important position with its outstanding drive technology. MOVIDRIVE ®  The MD-60A series drive inverters, as its classic product line, are designed specifically for AC asynchronous motors or permanent magnet synchronous motors in industrial and commercial systems. This article is based on the 2001 version of the official operating manual (version: Edition 09/2001, document number: 1053 2617/EN), which deeply analyzes the unit design, installation specifications, wiring configuration, startup process, and technical data of this series of frequency converters. The aim is to provide a detailed and practical technical literature for electrical engineers, system integrators, and maintenance personnel.

Product Overview and Unit Design

MOVIDRIVE ®  The MD-60A frequency converter adopts a modular design and is divided into 5 different physical sizes (Size 1 to Size 5) according to power levels. This design ensures coverage from 0.15 kW small drives to 75 kW large drive applications.

1.1 Unit Naming Rules

According to page 7 of the manual, equipment models such as MD_60A-5A3-4-0 provide key technical features:

MD-60A: Product series code.

5A3 or 2A3: represents the input voltage level (400/500V unit or 230V unit).

Subsequent numbers: such as 0015, representing power level (e.g. 0015 corresponds to 1.5 kW).

1.2 Size Differences and Structural Layout

There are significant differences in the mechanical structure of units of different sizes, mainly reflected in the layout of wiring terminals:

Size 1: Suitable for 0015-0040 of 400/500V units and 0015-0037 of 230V units. This size is equipped with plug-in power terminals (X1-X4) for easy maintenance.

Size 2: Suitable for models such as 0055-0110, with an independent power shielding clip.

Size 3-5: As the power increases (e.g. size 5 corresponds to 0550-0750), the device size significantly increases. For example, size 5 has a width of 280mm, a height of 610mm, and is equipped with a touch guard to ensure safe operation.

All sizes retain a unified control unit structure, including a TERMINAL slot (for DBG11A keyboard or USS21A serial interface), 7-segment code display, and X10 to X13 electronic terminal blocks. The MDV/MDS models are additionally equipped with Sub-D interfaces for X14 (encoder analog/external encoder input) and X15 (motor encoder input).

Safety and Compliance Installation Guidelines

Installation is the first step in the operation of a frequency converter, and Chapter 4 (Installation) of the manual provides extremely strict specifications, especially for UL certification and electromagnetic compatibility (EMC) requirements.

2.1 UL Certification Installation Requirements

For applications that require compliance with UL standards, the following special regulations must be followed:

Cable temperature grade:

MD-60A0015-0300 model: Copper cables with a temperature resistance of 60/75 ° C must be used.

MD-60A0370-0750 model: Copper cables with a temperature resistance of 75/90 ° C must be used.

Terminal torque: The power terminal torque is strictly graded: Size 1 is 0.6 Nm, Size 2 is 1.5 Nm, Size 3 is 3.5 Nm, and Sizes 4/5 is 14 Nm.

Power supply system limitation: only applicable to grounding star points (TN and TT systems). For 400/500V units, the maximum power supply current must comply with the table restrictions (such as the 0015 model being limited to 10000 AAC, 500VAC); UL certification is not applicable for IT systems (ungrounded star points).

2.2 Electromagnetic Compatibility (EMC) and Shielding Installation

Power shield clamp: Sizes 1 and 2 come standard with a power shield clamp. This fixture is used to efficiently fix the shielding layer of motor and brake wires, ensuring that high-frequency interference signals are introduced into the ground wire (PE) through large-area metal contacts, thereby reducing emission interference.

Cable isolation: Power cables and electronic signal cables must be laid separately in different cable trays. If parallel routing cannot be avoided, sufficient spacing must be maintained.

Output Reactor (HD...): In order to maintain the emission limits of Class A or Class B, the manual recommends installing shielded motor cables and HD... output reactors on the motor side. During installation, the three-phase cables must pass through the reactor simultaneously, and the PE line must not pass through.

2.3 Heat dissipation and installation spacing

Minimum gap: To ensure the effectiveness of forced air cooling, at least 100mm of ventilation space must be left at the top and bottom of the equipment. No gap is required on the side, allowing for parallel installation.

Installation direction: The equipment must be installed vertically. It is strictly prohibited to install horizontally, diagonally, or upside down, otherwise it will seriously affect the heat dissipation efficiency and lead to reduced rated operation.

System bus and interface wiring

MOVIDRIVE ®  MD_60A supports multiple communication protocols, among which System Bus (SBus) and RS-485 are the two core networking methods.

3.1 System Bus (SBus) Connection

SBus is based on the CAN bus standard (ISO 11898) and supports up to 64 sites.

Cable specifications: Twisted shielded copper cable must be used, with a characteristic impedance of 120 Ω (at 1MHz) and a capacitance of ≤ 40 pF per meter.

Terminal resistor: The terminal resistor needs to be activated (set to ON) on the devices connected at the beginning and end of the SBus connection through dip switch S12, and S12 at the intermediate station must be turned off (OFF).

Baud rate and distance: up to 320 meters at 125 kbaud; The limit is 40 meters at 1000 kbaud.

Potential balance: Devices connected through SBus must ensure that there is no potential difference between them, otherwise additional grounding wires need to be used for compensation.

3.2 RS-485 interface

The RS-485 interface supports multi-point connections (up to 32 devices) and is commonly used for master-slave control.

Dynamic terminal resistor: This interface has a built-in dynamic terminal resistor, which does not require additional external connections.

Maximum length: The total length of the line is limited to 200 meters. It is also necessary to connect the shielding layer to DGND over a large area.

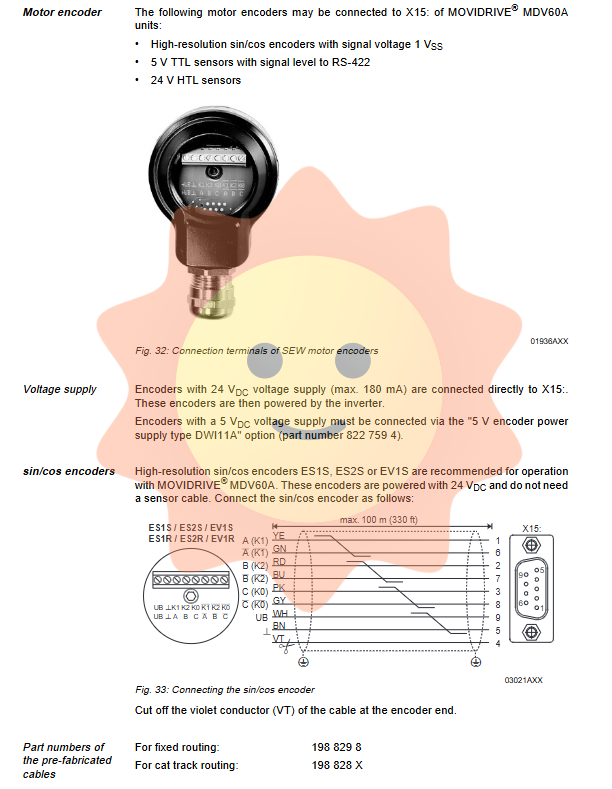

3.3 Connection between Encoder and Rotary Transformer

Section 4.13 of the manual provides detailed wiring requirements for feedback systems, which are crucial for closed-loop control.

Line length and diameter: The maximum length from the inverter to the encoder/rotary transformer is 100 meters, and the cross-sectional area of the core wire should be between 0.20-0.50 mm ².

High resolution Sin/Cos encoder: ES1S, ES2S, or EV1S are recommended. This type of encoder is powered by 24V DC and does not require a separate sensing cable. Attention should be paid when wiring: Cut the purple wire (VT) at the motor end.

HTL sensor: For 24V HTL sensors (such as ES1C), be careful not to connect the reverse channels A (K1), B (K2), and C (K0).

Resolver: For the MDS60A model, a rotary transformer needs to be connected. The typical color codes are: Ref.+pink, Cos+red, Sin+yellow.

Start debugging and parameter configuration

The Startup section provides a detailed distinction between two debugging tools: DBG11A keyboard (for VFC mode) and PC software MOVITOOLS (for CFC/SERVO mode).

4.1 Preparation before startup

Security lock: It is necessary to ensure that the X13:1 (DIO0 "Controller inhibit") terminal is a "0" signal (low level) to prevent accidental motor start-up.

Data collection: Prepare motor nameplate data (rated voltage, current, frequency, power factor cos φ), encoder type (TTL/Sin Cos/HTL), and load moment of inertia.

4.2 Using DBG11A for VFC startup

For standard VFC control (sensorless vector control), the operation process is as follows:

Language setting: In parameter group 8, modify P801 to select the language (DE/EN/FR).

Parameter set and mode: Select the parameter set (such as Param. Set 1) and the running mode (such as VFC1).

Motor parameterization:

If it is an SEW standard 4-pole motor, you can directly select the model from the list (such as DV112M4).

If it is a non SEW motor, manual input of nameplate data is required. Special attention: If using Δ connection and the turning point is 87 Hz, the rated voltage of 230V must be input first, and then the maximum speed of P302 should be modified to the corresponding value of 87 Hz after starting.

Static recognition: For non SEW motors, the system will prompt for calibration. At this point, a brief X13:1 "1" signal is required to excite the motor for parameter estimation. Save the data to EEPROM after completion.

4.3 Starting of speed controller (closed-loop)

If the application requires precise speed control (VFC-n-CTRL, CFC, or SERVO), it must enter the speed controller startup menu after completing basic startup.

Parameter input: Motor brake type, load inertia (unit: 10 ^ -4 kgm ²), and rigidity coefficient need to be entered.

Encoder monitoring: After debugging, it is recommended to activate the encoder monitoring function (P504="ON") to monitor the encoder voltage and signal integrity.

4.4 Manual mode operation

DBG11A supports manual mode for testing. After entering manual mode, the 7-segment code displays "H". At this point, all other digital input functions except for the "controller disable" terminal are disabled. You can control the forward and reverse rotation through the directional keys on the keyboard, and adjust the speed through the up and down keys.

Technical data analysis and selection

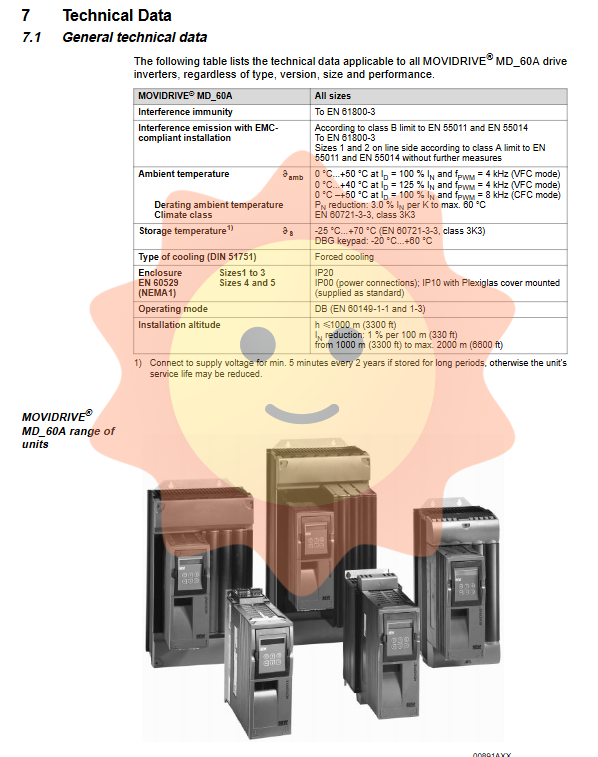

Chapter 7 of the manual provides detailed technical data, which is an important basis for selection calculations. The following key parameters are excerpted for interpretation:

5.1 Typical parameters of 400/500V unit (size 1)

Taking MD_60A0015-5A3 as an example:

Input: 3 × 380-500 VAC, rated input current 3.6 AAC (at 100% load).

Output: Rated power of 2.8 kVA, output current of 4.0 AAC.

Overload capacity: The maximum current limit can reach 150% of the rated current, but the duration is limited by the device's internal Ixt calculation (unit utilization rate).

Braking: The minimum allowable braking resistance is 68 Ω. The manual suggests matching the braking resistor according to the model, such as BW100-005 (trip current 0.8 A).

5.2 Environment and Rating Reduction

Environmental temperature: 0 ° C to+50 ° C (VFC mode, 4kHz carrier frequency). If the ambient temperature exceeds 40 ° C and a 125% overload is required, or if the carrier frequency is increased to 8kHz, the equipment must be downgraded for use, with a typical downgrade of 3.0% I-N per Kelvin.

Altitude: No need to downgrade below 1000 meters; From 1000 meters to 2000 meters, the weight will decrease by 1% for every 100 meters increase.

5.3 Electronic Data Interface

Analog input (X11): AI1 supports 0-10V or -10V-10V, with a resolution of 12 bits. The signal type can be switched through the S11 switch.

Auxiliary voltage output (X10/X13): Provides 24V DC, maximum 200mA per channel. If the external load exceeds the total current of 400mA, an external 24V power supply must be connected to X10:9 (VI24).

Relay output (X10:4-6): The contact capacity is 30V DC/800 mA, which can be used to provide feedback on operating status or fault signals.

Fault diagnosis and maintenance

The Operation and Service chapter defines a standardized troubleshooting process.

6.1 Display and Status Code

7-segment code display: displays hexadecimal status during normal operation. For example, "0" indicates that the inverter is not ready; 4 "represents VFC mode; The flashing 'F' indicates a fault.

DBG11A information: The screen will display specific fault text, such as FAULT xxxx or NOTE xxxx.

6.2 Common Fault Code Analysis

Fault code description triggering mechanism and countermeasures

Reason for overcurrent: output short circuit, excessive motor or damaged output stage.

Countermeasure: Check the insulation and wiring of the motor; Replace the low-power motor for testing.

Reason for DC bus overvoltage: Short deceleration time leads to excessive regenerative energy.

Countermeasure: Extend the deceleration ramp time; Check if the brake resistor wiring is open.

08 n - Monitoring (speed monitoring) reason: encoder connection error or direction reversal; Mechanical blockage.

Countermeasure: Exchange A/A and B/B signal pairs; Check the mechanical load.

Reason for encoder malfunction: Poor shielding contact or broken wire of encoder cable.

Countermeasure: Check the fixing condition of the shielding layer of the Sub-D plug housing.

31 TF/TH sensor response reason: Motor overheating or temperature sensor not connected.

Countermeasure: Cooling the motor; If TF is not connected, it is necessary to short-circuit X10:1-2 or set P835 to "NO RELATED".

6.3 Fault reset mechanism

The manual defines three types of power on/off responses: immediate shutdown, quick stop, and emergency stop. After confirming the fault, it can be reset through the following methods:

Cut off the power and wait for at least 10 seconds before powering it back on.

Use the DBG11A button (P840 manual reset).

Configure automatic reset function (P841="ON"). Attention: In dangerous applications such as lifting, it is strictly prohibited to enable automatic reset to prevent accidental restarts.
