Saia PCD1 Controller Maintenance Guide

Saia PCD1 Controller Maintenance and Selection

In the fields of building automation, HVAC, and small industrial control, the Saia PCD1 series programmable controllers have long occupied a place with their compact size, rich integrated I/O, and flexible communication expansion capabilities. However, as equipment ages, projects upgrade, or spare parts are discontinued, engineers often face practical problems such as model confusion, communication protocol mismatch, insufficient I/O points, and system program migration. This article is based on the PCD1 series technical manual, providing a complete set of technical guidelines that can be directly applied on site from six dimensions: model identification, hardware installation, communication expansion, memory management, typical fault troubleshooting, and maintenance replacement strategies.

Model identification and selection

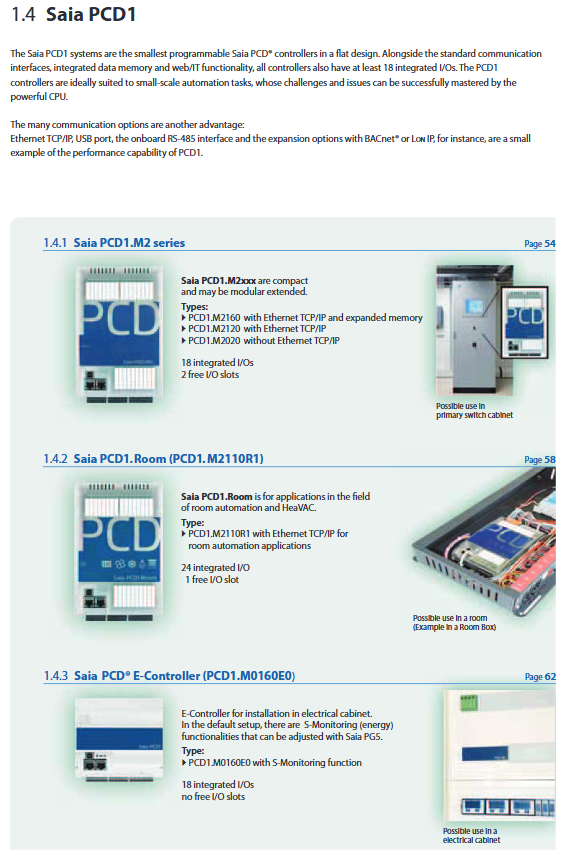

The PCD1 series consists of three main sub series: PCD1.M2xxx Universal Compact, PCD1.Room Specific Room Controller, and PCD1.M0160E0 Energy Monitoring (E-Controller). Correctly distinguishing models is the first step in selection and replacement.

Model Core Features Integrated I/O Expansion Capability Typical Applications

PCD1.M2160 Ethernet+Extended Memory (1MB program/1MB data) 18 (6DI+2AI+4DO+PWM) 2 I/O slots Small Automation, Gateway

PCD1.M2120 Ethernet, 512kB program/128kB data with the same 2 I/O slots standard small control

PCD1.M2020 without Ethernet, 512kB program/128kB data with the same 2 I/O slots for low cost and independent control

PCD1.M2110R1 room automation dedicated, 24 I/O (including 4 AI and 2 AO), 24 1 I/O slot, fan coil unit, lighting, sunshade

PCD1.M0160E0 pre installed S-Monitoring energy monitoring, 1MB program/1MB data 18 no I/O slots, only 1 communication slot Distribution cabinet, energy consumption collection

Key selection points:

Program and Data Memory: M2160 provides 1MB program+1MB data+128MB file system, suitable for complex algorithms and large amounts of recipe data; M2020/M2120 is 512kB+128kB+8MB, suitable for small and medium-sized logic.

Communication interface: For Ethernet networking or web access, M2160/M2120/M2110R1/M0160E0 (both integrated with dual port Ethernet switches) must be selected. M2020 cannot directly access IP networks relying solely on RS-485.

I/O points: M2110R1 has 4 analog inputs (14 bit resolution) and 2 analog outputs, which are very suitable for room temperature and pressure regulation; Although M0160E0 does not have an expansion slot, it comes with 4 configurable digital I/O channels (default set as input) and 2 analog inputs (pre configured as Ni1000).

Installation space: M0160E0 size 142 × 142 × 60mm, occupying only one DIN rail; M2xxx and M2110R1 have dimensions of 142 × 226 × 49mm and require two 35mm guide rails or flat installation.

Hardware installation and wiring specifications

2.1 Power Supply and Grounding

Supply voltage: 24V DC, allowable range -20%/+25% (i.e. 19.2-30V DC), including 5% ripple. A regulated power supply must be used to avoid sharing the same circuit with inductive loads.

Power consumption: Typical 12W. The internal 5V bus provides a maximum of 500mA, and the 24V auxiliary output provides a maximum of 200mA. When designing the system, the total current of the expansion module needs to be calculated and must not exceed this capacity.

Battery: CR2032 lithium battery (model 4 507 4817 0), with a lifespan of 1-3 years. Used for backing up real-time clocks and maintaining data. When the battery voltage is low, the PG5 software or controller status light will prompt.

2.2 Key points of I/O wiring

Digital input: 6 channels (2 of which can be used as interrupt input), voltage range of 15-30V DC, input filtering time can be selected as 8ms or 0.2ms (configured through DIP switch or software). When wiring, pay attention to the common terminal being 0V of X3.

Digital output: 4-channel transistor output, 24V DC/0.5A, suitable for relays, indicator lights, and small solenoid valves. PWM output 1 channel, 24V/0.2A, can be used for dimming or heating control.

Analog input: 2 channels (M2xxx/M0160E0) or 4 channels (M2110R1), signal type can be selected through DIP switch or PGS software:

-10～+10V DC

0~+20mA or 4~20mA

Pt1000, Ni1000, Ni1000 L&S (temperature sensors)

0-2.5k Ω resistor

Resolution of 12 bits (M2xxx) or 14 bits (EA1 module of M2110R1). For temperature sensors, it is necessary to connect them in a three wire or two-wire system according to the manual and enable internal bias.

Watchdog relay: The X3 terminal provides a set of normally open contacts, 48V AC/DC, 1A. During normal operation, the coil is engaged; When the CPU fails or loses power, it can be released and used for external safety circuits.

2.3 Installation precautions

M2xxx/M2110R1: Use 2 35mm DIN rails (spaced 35mm apart) or install flat. Reserve space above for heat dissipation.

M0160E0: When installed inside the distribution cabinet, it is recommended to use elbows or flexible Ethernet cables (such as SlimWire PRO), otherwise the cabinet door may not be able to close. Reserve 55mm above the guide rail and 75mm below.

All plug-in terminals (X0~X3) have clear labels (0-10, 11-19, etc.), and the terminal numbers must be checked before wiring.
