Saia PCD1 Controller Maintenance Guide

Saia PCD1 Controller Maintenance and Selection

In the fields of building automation, HVAC, and small industrial control, the Saia PCD1 series programmable controllers have long occupied a place with their compact size, rich integrated I/O, and flexible communication expansion capabilities. However, as equipment ages, projects upgrade, or spare parts are discontinued, engineers often face practical problems such as model confusion, communication protocol mismatch, insufficient I/O points, and system program migration. This article is based on the PCD1 series technical manual, providing a complete set of technical guidelines that can be directly applied on site from six dimensions: model identification, hardware installation, communication expansion, memory management, typical fault troubleshooting, and maintenance replacement strategies.

Model identification and selection

The PCD1 series consists of three main sub series: PCD1.M2xxx Universal Compact, PCD1.Room Specific Room Controller, and PCD1.M0160E0 Energy Monitoring (E-Controller). Correctly distinguishing models is the first step in selection and replacement.

Model Core Features Integrated I/O Expansion Capability Typical Applications

PCD1.M2160 Ethernet+Extended Memory (1MB program/1MB data) 18 (6DI+2AI+4DO+PWM) 2 I/O slots Small Automation, Gateway

PCD1.M2120 Ethernet, 512kB program/128kB data with the same 2 I/O slots standard small control

PCD1.M2020 without Ethernet, 512kB program/128kB data with the same 2 I/O slots for low cost and independent control

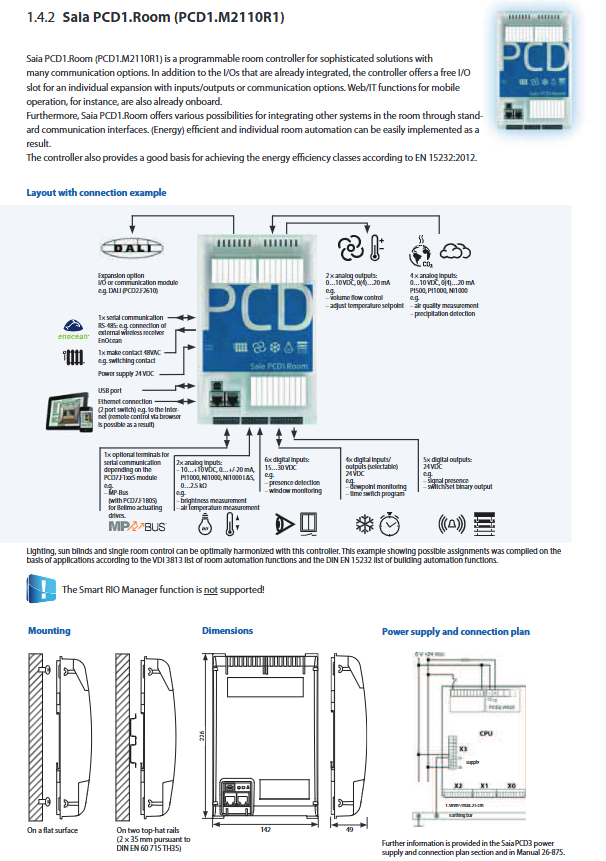

PCD1.M2110R1 room automation dedicated, 24 I/O (including 4 AI and 2 AO), 24 1 I/O slot, fan coil unit, lighting, sunshade

PCD1.M0160E0 pre installed S-Monitoring energy monitoring, 1MB program/1MB data 18 no I/O slots, only 1 communication slot Distribution cabinet, energy consumption collection

Key selection points:

Program and Data Memory: M2160 provides 1MB program+1MB data+128MB file system, suitable for complex algorithms and large amounts of recipe data; M2020/M2120 is 512kB+128kB+8MB, suitable for small and medium-sized logic.

Communication interface: For Ethernet networking or web access, M2160/M2120/M2110R1/M0160E0 (both integrated with dual port Ethernet switches) must be selected. M2020 cannot directly access IP networks relying solely on RS-485.

I/O points: M2110R1 has 4 analog inputs (14 bit resolution) and 2 analog outputs, which are very suitable for room temperature and pressure regulation; Although M0160E0 does not have an expansion slot, it comes with 4 configurable digital I/O channels (default set as input) and 2 analog inputs (pre configured as Ni1000).

Installation space: M0160E0 size 142 × 142 × 60mm, occupying only one DIN rail; M2xxx and M2110R1 have dimensions of 142 × 226 × 49mm and require two 35mm guide rails or flat installation.

Hardware installation and wiring specifications

2.1 Power Supply and Grounding

Supply voltage: 24V DC, allowable range -20%/+25% (i.e. 19.2-30V DC), including 5% ripple. A regulated power supply must be used to avoid sharing the same circuit with inductive loads.

Power consumption: Typical 12W. The internal 5V bus provides a maximum of 500mA, and the 24V auxiliary output provides a maximum of 200mA. When designing the system, the total current of the expansion module needs to be calculated and must not exceed this capacity.

Battery: CR2032 lithium battery (model 4 507 4817 0), with a lifespan of 1-3 years. Used for backing up real-time clocks and maintaining data. When the battery voltage is low, the PG5 software or controller status light will prompt.

2.2 Key points of I/O wiring

Digital input: 6 channels (2 of which can be used as interrupt input), voltage range of 15-30V DC, input filtering time can be selected as 8ms or 0.2ms (configured through DIP switch or software). When wiring, pay attention to the common terminal being 0V of X3.

Digital output: 4-channel transistor output, 24V DC/0.5A, suitable for relays, indicator lights, and small solenoid valves. PWM output 1 channel, 24V/0.2A, can be used for dimming or heating control.

Analog input: 2 channels (M2xxx/M0160E0) or 4 channels (M2110R1), signal type can be selected through DIP switch or PGS software:

-10～+10V DC

0~+20mA or 4~20mA

Pt1000, Ni1000, Ni1000 L&S (temperature sensors)

0-2.5k Ω resistor

Resolution of 12 bits (M2xxx) or 14 bits (EA1 module of M2110R1). For temperature sensors, it is necessary to connect them in a three wire or two-wire system according to the manual and enable internal bias.

Watchdog relay: The X3 terminal provides a set of normally open contacts, 48V AC/DC, 1A. During normal operation, the coil is engaged; When the CPU fails or loses power, it can be released and used for external safety circuits.

2.3 Installation precautions

M2xxx/M2110R1: Use 2 35mm DIN rails (spaced 35mm apart) or install flat. Reserve space above for heat dissipation.

M0160E0: When installed inside the distribution cabinet, it is recommended to use elbows or flexible Ethernet cables (such as SlimWire PRO), otherwise the cabinet door may not be able to close. Reserve 55mm above the guide rail and 75mm below.

All plug-in terminals (X0~X3) have clear labels (0-10, 11-19, etc.), and the terminal numbers must be checked before wiring.

Communication interface and protocol extension

One major advantage of the PCD1 series is the integration of multiple communication interfaces and the ability to support building automation protocols such as BACnet, Lon, M-Bus, DALI through expansion modules.

3.1 Onboard Communication

Ethernet: Dual port switch, 10/100Mbit/s, full duplex, automatic crossover. Support web servers FTP、 Email, SNMP, and Automation Server functions allow direct access to controller status and data through a browser.

USB: USB 1.1 device, 12Mbit/s, used for downloading PG5 programming software programs, and can also be used as a virtual serial port.

RS-485: Terminal X3, up to 115kbit/s, supports Modbus RTU master/slave, S-Bus (Saia's own bus), etc. S-Bus can be used to connect up to 10 RIO modules (such as PCD7, L200/L210).

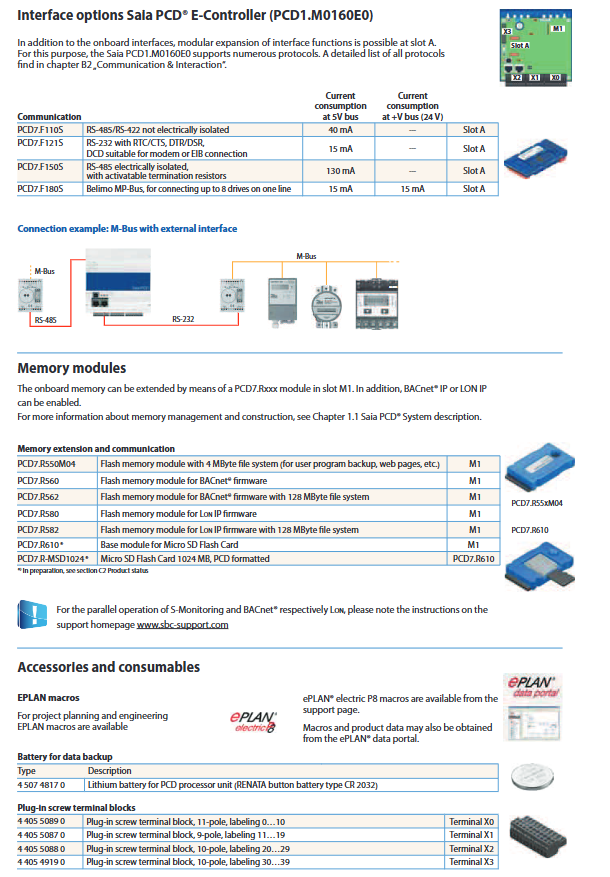

3.2 Extended Communication Module (Slot A or I/O Slot)

The expansion capability of PCD1 is achieved through the following modules:

Module model, function, current consumption, applicable slot position

PCD7.F1105 RS-485/422 Non isolated 40mA (5V) Slot A

PCD7. F1215 RS-232 (full signal) suitable for modem/EIB 15mA Slot A

PCD7. F1505 RS-485 isolation, can activate terminal resistor 130mA Slot A

PCD7. F1805 Belimo MP Bus (up to 8 actuators) 15mA (5V)+15mA (24V) Slot A

PCD2. F2100 RS-422/485+optional PCD7. F1xS 110mA I/O 0/1

PCD2.F2150 BACnet MS/TP RS‑485 110mA I/O 0/1

PCD2.F2210 RS‑232 90mA I/O 0/1

PCD2.F2400 LonWorks ® Interface 90mA I/O 0/1

PCD2.F2610 DALI Master Station (up to 64 devices) 90mA I/O 0/1

PCD2. F27x0 M-Bus master station (2 channels) 70mA (5V)+8mA (24V) I/O 0/1

PCD2.F2810 Belimo MP-Bus+optional PCD7.F1xS 90mA (5V)+15mA (24V) I/O 0/1

Important limitations:

M2xxx can accommodate up to 2 PCD2.F2xxx modules (occupying I/O 0 and I/O 1), with each module providing up to 2 interfaces.

M2110R1 (Room) only has I/O slot 0 available, with a maximum of 1 PCD2.F2xxx module.

M0160E0 does not have an I/O expansion slot, but Slot A can accommodate PCD7.F1xxx communication modules.

3.3 Memory Expansion and Protocol Activation

Slot M1 can be used to insert flash modules, expand file systems, or activate advanced protocols:

Module functionality

PCD7.R550M04 4MB file system (program backup, web storage)

PCD7.R560 BACnet ®  IP firmware

PCD7.R562 BACnet ®  IP+128MB file system

PCD7.R580 Lon IP firmware

PCD7.R582 Lon IP+128MB file system

PCD7.R610 Micro SD Card Base (to be compatible with SD card)

Note: After activation of BACnet IP or Lon IP, the controller can function as a BACnet/IP server or Lon IP node and be directly integrated into the building management system.

Typical troubleshooting

4.1 Controller unable to start (PWR light not on)

Reason: Power failure, short circuit, battery failure.

Troubleshooting:

Measure whether the voltage at the 24V input terminal is within the range of 19.2-30V.

Disconnect all external loads and check for short circuits on the internal 5V and 24V buses.

Replace the CR2032 battery (after power failure, pay attention to polarity).

4.2 Ethernet communication failure

Reason: IP address conflict, cable damage, switch port failure.

handle:

Use PG5 software or web interface to check IP address and subnet mask.

Confirm the use of crossover/direct cable adaptation (dual port switch supports automatic crossover).

Check the Link/ACT indicator light on the Ethernet port.

4.3 Abnormal analog input readings

Reason: Incorrect signal type setting, incorrect sensor wiring, incorrect DIP switch position.

handle:

Check if the DIP switch on terminal X1 matches the selected signal (voltage/current/resistance).

For Ni1000/Pt1000, a three wire connection must be used to eliminate line resistance errors.

Enter PG5 online monitoring to check if the original AD value has changed.

4.4 No response from digital output

Reason: Output overload, transistor breakdown, program logic error.

Troubleshooting:

Measure the output terminal for 0V voltage, which should be 24V when turned on. If there is no voltage, check the output common terminal (COM of X0).

Disconnect the load and use a multimeter to measure for a short circuit between the output terminal and COM in the resistance range.

Check if the output point is repeatedly assigned values or forced to 0 in the program.

4.5 Communication expansion module does not work

Reason: Module not inserted correctly, address conflict, missing terminal resistance.

handle:

For RS-485 networks, ensure that the end devices enable terminal resistors (PCD7. F1505 can be activated).

Check if the current consumption of the module exceeds the bus capacity (maximum 500mA for 5V bus).

Use the hardware configuration tool of PG5 to check if the module is recognized.

Maintenance and replacement strategy

5.1 Data Backup

The user program, webpage files, and data of PCD1 can be stored in internal Flash or external flash modules. Recommend the following backup methods:

Upload the program to the computer through the PG5 software 'Upload'.

Regularly write important recipe data to an SD card (requiring a PCD7.R610 base) or export CSV files from the file system via FTP.

Before replacing the controller, use PCD7.R550M04 to copy the entire file system.

5.2 Battery replacement

When the controller clock is inaccurate or the retention data is lost, the CR2032 battery needs to be replaced. Steps:

Disconnect the power supply.

Open the battery compartment cover (located on the front or side).

Remove the old battery and immediately install a new battery (model CR2032, recommended to use Renata or Panasonic).

Reset the date and time after powering on.

5.3 Replacement of discontinued models

If PCD1.M2020 (without Ethernet) is discontinued, M2120 (with Ethernet added) can be used and network functions can be disabled without any program changes. If PCD1.M2110R1 is discontinued, M2160 can be used in combination with a dedicated analog expansion module (such as PCD7.W600) and a PCD2.Fxxxxx communication module to simulate the original room controller function, but some I/O mappings need to be rewritten.

Program compatibility: PG5 programming software supports all PCD1 series, simply change the CPU type in project settings, compile and download. Pay attention to the differences in memory capacity between different models: when migrating from M2020 to M2160, the original program can run directly; Reverse migration requires ensuring that the program does not exceed 512kB.

5.4 Firmware Upgrade

New features or bug fixes are implemented through system firmware updates. Use PG5's' System Firmware Update 'tool to load the. s19 file via USB or Ethernet. Before upgrading, it is necessary to backup the user program.
