Schneider C60H-DC DC DC Protector Essentials: A Comprehensive Analysis from Selection to On site Troubleshooting

Overload and short circuit protection of DC circuits is crucial in industrial control, automation equipment, transportation, and renewable energy systems. Unlike AC circuits, extinguishing DC arcs is more difficult, and incorrect polarity connections may cause serious accidents. The C60H-DC series DC Supplementary Protector is designed specifically for DC circuits, integrating short-circuit protection, overload protection, control, and isolation functions, and complies with UL1077 and IEC60947-2 standards. This article will provide a complete technical reference for on-site engineers from the aspects of product characteristics, technical parameters, selection points, polarity wiring, pole configuration under different grounding systems, fault analysis, and tripping curve interpretation.

Product positioning and core features

C60H-DC belongs to the category of "Supplementary Protectors", usually installed on the downstream equipment side to provide additional protection for feeders or distribution systems. Its core features include:

Dual voltage level: Provides two voltage withstand levels of 12... 250V DC and 12... 500V DC, corresponding to single pole (1P) and double pole (2P) products, respectively.

C-type tripping curve: The magnetic tripping action range is 7-10 times the rated current (8.5In ± 20%), which balances certain surge resistance and fast short-circuit protection, and is suitable for the vast majority of DC loads.

Positive pole disconnection indication: When all poles are disconnected, the green indicator strip on the handle is clearly visible, ensuring complete isolation of downstream circuits and ensuring the safety of maintenance personnel.

Quick closing mechanism: The handle operation speed does not affect the contact closing speed, effectively extending the electrical life.

Current limiting capability: In the event of a fault, the contacts quickly open, limiting the peak short-circuit current and protecting downstream loads from damage.

Compliant with isolation standards: Meets the requirements of IEC/EN 60947-2 for isolators.

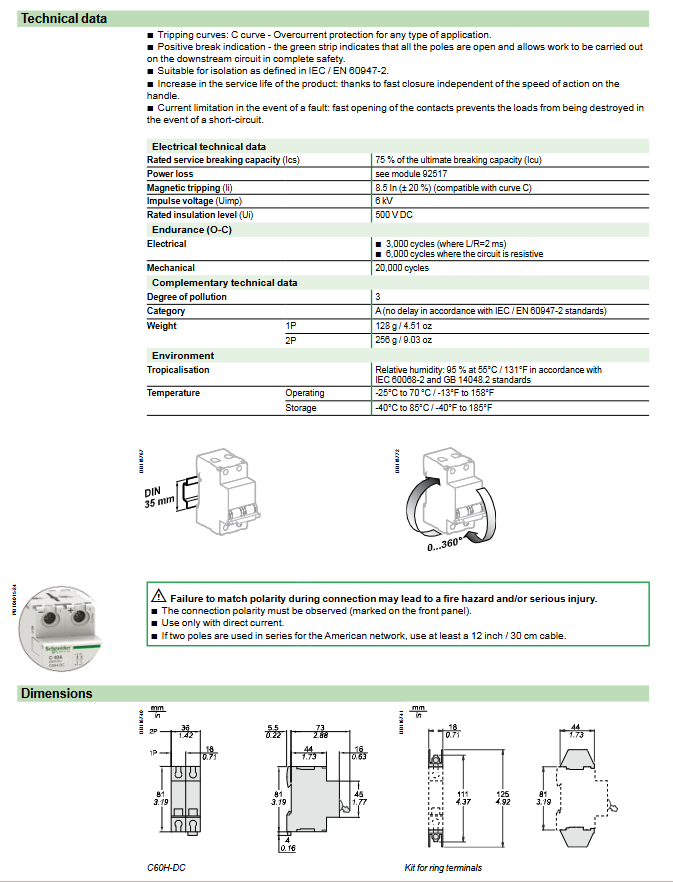

Quick search of technical parameters

1. Electrical parameters

Parameters 250V DC version 500V DC version

Rated operating voltage (Ue) 12... 250V DC 12... 500V DC

Rated insulation voltage (Ui) 500V DC 500V DC

Rated impulse withstand voltage (Uimp) 6kV 6kV

Breaking capacity (Icu) 5kA/250V DC 5kA/500V DC

Operating short-circuit breaking capacity (Ics) 75% Icu 75% Icu

Magnetic release threshold 8.5In ± 20% 8.5In ± 20%

Electrical lifespan 3000 times (L/R=2ms)/6000 times (resistive) same as left

Mechanical lifespan 20000 cycles 20000 cycles

2. Environmental parameters

Working temperature: -25 ° C to+70 ° C

Storage temperature: -40 ° C to+85 ° C

Relative humidity: 95% at 55 ° C (compliant with IEC 60068-2)

Pollution level: 3

Category: Class A (no delay, compliant with IEC/EN 60947-2)

3. Rated current specification (25 ° C)

The product covers 0.5A to 63A and is divided into two calibration series: UL1077 and IEC60947. Typical models include MGN61500 (0.5A, 1P, 250V), MGN61520 (0.5A, 2P, 500V), etc. It should be noted that the current rating is based on an ambient temperature of 25 ° C, and the derating curve (see module 92515) should be referred to when using at high temperatures.

Selection guide: Matching of pole number and voltage

The core selection criteria for C60H-DC are system voltage, grounding method, and fault current path.

1. Basic principles for pole selection

Un ≤ 250V DC: Single pole (1P) or bipolar (2P) can be used. If a single pole is used, only the positive pole (L+) is protected, and the negative pole (L -) is not protected.

250V<Un ≤ 500V DC: Bipolar (2P) must be used to protect both positive and negative poles.

2. Pole configuration under different grounding systems

Select the number of protective poles based on the system grounding type (power grounding, load grounding, ungrounded, etc.) to ensure reliable disconnection in any fault type.

The grounding method for network types should protect polarity and recommend the number of poles

The grounding system has a unipolar grounding (such as negative grounding) that only protects the polarity (negative) or bipolar 1P or 2P

Grounding system center point grounding bipolar 2P

Non grounded system (IT) isolated bipolar 2P (with insulation monitor)

Important principle: The breaking capacity of all protected poles must be greater than the maximum short-circuit current (Isc max) that may occur at that position.

3. Increasing the number of poles in series to enhance the breaking ability

For the commonly used bipolar series connection in the US market (such as two 1P series connections), attention should be paid to:

When used in series, the power supply sides of the two poles must come from the same polarity.

Maintain a cable distance of at least 30cm (12 inches) between the two poles to avoid electromagnetic interference.

The overall breaking ability remains unipolar (not doubled).

Polarity Wiring: Life or Death Details

Warning: Reverse polarity in DC circuits may cause fire or serious personal injury. The front panel of C60H-DC is clearly marked with "+" and "-" polarity. Strict adherence must be observed during wiring.
