Schneider C60H-DC DC DC Protector Essentials: A Comprehensive Analysis from Selection to On site Troubleshooting

Overload and short circuit protection of DC circuits is crucial in industrial control, automation equipment, transportation, and renewable energy systems. Unlike AC circuits, extinguishing DC arcs is more difficult, and incorrect polarity connections may cause serious accidents. The C60H-DC series DC Supplementary Protector is designed specifically for DC circuits, integrating short-circuit protection, overload protection, control, and isolation functions, and complies with UL1077 and IEC60947-2 standards. This article will provide a complete technical reference for on-site engineers from the aspects of product characteristics, technical parameters, selection points, polarity wiring, pole configuration under different grounding systems, fault analysis, and tripping curve interpretation.

Product positioning and core features

C60H-DC belongs to the category of "Supplementary Protectors", usually installed on the downstream equipment side to provide additional protection for feeders or distribution systems. Its core features include:

Dual voltage level: Provides two voltage withstand levels of 12... 250V DC and 12... 500V DC, corresponding to single pole (1P) and double pole (2P) products, respectively.

C-type tripping curve: The magnetic tripping action range is 7-10 times the rated current (8.5In ± 20%), which balances certain surge resistance and fast short-circuit protection, and is suitable for the vast majority of DC loads.

Positive pole disconnection indication: When all poles are disconnected, the green indicator strip on the handle is clearly visible, ensuring complete isolation of downstream circuits and ensuring the safety of maintenance personnel.

Quick closing mechanism: The handle operation speed does not affect the contact closing speed, effectively extending the electrical life.

Current limiting capability: In the event of a fault, the contacts quickly open, limiting the peak short-circuit current and protecting downstream loads from damage.

Compliant with isolation standards: Meets the requirements of IEC/EN 60947-2 for isolators.

Quick search of technical parameters

1. Electrical parameters

Parameters 250V DC version 500V DC version

Rated operating voltage (Ue) 12... 250V DC 12... 500V DC

Rated insulation voltage (Ui) 500V DC 500V DC

Rated impulse withstand voltage (Uimp) 6kV 6kV

Breaking capacity (Icu) 5kA/250V DC 5kA/500V DC

Operating short-circuit breaking capacity (Ics) 75% Icu 75% Icu

Magnetic release threshold 8.5In ± 20% 8.5In ± 20%

Electrical lifespan 3000 times (L/R=2ms)/6000 times (resistive) same as left

Mechanical lifespan 20000 cycles 20000 cycles

2. Environmental parameters

Working temperature: -25 ° C to+70 ° C

Storage temperature: -40 ° C to+85 ° C

Relative humidity: 95% at 55 ° C (compliant with IEC 60068-2)

Pollution level: 3

Category: Class A (no delay, compliant with IEC/EN 60947-2)

3. Rated current specification (25 ° C)

The product covers 0.5A to 63A and is divided into two calibration series: UL1077 and IEC60947. Typical models include MGN61500 (0.5A, 1P, 250V), MGN61520 (0.5A, 2P, 500V), etc. It should be noted that the current rating is based on an ambient temperature of 25 ° C, and the derating curve (see module 92515) should be referred to when using at high temperatures.

Selection guide: Matching of pole number and voltage

The core selection criteria for C60H-DC are system voltage, grounding method, and fault current path.

1. Basic principles for pole selection

Un ≤ 250V DC: Single pole (1P) or bipolar (2P) can be used. If a single pole is used, only the positive pole (L+) is protected, and the negative pole (L -) is not protected.

250V<Un ≤ 500V DC: Bipolar (2P) must be used to protect both positive and negative poles.

2. Pole configuration under different grounding systems

Select the number of protective poles based on the system grounding type (power grounding, load grounding, ungrounded, etc.) to ensure reliable disconnection in any fault type.

The grounding method for network types should protect polarity and recommend the number of poles

The grounding system has a unipolar grounding (such as negative grounding) that only protects the polarity (negative) or bipolar 1P or 2P

Grounding system center point grounding bipolar 2P

Non grounded system (IT) isolated bipolar 2P (with insulation monitor)

Important principle: The breaking capacity of all protected poles must be greater than the maximum short-circuit current (Isc max) that may occur at that position.

3. Increasing the number of poles in series to enhance the breaking ability

For the commonly used bipolar series connection in the US market (such as two 1P series connections), attention should be paid to:

When used in series, the power supply sides of the two poles must come from the same polarity.

Maintain a cable distance of at least 30cm (12 inches) between the two poles to avoid electromagnetic interference.

The overall breaking ability remains unipolar (not doubled).

Polarity Wiring: Life or Death Details

Warning: Reverse polarity in DC circuits may cause fire or serious personal injury. The front panel of C60H-DC is clearly marked with "+" and "-" polarity. Strict adherence must be observed during wiring.

Single pole (1P): usually protects the positive pole (L+). The "+" on the power side is connected to the positive input, and the "+" on the load side is connected to the positive output. The negative electrode (L -) is directly connected without passing through a protector.

Bipolar (2P): Simultaneously protect the positive and negative poles. The "+/-" on the power side correspond to positive and negative inputs, while the "+/-" on the load side correspond to outputs. Cross wiring is strictly prohibited.

Allowable power supply direction: The 250V DC version allows power supply from top or bottom, but polarity must be observed; The 500V DC version only allows power supply from the upper end (marked as' Supply from above ').

Consequences of malfunction: If the polarity is reversed, when a short circuit occurs, the arc cannot be extinguished normally, which may cause the protector to burn out or even catch fire. Therefore, it is necessary to confirm the polarity with a multimeter after wiring.

Fault analysis and on-site troubleshooting

The fault tripping of C60H-DC can be divided into two categories: overload tripping (thermal tripping) and short-circuit tripping (magnetic tripping). On site engineers should make quick judgments based on load characteristics and fault phenomena.

1. Fault types and corresponding trip characteristics

Possible causes of malfunction, characteristics of trip time, inspection steps

Immediately trip downstream short circuit after closing (<10ms), disconnect the load, measure the resistance on the load side with a multimeter, and investigate the short circuit point

After running for a period of time, trip and overload for a few seconds to a few minutes (inverse time limit), and measure whether the load current exceeds the rated value; Check for high temperature derating

Occasional tripping, irregular surge current, and unstable motor start-up to confirm load type; If it is an inductive load, it may be considered to choose a higher rated value or use a K-type trip curve (non-C type)

The fault of the handle being in the middle position after tripping has not been cleared - pull the handle to OFF and then push it to ON to reset

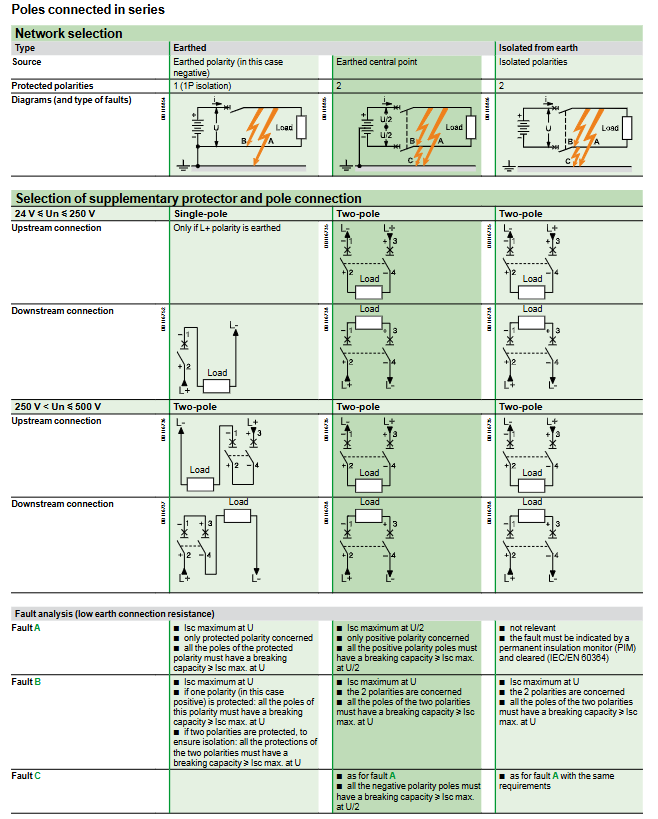

2. Fault Analysis of Breaking Requirements under Different Grounding Faults

According to the system grounding method, short-circuit faults may occur between different poles. The manual provides analysis of three typical faults (A, B, C):

Fault A: Monopolar short circuit to ground. At this time, the short-circuit current is U/2 (center point grounded) or U (unipolar grounded). Only the pole on the protected pole needs to have sufficient breaking ability.

Fault B: Short circuit between the two poles. The short-circuit current is U, and both poles pass through the short-circuit current. All protected poles must have a breaking ability of ≥ Isc max.

Fault C: The other polarity is short circuited to ground. Similar to fault A.

In an ungrounded system (IT system), the first single pole grounding fault only generates a small capacitive current and does not trigger a protector trip, but must be alarmed by a permanent insulation monitor (PIM) and manually cleared.

3. Common on-site problems and solutions

Problem 1: The protector trips incorrectly when the motor starts

The starting current of the motor can reach 6-8 times the rated current, and the starting point of the C-type magnetic trip is 7In, which can theoretically withstand it. If it still trips incorrectly, it may be due to excessive start-up time (thermal accumulation) or frequent motor start-up. Solution: Increase the rated current appropriately (considering derating), or replace with a higher rated protector.

Problem 2: Multiple protectors share the same power supply, and when one circuit is short circuited, the other circuits also trip

It may be due to excessive internal resistance of the power supply or voltage drop in the circuit that causes a brief voltage drop, triggering undervoltage tripping of other protectors (if any). C60H-DC itself does not have undervoltage tripping, but if undervoltage coil accessories (MN) are installed, the accessory settings need to be checked.

Problem 3: Frequent overload tripping in high temperature environment

The rated current of C60H-DC is based on 25 ° C, and it needs to be downgraded for use at 70 ° C (see module 92515 for details). If the ambient temperature is high, a higher rated current model should be selected, or ventilation and heat dissipation should be improved.

Interpretation of the Release Curve

C60H-DC adopts a C-type trip curve, which complies with the IEC 60947-2 standard. The curve is divided into two parts:

Hot trip zone (overload protection): inverse time characteristic. When the current reaches 1.13In~1.45In, it will operate for a certain period of time (up to 1 hour). The larger the current, the shorter the action time.

Magnetic release zone (short circuit protection): instantaneous action. The operating current range is 7In~10In, with a typical value of 8.5In ± 20%. When the current reaches 7 times the rated current, it may start to operate, and when it reaches 10 times, it is guaranteed to operate.

Key points of engineering application:

For purely resistive loads such as heaters, the C-curve can provide good protection.

For capacitive loads (such as switch mode power supplies), the starting surge may reach up to 20 times the rated current, and the C-curve may trip incorrectly. In this case, a D-type or higher multiple protector should be selected (but this series only has the C-curve, please note).

For inductive loads such as DC motors and solenoid valves, the starting current is usually 6-8 times, and the C-curve is generally applicable.

Attachments and Extended Applications

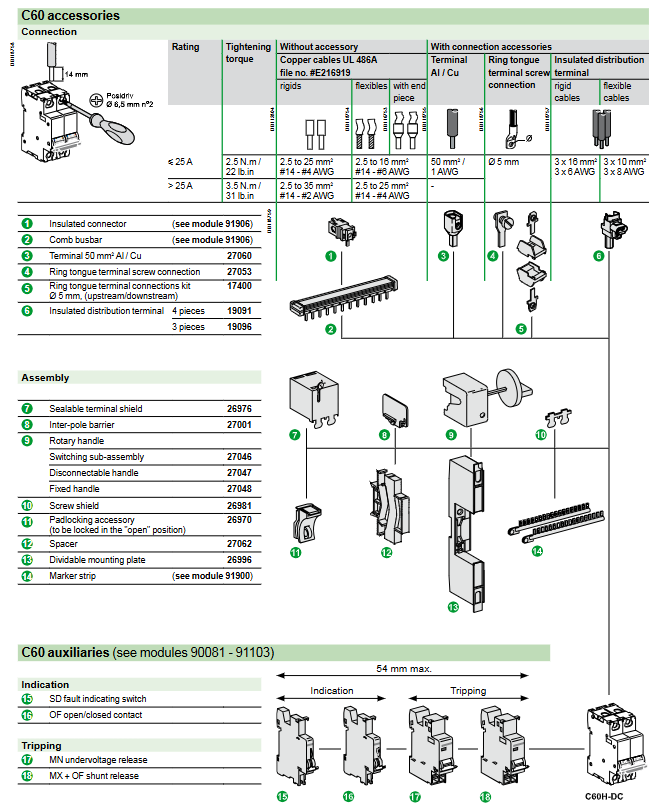

C60H-DC can be equipped with various electrical accessories (see modules 90081-91103), including:

Auxiliary contact (SD): Used for remote indication of the on/off status of the protector.

Alarm contact: Provide a signal when the fault trips.

Split release (MX): Remote control tripping.

Undervoltage release (MN): Automatically trips when the voltage is too low.

When installing accessories, they must be installed on the left side of the circuit breaker, with a total width not exceeding 54mm. If both SD auxiliary contacts and shunt release are used, the SD should be installed on the left side, and the shunt release should be installed on the left side of the SD.
