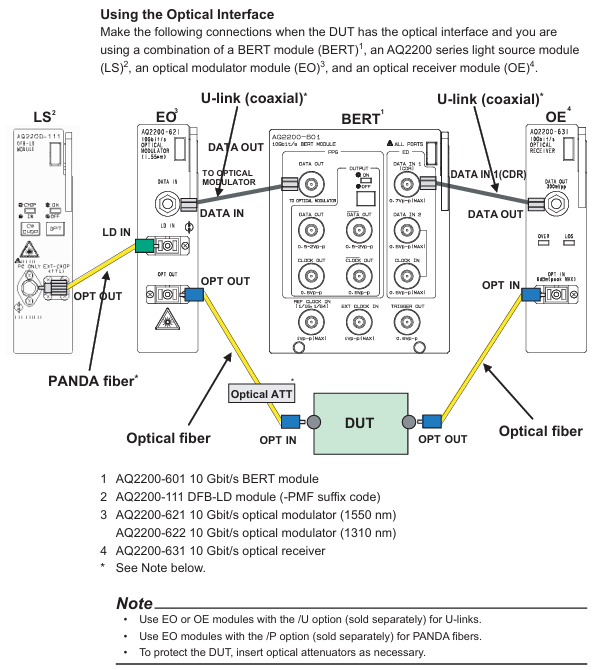

YOKOGAWA AQ2200 Series Multi Application Testing System

来源: | 作者:FAN | 发布时间 :2025-11-06 | 8 次浏览: | Share:

Key error codes

Error code description and solution measures

1014 frame controller and module firmware version do not match. Update firmware to the latest version (contact dealer for information)

1100 laser output locking connection interlock plug, unlocking laser output

1266 Input power exceeds the maximum limit and reduces input power to the specified range (refer to module parameters)

Fault contact preparation: The instrument model, serial number, firmware version, operating steps at the time of the fault, and screen display need to be provided


Firmware update

7.1 Frame Controller Firmware Update

preparation

Download the latest firmware, rename it to "aq221xlz. bin", and place it in the USB root directory

Disconnect all external devices and only retain USB (direct connection, not through Hub)

Update steps

Turn off the power of the frame controller and plug in the USB

Press and hold the soft key at the top of the front panel, while pressing the POWER switch to turn on the device

The screen displays the update progress, and after completion, it prompts "Flash Update Complete", and the instrument automatically restarts

After restarting, remove the USB and confirm the version by pressing SYSTEM → Soft Version View

7.2 Module firmware update

preparation

Download the latest firmware of the module and place it in the "module" folder on the USB (without renaming)

Insert the USB into the USB Type A port on the front panel of the frame controller

Update steps

Press the SYSTEM key → move the cursor to "Module Update" → press ENTER

Use the arrow keys to select the module that needs to be updated (the checkbox turns black) → Press the 'Update Execut' soft key

Display update status (Executing/Complete/Failed), prompt "Please Restart System" after completion

Restart the frame controller and confirm that the module version update is successful
