Core components of the product

Frame controller: 2 models, responsible for accommodating and controlling modules

AQ2211 (Model 735101): 3 module slots

AQ2212 (Model 735102): 9 module slots

Measurement module: covering the entire process of optical testing, the main types are as follows

Light source module: AQ2200-111（DFB-LD）、AQ2200-112（LS）、AQ2200-141/142（FP-LD）、AQ2200-131/132（Grid TLS）、AQ2200-136（TLS）

Optical sensor module: AQ2200-201/202 (interface module), AQ2200-231/232/241/242 (optical sensor head), AQ2200-211/212/215/221/222 (sensor module)

Other modules: attenuator (AQ2200-311/311A/312/331/332/342), optical switch (AQ2200-411/412/421), BERT (AQ2200-601), optical modulator (AQ2200-621/622), optical receiver (AQ2200-631), etc

Unpacking inspection and installation preparation

3.1 Open box inspection checklist

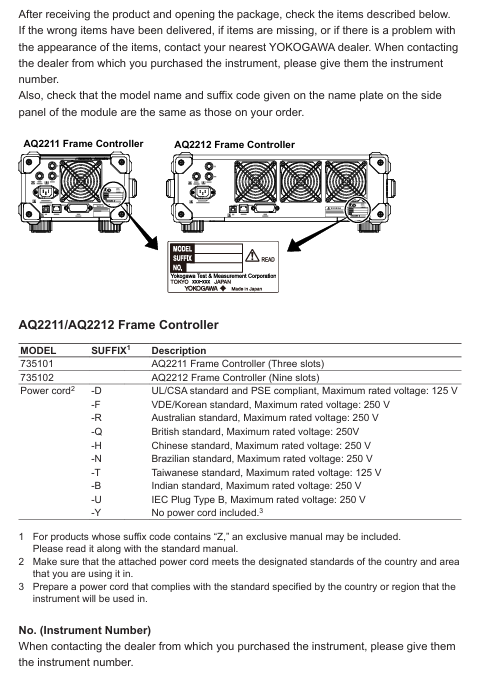

Frame controller: Confirm that the model (AQ2211/AQ2212), side nameplate are consistent with the order, and there are no scratches/damages on the appearance

Power cord: Match regional standards according to suffix codes, with the following key parameters

Standard rated voltage of suffix code

- UL/CSA、PSE 125V

04R VDE/Korean 250V

-Q British 250V

-Chinese standard 250V

-Brazilian standard 250V

-Taiwan standard 125V

Standard accessories (not covered by warranty)

Interlocking plug (A1288JA, 1 piece), rubber foot pad (A9088ZM, 1 set)

Printed manuals: IM 735101-01EN (start-up guide), IM 735101-73Z2 (download guide), PIM 113-01Z2 (global contact information), etc

Optional accessories (purchased separately)

Accessory Name Model/Part No. Specification

Blank panel AQ2200-901 1-slot size, covering empty slots

AQ2211 Rack Kit 735182-03 Installation of 1 AQ2211 to EIA Standard Rack Left

AQ2212 Rack Kit 735182-09 Installation of 1 AQ2212 to EIA Standard Rack

3.2 Installation Environment and Requirements

environmental conditions

Temperature: 5-40 ℃ (working), -20~60 ℃ (storage)

Humidity: 20~80% RH (no condensation, consistent with operation and storage)

Altitude: working ≤ 2000m, storage ≤ 3000m

Prohibited environment: direct sunlight, strong magnetic field, high static electricity, corrosive gases, severe vibration

Space requirements: Ensure ventilation and avoid internal overheating

Left and right sides: each ≥ 5cm

Rear: ≥ 10cm (exhaust hole)

Above/Below: Reserve cable connection space

Rack installation steps (kit required)

Disassemble the handles on both sides of the instrument (AQ2211, remove the left side)

Remove the bottom 4 foot pads

Remove the sealing tape at the mounting hole of the rack

Apply new sealing tape to cover the mounting holes of the foot pad/handle

Install the rack kit and secure the instrument to the rack

Core security standards

4.1 Electrical Safety (Warning Level)

Power requirements

Designated power cords must be used, with voltage matching the rated value of the instrument (100-240VAC). Exceeding the maximum voltage of the power cord (such as UL/CSA 125V, VDE 250V) is prohibited

The power plug must be inserted into a three core socket with protective grounding, and the use of ungrounded extension cords is prohibited

grounding protection

Before starting up, it is necessary to connect the protective ground and it is forbidden to cut off the internal/external grounding wire

Check if the grounding and fuse are intact. Do not operate if they are damaged

Operation taboos

Prohibited for use in explosive gas/vapor environments

It is prohibited to dismantle the casing (including high-voltage components inside) without authorization. Only qualified personnel from Yokogawa can repair it

Before connecting external equipment, it is necessary to ground it first. Before touching the circuit, turn off the power and confirm that there is no voltage

4.2 Laser Safety

Laser classification and standards

Module model: Laser classification meets key protection standards

AQ2200-112/131/132 Class 1 IEC 60825-1:2014, 21 CFR 1040.10/11 prohibits direct viewing of laser beams

AQ2200-111/141/142/136 Class 1M IEC 60825-1:2007, 21 CFR 1040.10/11 prohibits the use of optical instruments (magnifying glasses, etc.) for observation at<100mm

Laser unlocking process

Connect the included interlock plug (A1288JA) to the Remote INTERLOCK interface behind the frame controller

Press the SYSTEM key to enter the system screen, move the cursor to Lock, and press ENTER

Enter the default password '1234' and press ENTER

Set Lock to Off and press OK to confirm (laser output can only be turned on after unlocking)

4.3 Environmental Protection and Compliance

WEEE Directive (EEA and UK): Prohibition of mixing household waste, contact local Yokogawa office for disposal

Battery Directive (EEA and UK): Lithium batteries must be collected separately and replaced. Contact the local Yokogawa office for replacement

RoHS compliance: The instrument itself complies with EU RoHS, but if incompatible modules (such as AQ2200-111, AQ2200-131, etc.) are installed, it becomes invalid. The list of incompatible modules can be found in Section 5.1

Taiwan region: Information inquiry on restricted substances for power cord A1100WD: https://tmi.yokogawa.com/support/service-warranty-quality/product-compliance/
