Allen Bradley InterBus Module Configuration Guide

F: | Au:FAN | DA:2026-04-29 | 355 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

5. The control word cannot start the driver

Confirm that TB3-7/8 is in a closed state (stop input).

Read status word: bit0 and bit1 must be 1, and bit2 must be 0 to enter operation.

According to the state transition diagram, send 0x06 first, then 0x0F. Do not jump directly from 0x00 to 0x0F.

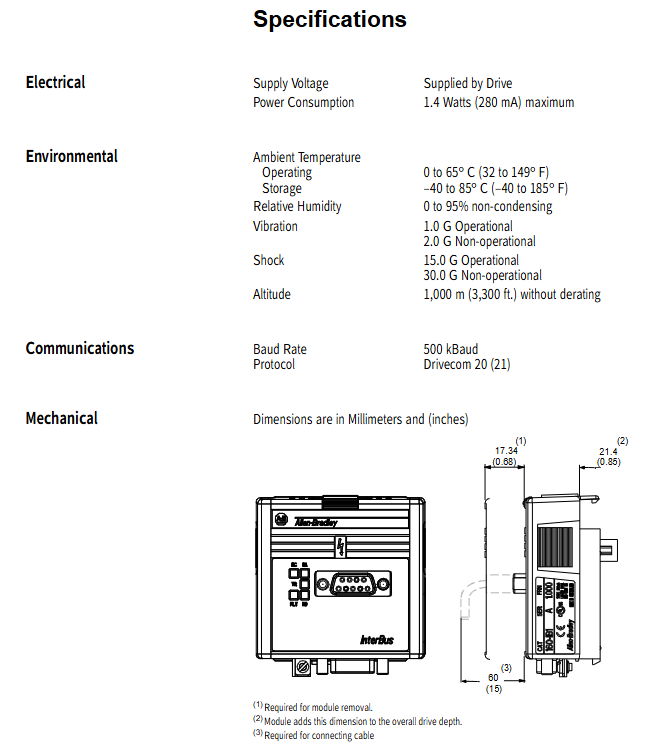

Summary of Technical Specifications

Project specifications

The power supply is provided by a frequency converter, with a maximum power consumption of 1.4W

Working temperature 0~65 ° C

Storage temperature -40~+85 ° C

Relative humidity 0~95%, no condensation

Communication rate 500 kBaud (fixed)

Protocol DRIVECOM 20/21, InterBus PCP

See Appendix A for dimensions (in millimeters)

Suitable for frequency converter 160 SSC series C type and above
