Eaton 9PX UPS maintenance and replacement

F: | Au:FANS | DA:2026-05-20 | 830 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

Eaton 9PX Series UPS Selection, Installation, and Maintenance Practical Guide

In the field of critical load protection, uninterruptible power supply (UPS) is the last line of defense to ensure the stable operation of data centers, communication base stations, industrial automation equipment, and medical systems. The Eaton 9PX series (covering 1000VA to 3000VA, including models such as 1000i, 1500i, 2200i, 3000i, etc.) adopts an online dual conversion topology structure, combined with Eaton's patented ABM ® Battery management technology significantly extends battery life while providing pure sine wave output. However, facing issues such as replacing old UPS systems, on-site installation and debugging, battery replacement, and communication configuration, engineers need a complete guide from parameters to practical operation.

This article is based on Eaton's official user manual and combines on-site service experience to systematically review the technical specifications, installation process, battery management, remote monitoring, and typical troubleshooting methods of the 9PX series, helping readers smoothly complete the entire process from selection to maintenance.


Product positioning and technological advantages

1.1 Online Dual Conversion Architecture

Unlike backup or online interactive UPS, 9PX adopts an online dual conversion design: the AC input is first converted to DC by a rectifier, and then regenerated into AC output by an inverter. This process has achieved:

The input and output are completely electrically isolated, effectively suppressing spikes, surges, harmonics, and frequency fluctuations in the power grid.

Zero conversion time, when the mains power is abnormal, the inverter immediately takes power from the battery without load sensing.

Output voltage accuracy ± 1% (mains mode) and ± 2% (battery mode), THDV<3% (linear load), suitable for precision equipment.

1.2 ABM Battery Management Technology

Traditional UPS uses constant voltage charging, which can easily lead to battery dehydration and electrode corrosion, with a lifespan of usually only 3-5 years. Eaton's Advanced Battery Management (ABM) technology uses three-stage charging: charging → idle → float charging, and regularly performs battery self checks to only replenish power when needed, which can extend the actual service life of the battery by 50%. On the LCD, the "remaining battery life (months)" can be viewed for early warning.

1.3 Efficient Mode (ECO)

When the mains power quality is within the set range, UPS can operate in bypass direct supply mode with an efficiency of up to 98% (online mode is about 93-94%), significantly reducing heating and energy consumption. Switching back to online mode takes ≤ 10ms and still protects IT equipment. It is recommended to only enable it when backend devices are not sensitive to brief power outages (such as power supplies with built-in capacitors).

1.4 Load Partition Management

9PX provides two controllable output sockets (Zone 1 and Zone 2). In battery mode, non critical loads can be automatically turned off through software or LCD settings to extend the backup time of critical loads. For example, partition 2 (printer, monitor) can be set to turn off with a delay of 6 seconds, partition 1 (server) can be set to turn off with a delay of 3 seconds, and the main output will never turn off.


Comparison of Replacement and Selection of Old UPS

2.1 Evaluate the original system parameters

When replacing discontinued UPS systems (such as old-fashioned power frequency machines, early Smart UPS, etc.), it is important to focus on checking:

Precautions for the corresponding capability of the original system parameter 9PX

Rated power (VA/W) 1000/1500/2200/3000 VA, power factor 1 (i.e. W=VA) 9PX full series output power factor 1, suitable for modern switching power supply loads

Input voltage range 100-276V (when load<33%), 176-276V (full load), wide input range suitable for areas with severe voltage fluctuations

Battery voltage: 48Vdc (1000-1500VA) or 72Vdc (2200-3000VA). The external battery box must match the voltage and cannot be mixed

Output socket type IEC C13/C19 hybrid 9PX provides multiple IEC 10A and one 16A (high-power model)

Communication interfaces RS232, USB, dry contacts, and smart card slots support RS232 monitoring commonly used in old systems without the need for software modification

2.2 Matching of External Battery Box (EBM)

9PX can connect up to 4 EBMs (external battery boxes). The EBM model needs to be consistent with the UPS voltage:

48V system: 9PXEBM48RT2U (applicable to 1000-1500VA)

72V system: 9PXEBM72RT2U or 9PXEBM72RT3U (applicable to 2200-3000VA)

The internal battery capacity of EBM is 9Ah (compared to UPS internal batteries of 7Ah or 9Ah), adding one set of EBM can extend the backup time by about twice. Attention should be paid when connecting:

The length of the battery connection line is 350mm, and a quantity detection line is provided (UPS automatically recognizes the EBM quantity).

Multiple EBMs are connected in parallel, and the last detection line is connected to the UPS.

When replacing the battery, if only the battery pack inside the EBM is to be replaced, the same model (12V 9Ah) sealed lead-acid battery must be used.

2.3 Replacement case: APC SUA1500 upgraded to 9PX1500IRT2U

Original equipment: APC Smart UPS 1500VA, has been discontinued and has reached the end of its lifecycle. The battery terminals are corroded, and the communication card no longer supports the new system.

Upgrade steps:

Measure the original equipment size and installation method: Originally tower type, 9PX supports tower and rack type, and can be converted using the accompanying guide rails and brackets.

Check the load power: The total power of the original connected server and switch is about 900W, and 9PX1500 provides 1500W, which is sufficient.

Keep the original RS232 monitoring cable and insert it into the RS232 port of 9PX. The original power management software can recognize it (Eaton driver needs to be installed).

If remote web monitoring is required, select a Network MS card and insert it into the smart card slot.

Install a new battery and charge it for 48 hours, then perform a battery self-test before putting it into operation.

Key points for installation and electrical connection

3.1 Mechanical Installation

Tower type: Install the attached support legs at the bottom, place them vertically, and leave 15cm of heat dissipation space behind.

Rack mounted: Use the rails provided by Eaton (to be ordered separately or included with some models) to push the UPS or EBM into the 19 inch cabinet and secure it with panel screws. 2U height (86.5mm) is suitable for some models ranging from 1000-3000VA, while 3U (130mm) is suitable for other models ranging from 2200/3000VA.

Multiple EBM installations: stackable or side-by-side, with a total height not exceeding the cabinet space.

3.2 Electrical Wiring

Important safety reminder: Even if the input power is disconnected, the output socket of the UPS internal battery may still be charged. Only qualified maintenance personnel are allowed to open the casing.

Input connection:

9PX1000/1500: Use IEC-C14 power cord to directly plug into the wall, be careful not to reverse the input (but UPS has polarity detection function).

9PX2200/3000: Use IEC-C20 power cord (16A), compatible with corresponding wall socket (such as NEMA 5-20 or IEC 60309).

Output connection:

The main output socket (marked as "Main Output" or icon) connects critical loads (servers, PLCs).

The connection between partition 1 and partition 2 can interrupt the load (monitor, printer, fan).

For high-power models, the main output includes a 16A IEC socket for high-power devices.

Input wire diameter and protection:

Suggested upstream circuit breakers: 10A C type for 1000-1500VA, 16A C type for 2200-3000VA.

Use the included power cord fastener (plastic clip) to prevent accidental unplugging of the plug.

Grounding: UPS must be reliably grounded, and the chassis grounding terminal is located on the rear panel.

3.3 HotSwap MBP module (optional)

HotSwap MBP (Maintenance Bypass Module) is a standard option that allows for the replacement of UPS without power interruption. Wiring method:

The input line is connected to the MBP input socket, and the UPS input is connected to the blue "UPS Input" socket marked as MBP.

Connect the UPS output to the MBP marked red "UPS Output" socket.

Connect the load to the output socket of MBP.

When in use, turn the MBP knob to "Bypass", and the load will be directly powered by the mains; At this time, it is safe to replace the UPS; After completion, turn back to 'Normal'.

Note: For the 1000/1500 model, an additional connecting cable needs to be purchased (not included in the attachment).


Battery management and maintenance

4.1 First Charging and Long Term Storage

Before first use, it must be charged for at least 8 hours (recommended 24 hours). If the "battery charging date" on the carton label has passed and has never been charged, do not use it and contact a service representative.

Long term storage (over 6 months): Connect to mains power and charge for 24 hours every 6 months, otherwise the battery may be permanently damaged.

Storage temperature: 0-35 ℃ with battery, -15-60 ℃ without battery.

4.2 Timing of battery replacement

The LCD displays "battery failure" or "0 months remaining battery life", or the battery self-test fails (triggered by "Control>Battery self-test").

Lead acid batteries typically have a lifespan of 3-5 years, and their lifespan is halved for every 10 ℃ increase above 25 ℃. Suggest regular replacement every 4 years.

Use Eaton original batteries for replacement (can be ordered with a service representative).

4.3 Internal battery replacement steps (no need to power off)

Remove the center cover of the front panel, push the left cover to the right and open it (be careful not to unplug the flat cable).

Remove the two screws from the battery panel and disconnect the battery connector.

Pull out the plastic handle of the battery pack and slowly pull it out with both hands.

Insert a new battery pack (confirm model: 12V 7Ah or 9Ah, quantity 4 or 6).

Reconnect the battery, reinstall the baffle and panel.

Execute 'Control>Reset Battery Life' on the LCD and charge the battery for 48 hours.

4.4 Deep discharge protection

Suggest enabling the 'Discharge Protection' setting (Settings>Battery Settings>Discharge Protection=Yes), UPS will automatically adjust the battery discharge termination voltage to prevent excessive discharge from causing permanent battery failure. If disabled, the warranty becomes invalid.

Communication and Remote Control

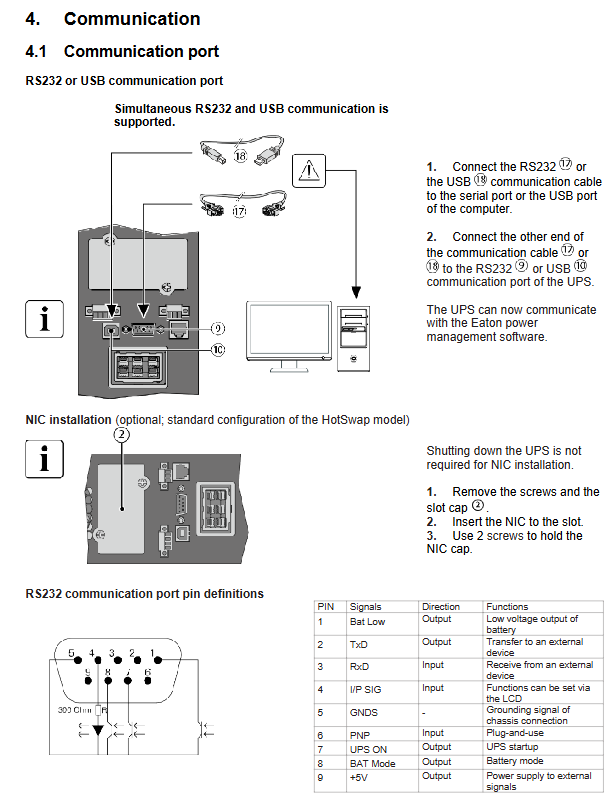

5.1 Overview of Communication Ports

RS232 (DB9): Supports simple signal output (such as low battery voltage, UPS normal) and power on/off commands. Eaton intelligent power software can be used for monitoring.

USB: Plug and play, compatible with most operating systems' built-in UPS services.

Dry contact (relay output): programmable output status (bypass mode, battery mode, etc.), used to connect external alarm lights or PLCs.

Smart card slot: Supports Network MS (SNMP/Web), Modbus MS, and Relay MS cards. Implement remote web monitoring, Modbus RTU/TCP integration, or hard pin extension.

5.2 Remote On/Off (ROO) and Remote Emergency Shutdown (RPO)

ROO (Remote On/Off): Control UPS power on/off through external normally open contacts. If the contact is closed, the UPS will turn on (or remain on), and if it is disconnected, it will turn off. Suitable for centralized control cabinets.

RPO (Remote Power Off): Use normally closed contacts, disconnect contacts in case of emergency, UPS immediately shuts off output (and enters standby mode). The RPO circuit belongs to SELV and must be insulated from hazardous voltages. Even if RPO is not required, the original terminal should be short circuited (otherwise a "remote shutdown" fault will be reported).

Configuration method: Go to the LCD menu "Settings>Communication Settings>Input Signal", and specify the function, delay, and effective level for the ROO and RPO ports respectively.

5.3 Programmable output signals

9PX provides 4 output signals: relay (normally open/normally closed), DB9 pins 1, 7, and 8. It can be assigned as "battery mode", "battery low voltage", "bypass mode", "UPS normal" and other states in the LCD. For example, setting DB9 pin 7 to "UPS normal", when the UPS is in inverter power supply or bypass power supply and there is no fault, pin 7 outputs a high level (optocoupler conduction).


Typical troubleshooting

6.1 Common alarms and solutions

Possible causes and solutions for LCD display/phenomenon

In battery mode, the buzzer beeps every 10 seconds to interrupt the mains power supply. The UPS battery checks whether the input circuit breaker trips and waits for the mains power to be restored. If long-term operation is required, please turn off non critical loads.

The battery is low voltage and beeps every 3 seconds. As the battery is about to run out, save the data immediately and turn off the load. If the early alarm threshold is set too low, you can increase the capacity or remaining time threshold in "Settings>Battery Settings>Low Battery Level".

No battery, continuous buzzing. Check if the internal battery plug is loose when the battery connection is disconnected or the fuse is blown; For 2.2K/3K, check the internal 50A/75A fuse.

Battery malfunction: If the battery self-test fails or the voltage is too low in the ABM cycle, execute "Control>Battery self-test". If it fails, the battery needs to be replaced.

Bypass mode overload, overheating, or manual bypass to reduce load capacity; Check if the fan is running; Confirm that the bypass voltage/frequency is within the range.

Remove part of the load when the output overload exceeds the rated power. If the overload lasts for more than the specified time (such as 102% -130% for 12 seconds), it will switch to bypass or shut down.

Remote shutdown RPO terminal open or unconnected. Check if RPO terminal is short circuited (if RPO function is not used). The RPO input signal function can be disabled in the LCD.

6.2 Overload protection parameters

The overload response of 9PX can be customized through "Settings>Input/Output Settings>Load Mode":

IT load (default): Inverter when overloaded → bypass → inverter (automatic return).

Industrial load: Inverter when overloaded → no output (direct shutdown), suitable for critical processes that do not allow bypass.

Customization: Actions for overload and short circuit can be set separately.

6.3 Buzzer Mute

Press the ESC key on the front panel to temporarily mute the current alarm. If a new alarm is triggered, the buzzer will sound again. You can also set the alarm sound mode to "no alarm" in the "local settings" (not recommended).


Preventive Maintenance Plan

Periodic maintenance content

Check if there are any alarms on the LCD every month; Record the remaining months of battery life; Clean the air inlet filter.

Perform a battery self-test once a quarter (control>battery self-test) and observe that there are no faults within 10 seconds of discharge.

Check all fans (rear panel and side) for operation every six months; Measure the terminal voltage of the battery (which should be within the floating charge voltage range).

Calibrate UPS output voltage annually (requires professional tools); Check if all cable connections are loose; Test RPO/COO functionality.

Replace the internal battery and EBM internal battery every 4 years (even if there are no fault alarms, to prevent accidental power outages caused by capacity decay).


Quick List for Replacing Old UPS

If you are using a discontinued or expired UPS (such as APC Smart UPS, Eaton 5115, Powerware 9125, etc.), the following checklist will help you confirm the replaceability of 9PX:

Load power: 9PX maximum 3000W, power factor 1, most old models 1500VA can be directly replaced.

Input plug: 9PX comes standard with IEC-C14 or C20. If the original socket is NEMA 5-15 or 5-20, the cable needs to be replaced or an adapter needs to be used.

Output voltage: 200/208/220/230/240V can be set in the LCD, compatible with global voltage standards.

Battery voltage: Pay attention to the difference between 48V/72V. Older UPS may use 24V or 96V, and in this case, all battery packs need to be replaced.

Monitoring compatibility: The RS232 protocol of 9PX is not exactly the same as Eaton's old model, but it can be used with USB or replaced with a smart card. Recommend using Eaton intelligent power software or direct SNMP.

Mechanical dimensions: 9PX has a height of 2U or 3U and a depth of 450-605mm, which is deeper than many older rack mounted UPS models. It is necessary to confirm whether the cabinet depth is sufficient (≥ 600mm).
