Eaton XV-102-L Touchscreen Installation Guide

10.1 Cleaning the Touch Screen

Wipe with a clean, soft damp cloth (dipped in a small amount of water or neutral detergent).

Do not use sharp objects, abrasive cleaning agents, or solvents (such as alcohol, acetone).

Prevent liquid from flowing into the interior of the equipment.

10.2 Battery

Built in lithium battery (model CR1025 or BR1225) is used for real-time clock backup, with a typical lifespan of 10 years under 25 ℃ power-off conditions.

The battery is soldered onto the motherboard and cannot be replaced by the user. If replacement is required, it must be done by an authorized Eaton service center.

When disposing of equipment, lithium batteries may explode and need to be professionally disposed of according to local regulations.

10.3 Storage and Transportation

Storage temperature: -20~+60 ℃; No condensation is allowed.

Transport in original packaging to prevent mechanical impact.

If installed after long-term storage, check for condensation first.

Summary of Technical Specifications

Project 3.5 inches 5.7 inches 7.0 inches

Resolution 320 × 240 (QVGA) 640 × 480 (VGA) 800 × 480 (WVGA)

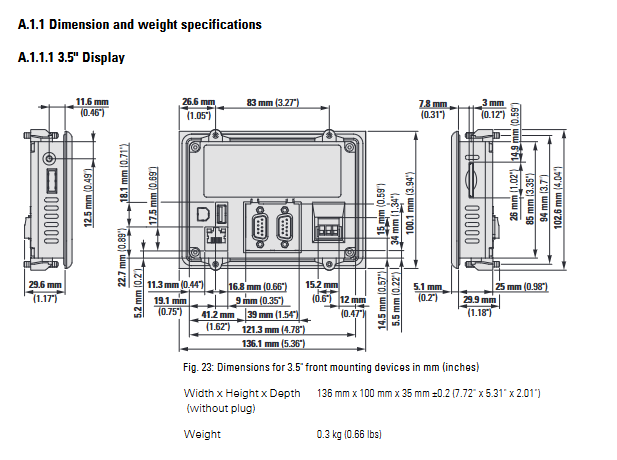

Dimensions (width x height x depth) 136 x 100 x 35 mm 170 x 130 x 43 mm 210 x 135 x 43 mm

Weight 0.3 kg 0.6 kg 0.6 kg

Maximum power consumption 5 W 7 W 7 W

Processor 800 MHz RISC Same Same Same

Memory 512 MB DRAM+4 GB Internal Storage Same Same Same

Protection level: IP65/NEMA 4X for the front and IP20/NEMA 1 for the back. Same and identical

Certification: cUL, CE, DNV GL, ATEX Zone 22 are the same and identical
