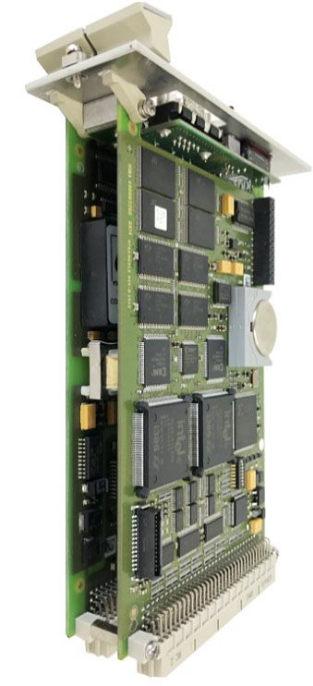

HIMA F8650X Central module

HIMA F8650X Central module

Product Overview

The HIMA F8650X central module, as the core component of industrial control systems, is like the human brain, controlling the operating rhythm of the entire system. It is carefully designed to cope with the complex and harsh environments of industries such as oil and gas, petrochemicals, and power generation. It can handle various automation tasks stably and efficiently, laying a solid foundation for the safe and reliable operation of the production process. With advanced technology and excellent performance, this module occupies an important position in the field of industrial automation and is a powerful assistant for many large-scale industrial projects to achieve intelligent control.

Central module with two clock-synchronized microprocessors

Microprocessors:INTEL 386EX, 32 bits

Clock frequency:25 MHz

Memory per microprocessor

Operating System:Flash-EPROM 1 MB

User program:Flash-EPROM 1 MB

Data:SRAM 1 MB

Interfaces Diagnostic display Shutdown on fault:Two serial interfaces RS 485 with electric isolation

Four digit matrix display with selectable information Safety-related watchdog with output 24 V,

loadable up to 500 mA, short-circuit proof Two European standard PCBs,one PCB for the diagnostic display

For the serial interface only the bus station no. 1-31 can be set.

Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches S1-6/7 must be set in addition to the switches S1-1/2/3/4/5.

The number of the communication partners within a network is still limited to 64.

This enhanced setting of the bus station no. is only possible from operating system BS41q/51q V7.0-8 (05.31) of the central module.

Applications with the communication module F 8627X:– connection of the central module to a PADT (ELOP II TCP)– connection to other communication partners within an Ethernet network (safeethernet, Modbus TCP)

The communication runs from the central module via the backplane bus to the communication module F 8627X and from the Ethernet ports of the F 8627X into the Ethernet network and vice versa.

Special features of the central module:– Self-education: from operating system BS41q/51q V7.0-8 (05.31)– ELOP II TCP: from operating system BS41q/51q V7.0-8 (05.31)

Further informations about the bus station no., ELOP II TCP, loading of operating systems and application programs (self-education) et al. corresponding to the central module you will find in the data sheet of the F8627X as well as the operating system manual of H41q/H51q and the safety manual of H41q/H51q

Diagnostic display of the central module– Four digit alphanumerical display,– two LEDs for the general display of errors (CPU for the central modules, IO for the testable

input/output modules),– two toggle switches to request detailed error information,– push-button ACK resets the error indication; in failure stop ACK behaves like restarting the system.

For further information on the diagnostic display and lists of error codes, refer to the documen tation "Functions of the operational system BS 41q/51q" (also on ELOP II CD).

Notes for start-up and maintenance– Lifetime of the buffer battery (without voltage feeding):

1000 days at TA = 25 °C

200 days at TA = 60 ° C– It is recommended to change the buffer battery (CPU in operation) at the latest after 6

years, or with display BATI within three months

(Lithium battery, e.g. type CR 2477N, HIMA part no. 44 0000018)– Check the bus station no. and transmission rate at switch S1 for correct settings– Important: When upgrading an F 8650 to an F 8650X module the fan concept has also to be changed!

Specification parameters

Processor: Adopting a dual core ARM Cortex-A9 processor, some data shows that there is also an Intel 386 ex (32-bit) processor with dual clock synchronization, with a clock frequency of 25MHz. This high-performance processor configuration ensures excellent performance and reliability in complex industrial environments, meeting the computational requirements of various complex control tasks.

Memory: Equipped with 2GB of RAM and 8GB of Flash, there are also data indicating that each microprocessor has 1MB of Flash EPROM (for shared space between the operating system and user programs) and 1MB of SRAM. Adequate memory space provides a guarantee for storing critical programs and data, ensuring efficient operation even under high load conditions.

Communication port: It has rich communication interfaces, including Ethernet, USB, RS 232, and RS485. These communication ports support multiple communication protocols, facilitating seamless integration with various control systems, promoting efficient data exchange, improving system response speed, and meeting the connection requirements of different industrial network architectures.

Working temperature: The working temperature range is -20 ° C to 60 ° C. Its sturdy design enables it to withstand harsh environmental conditions, whether it is a high-temperature industrial production site or a cold outdoor environment, ensuring stable operation of the equipment and reducing the risk of failure caused by changes in environmental temperature.
