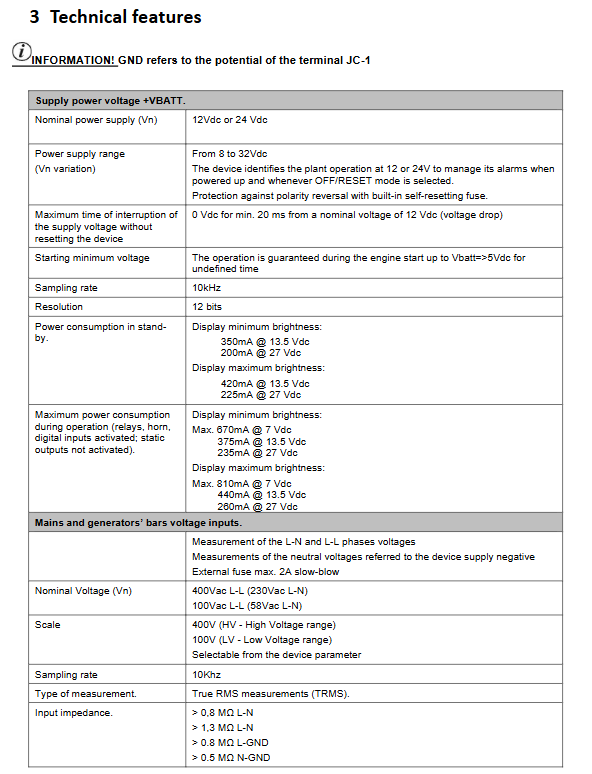

Mecc Alte MC200 Controller Engineering Debugging and Troubleshooting

For electric operating mechanisms: DOF.2033 (MGCB closing pulse) and DOF.2032 (opening pulse) can be used, combined with the minimum voltage coil DOF.2031 to achieve forced disconnection in case of faults.

The controller has a minimum interval for circuit breaker operation: it is not allowed to open again within 0.5 seconds after closing; It is not allowed to close the switch again within 0.2 seconds after opening to avoid damage to the mechanism.

2.3 Malfunctions caused by common configuration errors

Possible causes and solutions for the phenomenon

Pressing the MCB button has no response, and the page displays "MCB status" which does not match the actual situation. DIF.3002 has not been configured or the input polarity is incorrect. Configure feedback input and check the polarity (corresponding to position P.2000)

After synchronization is completed, MGCB does not close, and the final report is W271 output DOF.2033 not configured or wired incorrectly. Use DOF.2033 and confirm relay action

The mains power is normal but the generator has started incorrectly. The mains power detection threshold is too low or the external start prohibition input is activated. Check the threshold of P.0203/P.0236 and the input status of DIF.2501

Key steps for synchronous and parallel debugging

One of the core capabilities of MC200 is to achieve synchronous closing of generators and mains power (or synchronization between generators). Synchronization failure (W271/W272) is one of the most common on-site faults.

3.1 Quick synchronization parameter setting

On page M.12, voltage difference, frequency difference, phase difference, and synchronization permission status can be observed. The five rectangular icons represent:

Voltage within allowable range (P.0301/P.0303, default 80~110%)

The frequency is within the allowable range (P.0305/P.0307, default 90-110%)

Voltage difference less than threshold (P.0841, recommended 5%)

Frequency difference less than threshold (P.0843, recommended 0.2 Hz)

Phase difference less than threshold (P.0842, recommended 5 °)

After all conditions are met, the fifth rectangle will turn green and the controller will issue a closing command.

3.2 Voltage/Frequency Adjustment PI Parameter Setting

MC200 sends voltage and speed control commands to each generator controller through the CAN bus. If the PI parameters are not appropriate, there may be repeated "catching up" and inability to synchronize.

Speed loop gain P.0849: Increasing it can bring the frequency closer to the mains, but if it is too high, it can cause overshoot. Suggest setting it to 1.0 for the first time.

Speed loop integration factor P.0850: set to 0.2~0.5, can eliminate static phase difference.

Voltage loop gain P.0868 and integration factor P.0869 * *: Used for voltage matching, usually set to 0.5 and 0.1.

Debugging technique: In MAN mode, manually adjust the speed bias P.0840 and observe whether the generator frequency can follow smoothly. If the frequency oscillates, reduce P.0849; If the response is too slow, increase P.0849.

3.3 Synchronization Failure Fault W271/W272

W271 MGCB synchronization failure: occurred in automatic synchronization mode, and MGCB closing was not completed within P.0852 time. Common reasons: Generator voltage or frequency deviation exceeds the synchronous inspection window; External synchronization allows input (DIF.1004) to be inactive; There is no voltage or the voltage is not qualified on the MCB side.

W272 MCB synchronization failure: occurs when switching the load from the generator back to the mains power. The handling method is determined by P.9515: set to 0 to maintain the power supply of the generator without switching (no power outage); If set to 1, the MCB will be forcibly closed after a brief power outage.

On site processing procedure:

Read page M.12 and confirm which synchronization condition is not met.

Check if the AVR and speed regulator of the generator respond to the controller's commands (via CAN bus or analog).

If the voltage deviation is too large, the threshold of P.0841 can be temporarily increased (such as 10%) for closing, and then restored to normal value afterwards.

For W272, if it cannot be connected to the grid for a long time after the mains power is restored, check whether the mains power phase is consistent with the generator (phase sequence errors can cause empty rectangles to light up).

Typical fault code analysis and troubleshooting

The following lists the most frequently occurring MC200 alarm codes on site and their corresponding handling suggestions (refer to Chapter 8 of the manual for code numbers).

4.1 Circuit Breaker Related

A013 MCB not closed: After the controller issues a closing command, the feedback signal does not become closed within the specified time. Check the MCB control circuit voltage, auxiliary contacts, and fuses. If it is an electric operating mechanism, confirm that the motor power supply is normal.

A014 MGCB not closed: Same as above, for the power generation side circuit breaker. In a multi machine parallel system, if MGCB is controlled by an external device, please confirm that DIF.1003 (MGCB external control) input is activated.
