Mecc Alte MC200 is a high-performance generator set controller widely used in complex power systems such as multi machine parallel operation, mains parallel operation, and emergency backup. Its powerful programmable logic, rich protection functions, and flexible communication interfaces (CAN bus PMCB, Ethernet, Modbus) make it the core of modern diesel generator control. However, the complex parameter system and multi machine collaborative logic also mean that on-site debugging and troubleshooting require systematic knowledge.

This article is based on the original technical manual of MC200, combined with common fault scenarios on site, providing engineers with a practical technical guide from four aspects: hardware installation, I/O configuration, synchronization parameter tuning, and typical fault code analysis. Whether you are debugging a single MPM power station for the first time or troubleshooting synchronization failure issues in parallel operation of multiple machines and mains power, you can find a clear solution path from this article.

Hardware installation and basic wiring inspection

The reliability of MC200 depends first and foremost on proper electrical connections. The following are the most error prone steps during the installation phase:

1.1 Power Supply and Emergency Stop Circuit

MC200 adopts DC power supply (8-32Vdc, automatic recognition of 12V/24V system), and the power supply is connected to the JC terminal (1-GND, 2-+BATT). Suggest inserting a 5A slow melting fuse in series in the+BATT circuit.

Emergency stop must be achieved through the JJ-2 (COMMON PLUS) terminal: this terminal needs to be connected to the normally closed contact of the external emergency stop button. If JJ-2 loses power, the controller immediately triggers A048 emergency stop and cannot pass parameter shielding. The measurement point is located on page S.15 (EM-S voltage).

When using static outputs (JD, JR, JQ) to drive relays or contactors, it is necessary to parallel freewheeling diodes (such as 1N4007) at both ends of the load, otherwise the output transistor may be damaged.

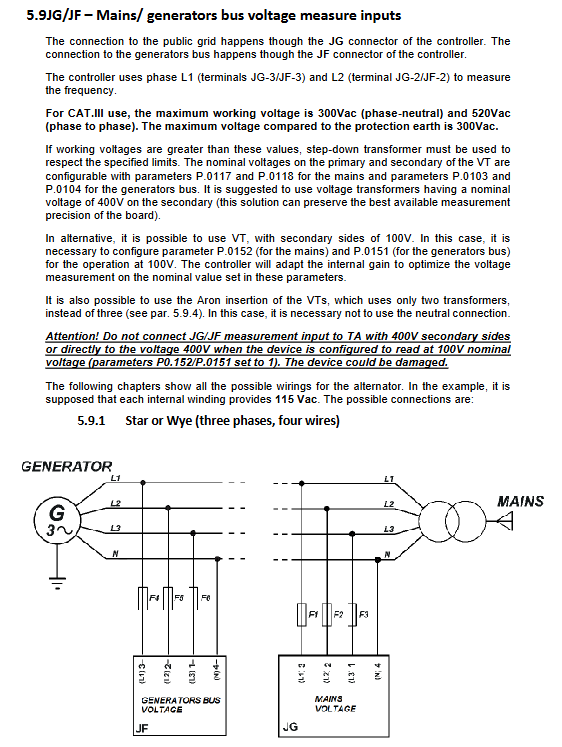

1.2 Voltage measurement input (JG mains/JF power generation busbar)

The voltage input can be selected with a range of 400V or 100V (parameter P.0152 is the mains power, and P.0151 is the power generation busbar). It is strictly prohibited to directly connect 400V when the range is set to 100V, otherwise it will burn out the input circuit.

The wiring method (three-phase four wire/three-phase three wire/single-phase) is set through parameters P.0119 (mains) and P.0101 (power generation). If it is a three-phase four wire system but the neutral point is not connected, the "Neutral Point Connection" parameter (P.0129/P.0128) must be set to 0, and the controller will generate a virtual neutral point internally.

For situations where there is a star connection but no neutral wire, the line voltage measurement is normal, but the phase voltage cannot be used.

1.3 Current measurement input (JE main current, JI auxiliary current)

The CT secondary must be selected as 5A or 1A, and the CT transformation ratio (P.0107 primary side current, P.0139 secondary side current) must be configured correctly. Open circuit is strictly prohibited on the secondary side of CT.

If using the fourth current (JI) as neutral line or backup protection, P.0131=2 (neutral line) or 1 (universal) should be set. This input can also be used as a power measurement, in which case the controller assumes three-phase balance and corrects the coefficient through P.0132.

1.4 Communication cables

The PMCB bus (JX) is used for multi machine parallel operation and must use shielded twisted pair cables with an impedance of 120 Ω (such as HELUKABEL 800571), and terminal resistors (S6 switch ON) must be connected at both ends. The bus topology must be daisy chain and star connections are not allowed.

If frequent BUS-OFF faults occur on the CAN bus (as shown on page S.07), first check the terminal resistance and cable connections, and then investigate whether there are multiple devices with duplicate addresses (P.9501).

Digital Input/Output Configuration and Circuit Breaker Management

The flexibility of MC200 largely depends on the allocation of I/O functions. Incorrect configuration can cause the controller to fail to correctly feedback the status of the circuit breaker, leading to cascading failures.

2.1 Circuit breaker feedback input (mandatory)

MCB status (mains circuit breaker): Use digital input to configure function DIF.3002.

MGCB status (power generation busbar circuit breaker): using function DIF.3003.

If these feedbacks are not configured, but parameter P.0855 (MCB management mode) is set to 1 or 2 (controller management), the controller will alarm for W273 parameter inconsistency and cannot correctly detect circuit breaker opening and closing failures.

2.2 Circuit breaker control output

For contactor circuit breakers, it is recommended to use DOF.2034 (MGCB stable closing command) and DOF.2004 (MCB stable opening command), combined with normally closed auxiliary contacts, to ensure that the mains power can still be supplied when the controller loses power.

For electric operating mechanisms: DOF.2033 (MGCB closing pulse) and DOF.2032 (opening pulse) can be used, combined with the minimum voltage coil DOF.2031 to achieve forced disconnection in case of faults.

The controller has a minimum interval for circuit breaker operation: it is not allowed to open again within 0.5 seconds after closing; It is not allowed to close the switch again within 0.2 seconds after opening to avoid damage to the mechanism.

2.3 Malfunctions caused by common configuration errors

Possible causes and solutions for the phenomenon

Pressing the MCB button has no response, and the page displays "MCB status" which does not match the actual situation. DIF.3002 has not been configured or the input polarity is incorrect. Configure feedback input and check the polarity (corresponding to position P.2000)

After synchronization is completed, MGCB does not close, and the final report is W271 output DOF.2033 not configured or wired incorrectly. Use DOF.2033 and confirm relay action

The mains power is normal but the generator has started incorrectly. The mains power detection threshold is too low or the external start prohibition input is activated. Check the threshold of P.0203/P.0236 and the input status of DIF.2501

Key steps for synchronous and parallel debugging

One of the core capabilities of MC200 is to achieve synchronous closing of generators and mains power (or synchronization between generators). Synchronization failure (W271/W272) is one of the most common on-site faults.

3.1 Quick synchronization parameter setting

On page M.12, voltage difference, frequency difference, phase difference, and synchronization permission status can be observed. The five rectangular icons represent:

Voltage within allowable range (P.0301/P.0303, default 80~110%)

The frequency is within the allowable range (P.0305/P.0307, default 90-110%)

Voltage difference less than threshold (P.0841, recommended 5%)

Frequency difference less than threshold (P.0843, recommended 0.2 Hz)

Phase difference less than threshold (P.0842, recommended 5 °)

After all conditions are met, the fifth rectangle will turn green and the controller will issue a closing command.

3.2 Voltage/Frequency Adjustment PI Parameter Setting

MC200 sends voltage and speed control commands to each generator controller through the CAN bus. If the PI parameters are not appropriate, there may be repeated "catching up" and inability to synchronize.

Speed loop gain P.0849: Increasing it can bring the frequency closer to the mains, but if it is too high, it can cause overshoot. Suggest setting it to 1.0 for the first time.

Speed loop integration factor P.0850: set to 0.2~0.5, can eliminate static phase difference.

Voltage loop gain P.0868 and integration factor P.0869 * *: Used for voltage matching, usually set to 0.5 and 0.1.

Debugging technique: In MAN mode, manually adjust the speed bias P.0840 and observe whether the generator frequency can follow smoothly. If the frequency oscillates, reduce P.0849; If the response is too slow, increase P.0849.

3.3 Synchronization Failure Fault W271/W272

W271 MGCB synchronization failure: occurred in automatic synchronization mode, and MGCB closing was not completed within P.0852 time. Common reasons: Generator voltage or frequency deviation exceeds the synchronous inspection window; External synchronization allows input (DIF.1004) to be inactive; There is no voltage or the voltage is not qualified on the MCB side.

W272 MCB synchronization failure: occurs when switching the load from the generator back to the mains power. The handling method is determined by P.9515: set to 0 to maintain the power supply of the generator without switching (no power outage); If set to 1, the MCB will be forcibly closed after a brief power outage.

On site processing procedure:

Read page M.12 and confirm which synchronization condition is not met.

Check if the AVR and speed regulator of the generator respond to the controller's commands (via CAN bus or analog).

If the voltage deviation is too large, the threshold of P.0841 can be temporarily increased (such as 10%) for closing, and then restored to normal value afterwards.

For W272, if it cannot be connected to the grid for a long time after the mains power is restored, check whether the mains power phase is consistent with the generator (phase sequence errors can cause empty rectangles to light up).

Typical fault code analysis and troubleshooting

The following lists the most frequently occurring MC200 alarm codes on site and their corresponding handling suggestions (refer to Chapter 8 of the manual for code numbers).

4.1 Circuit Breaker Related

A013 MCB not closed: After the controller issues a closing command, the feedback signal does not become closed within the specified time. Check the MCB control circuit voltage, auxiliary contacts, and fuses. If it is an electric operating mechanism, confirm that the motor power supply is normal.

A014 MGCB not closed: Same as above, for the power generation side circuit breaker. In a multi machine parallel system, if MGCB is controlled by an external device, please confirm that DIF.1003 (MGCB external control) input is activated.

A023 MCB not disconnected: feedback is still closed after the disconnection command. Commonly seen in contactor adhesion or minimum voltage coil failure. Immediately manually disconnect and repair.

W005 GCB not disconnected: It was detected through the CAN bus that the GCB of a certain generator set is still closed but should be disconnected. Check the controller status of the unit, which may require manual intervention or reset.

4.2 Synchronization and Power Quality

W207 grid connection timeout: Parameter P.0890 limits the maximum grid connection time (usually used for short-term parallel connection). If frequent occurrences occur in the "emergency+short-term parallel" mode (MSB+MSTP), check if the load is too large to allow the generator to reduce the mains power to zero. P.0890 can be increased appropriately, or the power management settings can be checked.

W279 bus voltage inconsistency: The controller detected that the bus should have voltage (for example, a certain unit has closed the GCB), but the voltage measurement circuit did not detect it. The common reason is that the secondary fuse of the voltage transformer is blown or the wiring is loose. At the same time, check if bit 7 of P.0807 has erroneously blocked this protection.

A048 emergency stop: JJ-2 terminal loses power for more than the set time of P.0361. Check the emergency stop button circuit, intermediate relay, and 24V power supply.

4.3 Communication and Parameters

W200 PMCB bus BUS-OFF: CAN bus serious error. Check the terminal resistance, cable shielding layer grounding, and duplicate node addresses (W201 appears simultaneously). Can be forcibly reset: Select CAN1 on page S.07, while holding down ACK+ESC for 5 seconds.

W202 PMCB Generator Quantity Error: The actual detected number of generator controllers does not match the setting in P.0803. Verify the number of units deployed in the parallel system, or modify P.0803.

W273 parameter inconsistency: usually due to missing circuit breaker feedback or external synchronization request input. Go to page S.02 to view the detailed description and supplement the configuration according to the prompts.

4.4 Generator start/stop timeout

W022 startup timeout: No response from the unit within P.9511 time after issuing the startup command. Check if the fuel solenoid valve, starter motor, battery voltage, and CAN bus communication are normal (if the unit controller is in AUTO mode).

W021 Stop timeout: The unit continues to operate for more than P.9512 hours after the stop command. Common reasons: The engine cooling timer has not been completed but the controller has determined that it has timed out; Or activate the external parking prohibition input. Confirm that P.9512 is sufficient to cover the cooling time (usually 60-120 seconds).

Key Points for Advanced Function Configuration

5.1 Load Function

In MPM or MSB mode, MC200 can automatically start and stop the unit according to the load rate (P.9506=1 enabled). Key parameters:

P. 0826 Start load threshold (e.g. 85%): When DPRt (percentage of total power) exceeds this value and lasts for P.0827 seconds, start a backup machine.

P. 0828 Stop load threshold (e.g. 50%): Calculate if the power ratio is still below this threshold after stopping the lowest priority unit, then stop the unit.

P. 0822 Host Group Selection Mode: Manual designation, scheduled rotation, or rotation by operating hours can be selected to avoid excessive use of a single unit.

Common on-site problem: Frequent load fluctuations lead to frequent start stop of the unit. Solution: Increase the threshold difference (e.g. 80% start, 40% stop) or extend the delay time.

5.2 Load Shedding

When the total capacity of the generator set is insufficient to support the current load, MC200 can gradually unload non critical loads (output through DOF. 2251-2254). Parameter P.1181 sets the unloading threshold (such as 95%), and P.1183 sets the recovery threshold (such as 80%). Uninstalling delay P.1182 can avoid instantaneous overload misoperation.

5.3 Peak Shaving

When the mains power exceeds P.1172, MC200 automatically starts the generator to connect to the grid for power supply, reducing the peak value of mains power. Ensure that the controller can measure the load power (via CT layout position P.0124=1).

Maintenance and diagnostic skills

6.1 Use historical records to troubleshoot occasional faults

MC200 has event records (H.03), trend records (H.04), and peak records (H.05). When an unexplained trip occurs:

Enter H.03 to view the event list and find the records of the fault occurrence time in chronological order (such as Axxx or Wxxx).

Refer to the snapshot attached to this record (pages 2-5), which includes the voltage, current, frequency, and circuit breaker status at the moment of the fault.

Comparing the measured values before and after the fault can quickly determine whether it is overcurrent, overvoltage, or loss of synchronization conditions.

6.2 Expanding Alarm with Virtual Input and AND/OR Logic

No additional wiring is required to create a composite alarm. For example, an alarm is required when the mains power is lost and the generator is not started:

Configure a virtual digital input with AND/OR logic set to AND, under the conditions of ST.017 (mains fault) and ST.384 (generator not started).

Configure the virtual input as DIF.4001 (General Warning) and set the alarm text.

Realize intelligent monitoring without hardware modifications.

6.3 Precautions for firmware upgrade

The version log in the manual indicates that the MC200 firmware has undergone multiple iterations (currently the latest 2.06). Before upgrading:

Use BoardPrg4 software to backup the current parameters.

Download firmware via USB (JNA) or Ethernet (JY).

After upgrading, reload the parameters and check if P.9506 (new version compatibility mode) is set correctly. If there are still old versions of MC100 or DST4602 in the system, P.9506 may need to be set to 1 for compatibility.
