OMRON MX2 Inverter Engineering Debugging Guide

In the field of industrial motor control, frequency converters have become the core components of speed regulation, energy conservation, and protection equipment. The Omron MX2 series frequency converter is widely used in conveyor belts, fans, water pumps, elevators, and other applications due to its wide power range (0.1~15kW, 200V/400V level), built-in RS485 Modbus communication, driver programming function, and up to 200% 0.5Hz starting torque. However, on-site engineers often encounter equipment malfunction or even damage during initial installation or maintenance replacement due to wiring errors, improper parameters, or unfamiliarity with fault codes. This article is based on the core content of the MX2 series user manual, systematically sorting out the complete process from safety specifications, mechanical installation, electrical wiring to parameter configuration, fault diagnosis, and advanced functional applications, helping engineers quickly grasp the key points of debugging and improve the efficiency of on-site problem-solving.

Safety Notice and Basic Norms

The frequency converter contains high-voltage capacitors inside, which will maintain dangerous voltage even after power failure. All installation, wiring, and maintenance work must be carried out by qualified electrical personnel and strictly adhere to the following safety guidelines:

Power off waiting: After turning off the input power, it is necessary to wait for at least 10 minutes until the indicator light goes out and the main circuit DC voltage is confirmed to have dropped to a safe level before opening the cover or touching the terminal.

Reliable grounding: The 200V level frequency converter adopts Class D grounding (grounding resistance ≤ 100 Ω), and the 400V level adopts Class C grounding (≤ 10 Ω). An independent grounding wire must be used, and it is prohibited to connect it in series with other devices for grounding.

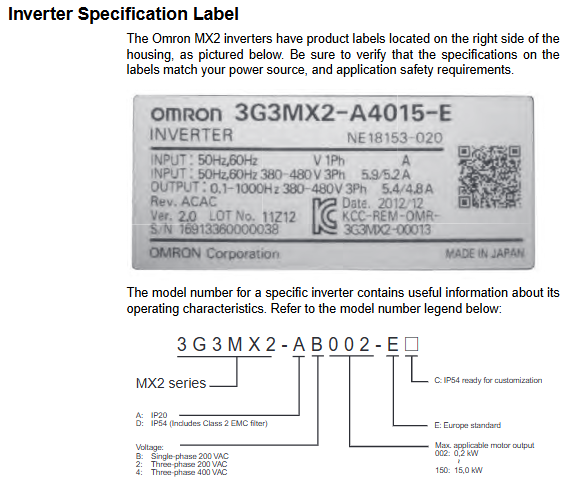

Wiring inspection: Before powering on, confirm that the power supply voltage is consistent with the frequency converter nameplate: single-phase 200~240V is suitable for AB model, three-phase 200~240V is suitable for A2 model, and three-phase 380~480V is suitable for A4 model. It is strictly prohibited to connect AC power to the output terminals U/V/W.

Protection device: Each power phase must be equipped with a fuse or circuit breaker. MX2 integrates solid-state short-circuit protection internally, but cannot replace branch circuit protection.

Environmental requirements: Installed indoors without corrosive gases, conductive dust, or direct sunlight, with an ambient temperature of -10~50 ℃ and humidity of 20~90% without condensation.

Mechanical installation and heat dissipation

The MX2 series offers two levels of protection: IP20 and IP54. IP20 is suitable for installation inside standard control cabinets, while IP54 can be used in situations with certain dust and waterproof requirements.

2.1 Installation direction and spacing

The frequency converter must be installed vertically on flame-retardant materials (such as metal plates) with the heat sink facing upwards. To ensure air convection and heat dissipation, it is necessary to reserve the following space:

Above 10cm above and below, and above 5cm on both sides.

If multiple frequency converters are installed side by side (with a lateral spacing of 0), they must be downgraded for use, the ambient temperature must not exceed 40 ℃, and the carrier frequency must be correspondingly reduced.

Avoid installing the frequency converter directly above heating elements such as braking resistors and reactors.

2.2 Installation steps (IP20)

Insert the upper part of the back of the frequency converter into the 35mm DIN rail, and then press the lower part until the buckle engages.

For high-power models (≥ 3.7kW), screws should be used to fix them through the mounting holes on the heat sink.

When disassembling, first disconnect the power and wait for 10 minutes, then press down on the unlocking mechanism to pull out the lower part of the inverter from the guide rail.

2.3 Ventilation protection

During the wiring and installation process, paper tape should be used to temporarily cover the ventilation openings at the top and bottom of the inverter to prevent metal shavings and wire ends from entering the interior. Be sure to remove the cover before powering on.

Power and control terminal wiring

3.1 Main circuit terminals

Power input: single-phase type connected to L1 and N; Three phase connection: R/L1, S/L2, T/L3. Please note that the specifications of the power cord should comply with the recommended AWG values in the manual (such as using AWG16 and 75 ℃ copper wire below 1.5kW).

Motor output: connected to U/T1, V/T2, W/T3. It is prohibited to install phase capacitors or surge absorbers on the output side. If the length of the motor cable exceeds 20m (400V level), it is recommended to install an output reactor to suppress reflected voltage.

DC reactor: Short circuiting pieces are installed between terminals+1 and P/+2 at the factory. If an external DC reactor is required, first remove the short-circuit wire; If not used, the short connector must be retained.
