OMRON MX2 Inverter Engineering Debugging Guide

In the field of industrial motor control, frequency converters have become the core components of speed regulation, energy conservation, and protection equipment. The Omron MX2 series frequency converter is widely used in conveyor belts, fans, water pumps, elevators, and other applications due to its wide power range (0.1~15kW, 200V/400V level), built-in RS485 Modbus communication, driver programming function, and up to 200% 0.5Hz starting torque. However, on-site engineers often encounter equipment malfunction or even damage during initial installation or maintenance replacement due to wiring errors, improper parameters, or unfamiliarity with fault codes. This article is based on the core content of the MX2 series user manual, systematically sorting out the complete process from safety specifications, mechanical installation, electrical wiring to parameter configuration, fault diagnosis, and advanced functional applications, helping engineers quickly grasp the key points of debugging and improve the efficiency of on-site problem-solving.

Safety Notice and Basic Norms

The frequency converter contains high-voltage capacitors inside, which will maintain dangerous voltage even after power failure. All installation, wiring, and maintenance work must be carried out by qualified electrical personnel and strictly adhere to the following safety guidelines:

Power off waiting: After turning off the input power, it is necessary to wait for at least 10 minutes until the indicator light goes out and the main circuit DC voltage is confirmed to have dropped to a safe level before opening the cover or touching the terminal.

Reliable grounding: The 200V level frequency converter adopts Class D grounding (grounding resistance ≤ 100 Ω), and the 400V level adopts Class C grounding (≤ 10 Ω). An independent grounding wire must be used, and it is prohibited to connect it in series with other devices for grounding.

Wiring inspection: Before powering on, confirm that the power supply voltage is consistent with the frequency converter nameplate: single-phase 200~240V is suitable for AB model, three-phase 200~240V is suitable for A2 model, and three-phase 380~480V is suitable for A4 model. It is strictly prohibited to connect AC power to the output terminals U/V/W.

Protection device: Each power phase must be equipped with a fuse or circuit breaker. MX2 integrates solid-state short-circuit protection internally, but cannot replace branch circuit protection.

Environmental requirements: Installed indoors without corrosive gases, conductive dust, or direct sunlight, with an ambient temperature of -10~50 ℃ and humidity of 20~90% without condensation.

Mechanical installation and heat dissipation

The MX2 series offers two levels of protection: IP20 and IP54. IP20 is suitable for installation inside standard control cabinets, while IP54 can be used in situations with certain dust and waterproof requirements.

2.1 Installation direction and spacing

The frequency converter must be installed vertically on flame-retardant materials (such as metal plates) with the heat sink facing upwards. To ensure air convection and heat dissipation, it is necessary to reserve the following space:

Above 10cm above and below, and above 5cm on both sides.

If multiple frequency converters are installed side by side (with a lateral spacing of 0), they must be downgraded for use, the ambient temperature must not exceed 40 ℃, and the carrier frequency must be correspondingly reduced.

Avoid installing the frequency converter directly above heating elements such as braking resistors and reactors.

2.2 Installation steps (IP20)

Insert the upper part of the back of the frequency converter into the 35mm DIN rail, and then press the lower part until the buckle engages.

For high-power models (≥ 3.7kW), screws should be used to fix them through the mounting holes on the heat sink.

When disassembling, first disconnect the power and wait for 10 minutes, then press down on the unlocking mechanism to pull out the lower part of the inverter from the guide rail.

2.3 Ventilation protection

During the wiring and installation process, paper tape should be used to temporarily cover the ventilation openings at the top and bottom of the inverter to prevent metal shavings and wire ends from entering the interior. Be sure to remove the cover before powering on.

Power and control terminal wiring

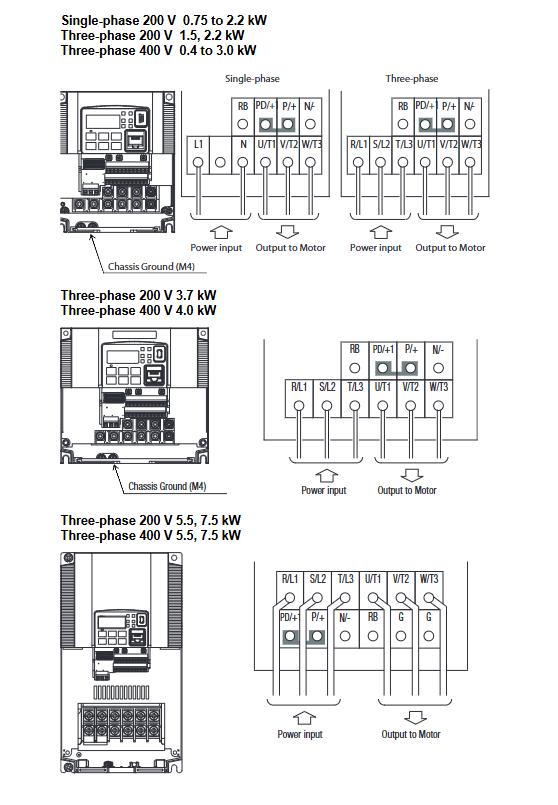

3.1 Main circuit terminals

Power input: single-phase type connected to L1 and N; Three phase connection: R/L1, S/L2, T/L3. Please note that the specifications of the power cord should comply with the recommended AWG values in the manual (such as using AWG16 and 75 ℃ copper wire below 1.5kW).

Motor output: connected to U/T1, V/T2, W/T3. It is prohibited to install phase capacitors or surge absorbers on the output side. If the length of the motor cable exceeds 20m (400V level), it is recommended to install an output reactor to suppress reflected voltage.

DC reactor: Short circuiting pieces are installed between terminals+1 and P/+2 at the factory. If an external DC reactor is required, first remove the short-circuit wire; If not used, the short connector must be retained.

Braking resistor: connected to P/+and RB terminals. Built in brake chopper, b090 (brake utilization rate) and b095 (brake action selection) need to be set.

3.2 Control terminal wiring

The control terminal is located behind the front cover plate and uses pluggable terminals. The main signals include:

Terminal Function Description

P24 24V internal power supply 100mA, for logic input use

PLC input common terminal selects source or drain logic through short circuiting

1-7 intelligent inputs can be configured with over 50 functions (such as FW, RV, CF1, etc.)

11,12 open collector electrode output maximum 50mA/27V, can be configured with RUN, FA1, etc

AL0~AL2 relay output 1C contact, default alarm output

O. OI analog input 0~10V voltage or 4~20mA current, input impedance 10k Ω/100 Ω

AM analog output 0~10V, can monitor frequency, current, etc

EA, EB pulse input EA up to 32kHz, used for frequency setting or encoder feedback

SP, SN RS485 communication Modbus RTU, built-in 200 Ω terminal resistor (dip switch)

3.3 Source/Drain Switching

By changing the short-circuit position between PLC and P24, L:

Source type: Short circuit PLC and L, then connect P24 to the input terminal and turn it on.

Leakage type: Short circuit PLC and P24, then connect L to the input terminal and turn it on.

The factory default is the source type. The power must be turned off before changing the short-circuit.

Keyboard operation and basic parameter settings

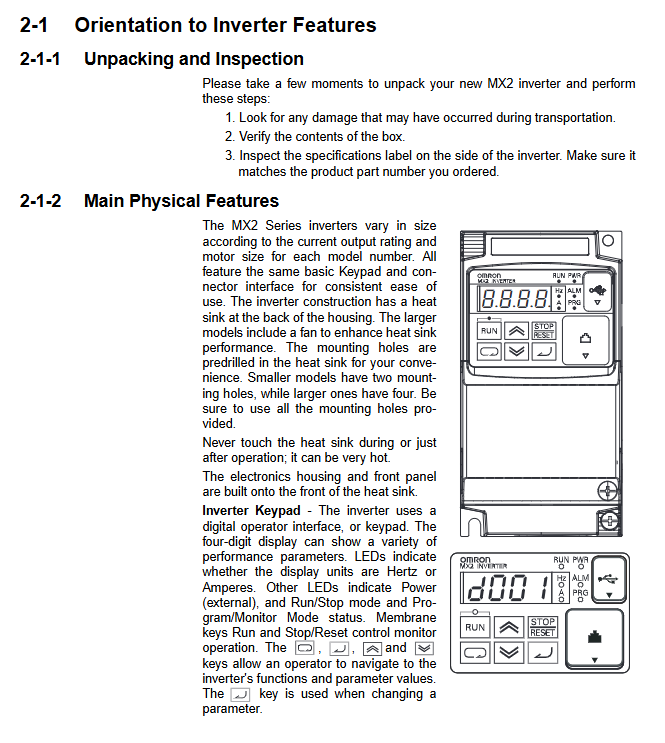

MX2 comes standard with a 4-digit 7-segment LED keyboard with Run, Stop/Reset, directional keys, and setup keys. Monitor and set through parameter groups (D/F/A/B/C/H/P).

4.1 Inspection before power on test

Confirm that the short connector is not missing between+1 and P/+2.

Confirm that the motor is disconnected from the load.

Confirm that the power supply voltage is correct and the grounding is reliable.

4.2 Minimum necessary parameter settings

The following steps take keyboard control as an example:

Set frequency command source (A001): Set to 02 and select the digital operator (F001 set value).

Set the command source (A002) to 02 and select the RUN/STOP key on the keyboard.

Set the motor fundamental frequency (A003): Set it to 50.0 or 60.0Hz according to the motor nameplate.

Set motor voltage (A082): 230V for 200V level and 400V for 400V level.

Set motor current (b012): generally set as the percentage of the rated current of the motor divided by the rated current of the frequency converter, or directly input the current value (range 20%~100%).

Set the number of motor poles (H004): For common 4-pole motors, choose 4.

Acceleration and deceleration time (F002/F003): default 10 seconds, adjustable as needed.

After completing the above settings, press the RUN button and the motor should be able to start normally.

Common Function Parameter Analysis

5.1 Multi speed operation

By configuring the intelligent input terminals CF1~CF4 (corresponding to C001~C007 set as 02~05), 16 preset speeds (A020~A035) can be selected in combination. A019 is set to 00 as a binary combination and 01 as a bitwise operation.

5.2 PID Control

When enabling constant pressure/constant current control for water pumps, fans, etc., set A071 to 01 (enabled) and set:

A072: Proportional gain

A073: Integral time (Ti, set to 0 to disable integral)

A074: Differential time

A076: Feedback signal source (O voltage or OI current)

A075: Feedback range scaling.

The PID output can be limited to A078 (%) and excessive deviation can be monitored through the intelligent output terminal [OD].

5.3 DC braking

Used for quick shutdown or positioning. Set A051=01 (braking when stopped), A052 is the starting frequency of braking, A054 is the braking power (0~100%), and A055 is the braking time. For high inertia loads, it can be used in conjunction with external braking resistors.

5.4 Carrier frequency and derating

The adjustable range of b083 is 2.0~15kHz. High carrier frequency reduces motor noise, but increases frequency converter heating and leakage current. When the ambient temperature exceeds 40 ℃ or when installed side by side, the carrier frequency or output current must be reduced according to the derating curve in the manual.

Fault code analysis and troubleshooting

When the MX2 frequency converter malfunctions, the digital display shows E xxx and the ALARM light is on. The following are common faults and their solutions:

Common reasons and solutions for code names

E01 constant speed overcurrent output short circuit, motor jamming, excessive load check output cable and motor insulation to reduce load

E02 deceleration overcurrent, too short deceleration time, extended deceleration time (F003) or enabled overvoltage suppression (b130)

E03 Acceleration overcurrent, short acceleration time, high torque boost, extended acceleration time (F002), reduced manual torque boost (A042)

E05 motor overload: The motor has been overloaded for a long time and the electronic thermal protection is set improperly. Check the load and adjust b012 to the rated current of the motor

E06 brake resistor overload brake usage rate exceeds b090 set to reduce brake load or increase b090, check the brake resistor

E07 Excessive regenerative energy during overvoltage deceleration prolongs deceleration time, or external braking resistor is connected

E09 Under voltage input voltage too low, instantaneous power outage check power supply, enable instantaneous power outage and restart (b001~b005)

E12 external trip EXT terminal input valid check external signal

E13 USP Error: When powered on, the running command exists and the USP function is enabled. First, disconnect the running command and then reset it

E14 grounding fault output side short circuit to ground inspection motor and cable insulation resistance

E21 frequency converter overheating heat sink temperature exceeds threshold, fan failure or blockage. Clean the heat sink and check the cooling fan

E30 drive error IGBT instantaneous overcurrent power outage, check if the output is short circuited, restart is ineffective and needs to be reported for repair

E35 thermistor tripped, motor temperature is too high, PTC input exceeds limit, check motor cooling, confirm PTC wiring is correct

E41 Modbus communication error communication timeout or CRC error check wiring, baud rate, station number, C076 set to 02 can be ignored

E80 encoder disconnection PG feedback signal loss check encoder wiring and power supply

After the fault occurs, the last 6 fault records (including frequency, current, voltage, and operating time at the time of the fault) can be viewed through d081~d086. To clear the fault, press the Stop/Reset button or reset it through terminal RS.

Intelligent input/output terminal configuration

7.1 Allocation of Input Terminal Functions (C001~C007)

Each terminal can be assigned a functional code. Common code:

00: FW (running forward)

01: RV (reverse operation)

02~05: CF1~CF4 (multi-stage speed selection)

06: JG (Jogging)

07: DB (External DC Braking)

11: FRS (Free Parking)

12: EXT (External Fault)

13: USP (Activate Protection)

15: SFT (Soft Lock)

16: AT (Analog Voltage/Current Selection)

18: RS (Reset)

23: PID (PID disabled)

27/28: UP/DWN (remote frequency adjustment)

Corresponding to each input, NO/NC can also be set (C011~C017, 00 is normally open, 01 is normally closed).

7.2 Function allocation of output terminals (C021, C022, C026)

00: RUN (Running)

01: FA1 (frequency arrival)

02: FA2 (exceeding the set frequency)

03: OL (Overload Warning)

05: AL (alarm output, default relay)

07: OTQ (over torque)

10: TRQ (in torque limit)

11: RNT (Run Time Up)

12: ONT (power on time up)

13: THM (Thermal Warning)

19: BRK (Brake Release)

20: BER (Brake Failure)

21: ZS (zero speed detection)

22: DSE (excessive speed deviation)

23: POK (positioning completed)

The output delay time can be set to ON/OFF delay (0-100 seconds) through C130~C141.

Modbus communication configuration

MX2 supports Modbus RTU protocol through RS485, which can complete the start stop, frequency setting, and status reading of the frequency converter.

8.1 Communication parameter settings

Parameter Name Recommended Value Description

C071 baud rate 05 (9600bps) or 06 (19200bps) needs to be consistent with the main station

C072 station numbers 1-247 are unique for each station

C074 Parity Check 00 No Check/01 Even/02 Odd Main Station Corresponding

C075 Stop bit 01 (1 bit) or 02 (2 bits)

C076 communication error action 02 (ignored), 00 (tripped) are generally set to 02 to avoid tripping

C077 communication timeout 0.00 (disabled) or 0.1-99.99 seconds

8.2 Register Address

Control coil (function code 01/05/0F):

0001H: Run Command (1=Run)

0002H: Direction (1=Reverse)

0003H: External trip

0004H: Reset

Keep register (function code 03/06/10):

0001H (high and low bytes): Output frequency setting (F001), unit 0.01Hz

1103H~1104H: Acceleration time 1 (F002), unit 0.01 seconds

1201H: Frequency source selection (A001)

When using Modbus to write registers, if permanent saving is required, write 1 (ENTER command) to 0900H, otherwise restore the original value after power failure. Note that the write life of EEPROM is limited, and unnecessary save operations should be reduced.

Safety Stop Function (STO)

The MX2 meets the safety levels of ISO 13849-1 PLd and IEC 61508 SIL2, and provides a 'Safe Torque Off' function. By disconnecting the two safety input channels GS1 and GS2, the output transistor drive can be cut off within 200ms, achieving the stop category 0 specified in EN60204-1.

9.1 Wiring Requirements

Connect the output of safety relays (such as G9SX, NE1A) to terminals 3 (GS1) and 4 (GS2), and connect the common terminal to L (short-circuit PLC-L for source logic).

Terminal 11 can be configured as an EDM (External Device Monitoring) output to provide feedback on the contact status of the safety relay.

GS1 and GS2 must be disconnected simultaneously to reliably shut down; If only one channel is disconnected, the frequency converter will still stop outputting, but EDM will not be activated, indicating a wiring fault.

It is recommended to use shielded twisted pair cables for secure input cables, with a length not exceeding 30m.

9.2 Parameter Settings

Set C003 and C004 to 77 (GS1) and 78 (GS2), respectively, and set C013/C014 to 01 (normally closed, as the safety relay's normally closed contact output).

Set b145 to 01 (trip when safety input is disconnected, display E37).

Set C021 to 62 (EDM) and C031 to 00 (normally open).

9.3 Attention

STO does not cut off the main circuit power supply, so during maintenance, it is still necessary to disconnect the power supply and implement locking/tagging procedures.

Maintenance and Life Assessment

MX2 has built-in lifespan monitoring function, which allows you to view the lifespan status of capacitors and cooling fans through d022.

Electrolytic capacitors: Their lifespan is significantly affected by environmental temperature. Under the conditions of 40 ℃, 80% load, and 24-hour continuous operation, the design life is about 10 years. For every 10 ℃ increase in temperature, the lifespan is halved.

Cooling fan: can be set to run normally or only rotate during operation (b092=01). When the fan lifespan warning (WAF output or d022 display) is triggered, it should be replaced in a timely manner.

Regular inspection: Check the wiring tightening torque, cleanliness of the heat sink, and fan noise once a year. Use a 500V megohmmeter to test the insulation resistance of the main circuit to ground (all peripheral connections must be disconnected), which should be greater than 5M Ω.
