In modern factory automation, the design and maintenance of safety control circuits are the core of ensuring the safety of personnel and equipment. The OMRON G9SX series flexible safety unit is an ideal choice for building safety control systems from basic emergency stops to complex areas due to its logical AND connection function, configurable power-off delay, and high-level safety certification. This guide will provide an in-depth analysis of the technical specifications, system configuration, LED status diagnosis, and common troubleshooting methods of the G9SX series (including Advanced Unit G9SX-AD, Basic Unit G9SX-BC, Guard Switching Unit G9SX-GS, and Expansion Unit G9SX-EX), helping engineers quickly locate problems on site and optimize system design.

Core Models and Selection Points of G9SX Series

The G9SX series is not a single product, but a family, with each member optimized for different levels of security control and output requirements.

Advanced Unit (such as G9SX-AD322-T15):

Core feature: Integrated semiconductor safety output (instantaneous and power-off delay). Its biggest highlight is the logical AND gate connection function. A high-level unit can transmit its own safety output state (signal "a") to another downstream high-level unit, which performs a logical "AND" operation on this signal and its own input (signal "b") before outputting it. This provides great flexibility for building graded safety zones, such as machines only operating when emergency stops are not pressed and protective doors are closed.

Power outage delay: available in two models: T15 (0-15 seconds, adjustable in 16 gears) and T150 (0-150 seconds). The delay time is set by two identical dip switches before and after, which must be consistent, otherwise the unit will report an error.

Output capability: Each semiconductor can safely output a maximum load current of 0.8A DC. When installed side by side, the output should be reduced to 0.4A/output.

Basic Unit (such as G9SX-BC202):

Core feature: Provides 2 instantaneous semiconductor safety outputs with no power outage delay function. Can serve as a signal source in logical AND gate connections, providing secure signals to subsequent advanced units.

Typical application: Independent small safety circuits, such as a single emergency stop button controlling a contactor.

Safety Guard Switching Unit, G9SX-GS226-T15)：

Core feature: This is the most powerful unit in the G9SX series, supporting both automatic and manual switching modes of operation.

Automatic switching: suitable for areas where operators and robots work together. By using two independent safety inputs (Safety Input A and B) to distinguish between personnel intrusion and machine intrusion, a partial stop logic of "machine stops when personnel enter and continues when machine enters" is achieved, significantly improving production efficiency.

Manual switching: Switch between "normal operation mode" and "maintenance mode" through the mode selection switch (SPST-NO+SPS T-NC contacts). In maintenance mode, certain safety interlocks (such as safety door switches) can be bypassed, but there are usually limitations (such as only low-speed operation) to facilitate maintenance.

External indicator light output (UA, UB): It can directly drive indicator lights (incandescent or LED) to indicate to the operator which safety input is currently disabled, and the status is clear at a glance.

Expansion Unit, G9SX-EX401)：

Core feature: Used to expand the capacity of secure output contacts. It provides 4 relay outputs (PST-NO, i.e. forced pilot contacts) that can switch between 3A 250VAC or 3A 30VDC loads.

Connection restriction: A high-level unit or G9SX-GS unit can connect up to 5 expansion units (which can be a mixture of instantaneous and OFF delay types). The power-off delay of the expansion unit is synchronized with the main unit.

Logical AND gate connection: the cornerstone of building complex safety circuits

Logical AND gate connection is the essence of implementing distributed security control in the G9SX series. Its essence is to use the safety output status of the upstream unit (output through L1 and L2 terminals) as an input condition for the downstream unit.

Connection rules:

The logic AND gate outputs (L1, L2) of a high-level unit (such as G9SX-AD322) can be connected to the logic AND gate inputs (T41, T42) of up to four downstream high-level units.

Up to 5 levels of series connection can be achieved, but it should be noted that with each additional level, the system's response time and operation time will accumulate (see timing analysis below for details).

The total number of Advanced Units and Basic Units connected through logical AND gates in the entire system shall not exceed 20.

Practical Configuration:

Sender: As a signal source unit (such as G9SX-BC connected to an emergency stop switch), its logic AND gate connection preset switch must be set to OFF (only outputs signals, does not participate in AND operation).

Receiver: The unit that needs to perform the "AND" operation must have its logical AND gate connected to the preset switch, which must be set to AND (enabled). When the logic AND gate input (T41) of the receiving end is HIGH (i.e. upstream output ON) and its own Safety Input condition is met, its safety output can be ON.

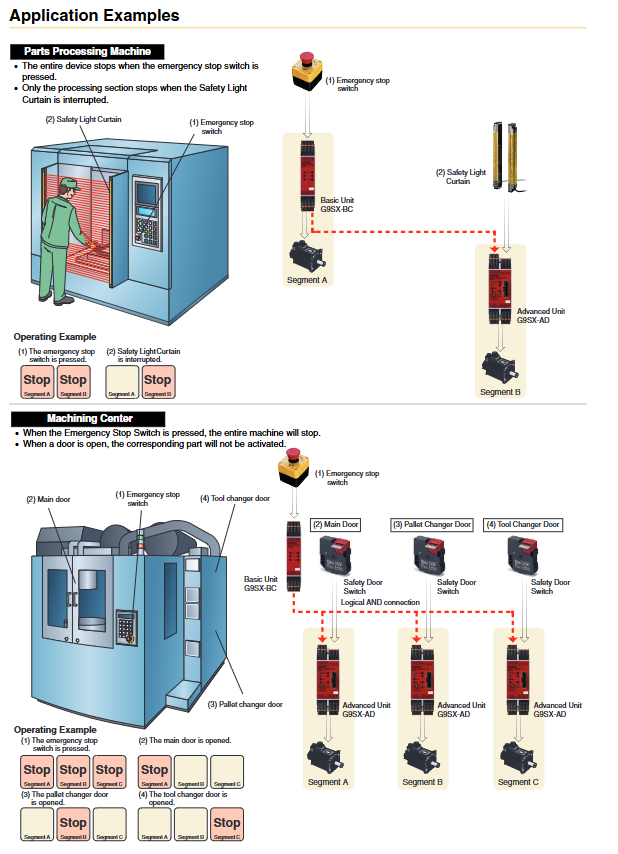

Typical scenario: A device has two hazardous areas. Zone 1 is protected by a safety light curtain, while Zone 2 is protected by a safety door. The equipment can only operate at full speed when the light curtain is unobstructed and the safety door is closed. By connecting logical AND gates, this "double conditional confirmation" can be easily achieved.

Input configuration and cross fault detection

The safety input of the G9SX unit supports 1-channel or 2-channel connections and has the ability to detect cross faults, which is crucial for meeting ISO 13849-1 Cat. 2/3/4.

Dual channel input (2-channel):

Used to connect safety door switches or emergency stop buttons with Direct Opening Mechanism. T11/T12 and T21/T22 must receive the ON signal simultaneously for the safety output to turn ON.

When the Y1 terminal is open circuited, the cross fault detection function is enabled. The system will continuously monitor whether there is a short circuit between T11 and T12, and between T21 and T22. Once detected, the safety output will be immediately locked and the ERR indicator light will be lit.

When the Y1 terminal is connected to+24V, the cross fault detection function is disabled. This mode is suitable for connecting safety sensors with self diagnostic output pulses (such as safety light curtains, laser scanners), as the outputs of these sensors themselves contain test pulses and cannot conflict with internal cross detection.

Single channel input (1-channel):

Only connect T11/T12, keep T21/T22 open circuit. At this point, Y1 must be connected to+24V to disable cross detection. Suitable for simple circuits that do not require Cat.4.

Reset mode and feedback monitoring

The correct configuration of reset logic is the key to preventing accidental restarts. G9SX defines reset behavior through terminals T31, T32, and T33.

Auto Reset:

Wiring: T32 short circuited to+24V.

Behavior: When all safety input conditions are met, the safety output automatically turns ON immediately, without the need for manual intervention. Suitable for remote control or hazardous areas that are not frequently accessed.

Manual Reset:

Wiring: T33 short circuited to+24V.

Behavior: After all safety input conditions are met, an external reset signal is required: T31 must go from ON ->OFF ->ON (i.e. press and release a reset button). This is the most commonly used mode, which requires the operator to confirm that the danger has been resolved before restarting.

Feedback loop: T31 terminal is usually used to connect auxiliary normally closed contacts of external contactors (such as KM1, KM2). When the safety output drives the contactor to disconnect, its auxiliary contacts close and send the signal back to T31. If the feedback detected by T31 does not match expectations when the safety output is turned on (such as contact welding adhesion), G9SX will detect the fault and lock the output to prevent restarting in a dangerous state.

Fault diagnosis: LED status codes and solutions

The G9SX series is equipped with detailed LED indicator lights, which are the first-hand tool for on-site troubleshooting. Understanding the flashing patterns of these indicator lights can quickly pinpoint the root cause of the problem.

LED status fault description Possible causes Checkpoints and countermeasures

ERR flashing

Other lights do not light up, internal circuit or electromagnetic interference fault 1. Strong electromagnetic interference

2. Internal circuit damage 1. Check on-site grounding and anti-interference measures

2. Replace the unit

ERR is constantly on

T1/T2/T6/T7 flashing safety input channel fault 1. Input wiring error or disconnection

2. Cross fault detection configuration error

3. Input device contact adhesion 1. Check T11/T12 or T21/T22 wiring

2. Check the Y1/Y2 wiring (open circuit is enabled,+24V is disabled)

3. Check the safety switch or sensor

ERR is constantly on

FB flashing feedback/reset input fault 1. External contactor auxiliary contact feedback incorrect

2. T31/T32/T33 wiring error

3. Expansion unit connection issue 1. Check if the NC contacts of the contactor are open and closed normally

2. Confirm the automatic/manual reset wiring

3. Check the expansion unit cables and terminal connectors

ERR is constantly on

EI flashing instantaneous safety output fault 1. Safety output (S14/S22) short circuit or overload

2. Logical AND gate output (L1) wiring fault

3. The ambient temperature is too high. 1. Check the output load (whether the current exceeds 0.8A)

2. Check the wiring between L1 and downstream T41/T42

3. Check unit spacing and ventilation

ERR is constantly on

ED flashing power-off delay output fault 1. S44/S54 output overload or short circuit

2. The OFF delay dip switch settings on the front and rear panels are inconsistent. 1. Check the load current

2. Confirm that the positions of the front and rear dip switches are exactly the same

ERR is constantly on

AND flashing logic and AND input fault 1. T41/T42 wiring length exceeds 100 meters

2. Logic and gate signal branches exceed 4 units

3. The AND switch at the receiving end is not set to "AND". 1. Shorten the wiring length or use shielded cables

2. Check the branch topology

3. Confirm the position of the receiver unit switch

ERR is constantly on

UA/UB alternate flashing mode switching function failure (only G9SX-GS) 1. Incorrect setting of switching function switch (Auto/Manual)

2. Mode selection input (M1, M2) wiring error or switching time exceeding 450ms 1. Confirm that the switch position is consistent with the actual requirements

2. Check the M1/M2 wiring to ensure quick switching action

All lights (except PWR) are flashing. The power supply voltage is abnormal and exceeds the rated range (-15% to+10%). Use a multimeter to measure the A1/A2 terminal voltage (which should be 24VDC ± 10%)

Important reminder: After troubleshooting and repairing the G9SX, it must be powered on again (power off and then back on) in order to clear the locked state and restore normal operation.

System timing response analysis and safety distance calculation

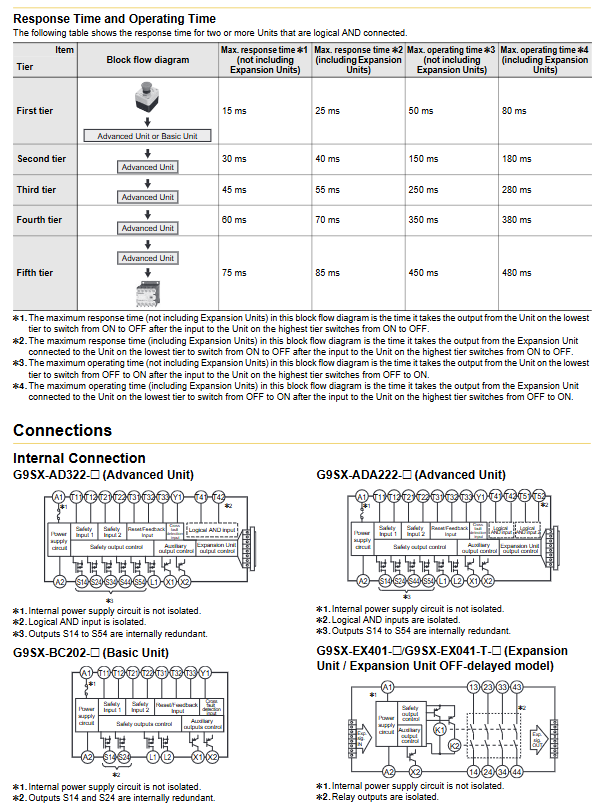

For systems involving logic and gate series connection, response time will accumulate step by step, which directly affects the calculation of safety distance. According to the manual data:

Maximum response time (ON → OFF, excluding expansion units) and maximum operation time (OFF → ON, excluding expansion units) of the serial level

Level 1 (Basic/Advanced Unit) 15 ms 50 ms

Second level 30 ms (+15ms) 150 ms (+100ms)

Third level 45 ms 250 ms

Level 4 60 ms 350 ms

Level 5 75 ms 450 ms

*Note: If an expansion unit is connected, the response/operation time will be increased by an additional 10-30ms on top of the above. *

Calculation basis for safe distance (refer to ISO 13855):

S=K×T+CS=K×T+C

S: Safe distance

K: Approaching speed (personnel: 1.6m/s; Machine: Need to consult authoritative institutions)

T: Total response time=machine stop time+G9SX system response time (from input change to output disconnection).

C: The additional distance depends on the minimum detectable object diameter of the safety light curtain.

Engineer practice: When designing a multi-level logic AND gate series system, the accumulated response time of each level must be included in the T value. For example, a 5-level series system has a maximum response time of 75ms from the highest level input OFF to the lowest level output OFF, which is 5 times slower than the 15ms of a single-stage system. If the stopping time of the machine is 50ms, the total T=125ms, and the corresponding safety distance will significantly increase.

Best practices for installation and maintenance

Physical installation:

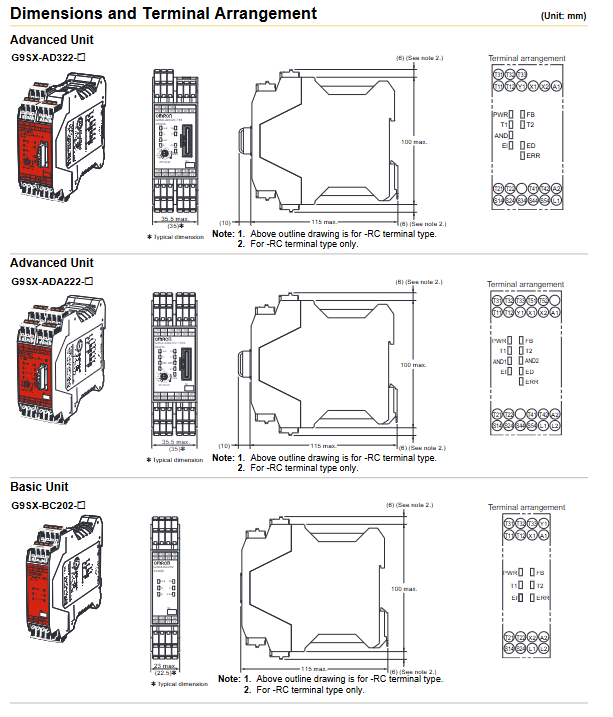

The G9SX unit should be installed in a control cabinet with a protection level of IP54 or higher.

At least 25mm of space should be reserved on both sides, with at least 50mm of space above and below to ensure heat dissipation and wiring.

Install using DIN rails and ensure they are locked in place.

Wiring specifications:

The power terminal A2 must be grounded to enhance its ability to resist electromagnetic interference.

For logical AND gate connections, twisted pair shielded cables must be used, with a maximum length of no more than 100 meters.

The external wiring impedance of safety input and reset input should be less than 100 Ω, and the capacitance should be less than 10nF.

Pre start check and regular verification:

After the first power on, the device will display the current setting status (such as cross detection mode, reset mode, logic AND gate mode, switching function mode) through LED indicator lights within the first 3 seconds. Engineers can use this to quickly verify configurations.

Daily check: Confirm that the ERR indicator light is not constantly on or flashing. By manually triggering safety inputs (such as pressing emergency stop, opening light curtain), verify whether the corresponding safety outputs and indicator lights (EI, ED, UA, UB) respond normally.

Half yearly inspection: check whether the auxiliary contacts of the external contactor are reliably switched; Check whether the connecting cables are loose or worn; For the G9SX-EX expansion unit, due to the electrical lifespan (100000 cycles under rated load) and mechanical lifespan (5 million cycles) of its relay contacts, its remaining lifespan needs to be evaluated.

Precautions for replacing faulty units:

Power off operation: Before replacement, be sure to cut off all power to G9SX.

Record settings: Record all dip switch positions on the old unit (OFF delay time, Logical AND switch, Auto/Manual switch on G9SX-GS).

Terminal block reuse: The G9SX series uses pluggable terminal blocks (screw type or spring cage type). The terminal block of the old unit can be completely pulled out and inserted into the new unit without the need for rewiring. But it is necessary to check whether the Code Marks are consistent to prevent insertion errors.

Configuration recovery: Set the dip switch of the new unit to be exactly the same as the old unit.

Power on test: After replacement, power on again and perform a complete functional test to ensure that all safety functions are functioning properly.
