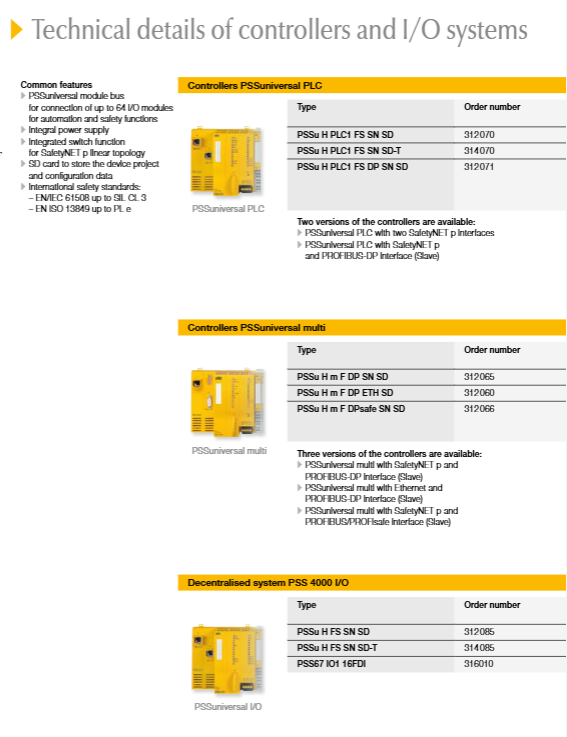

Pilz PSS 4000 distributed safety control

Typical scenario: Safety door monitoring of high-speed stamping machines. Once the door is opened, the FCU cuts off the STO input of the servo drive in less than 0.5 milliseconds, which is several orders of magnitude faster than communicating through the network.

5.3 Industry Application Cases

Automotive painting line: On the bumper painting line of Yanfeng Plastic Omnium, PSS 4000 manages a large number of safety light curtains, emergency stop cables, and supports adding I/O modules at will without rewriting the program.

Rail Transit: At Bombardier Transportation Company, PSS 4000 monitors vehicle speed and triggers emergency braking when uncontrolled acceleration is detected. At the intersection of Antwerp Metro, the PSS 4000 with SIL 4 capability (specially certified) replaced the old control board.

Packaging Machinery: A potato chip manufacturer has replaced the original PNOZmulti configuration system with PSS 4000, improving production line availability while maintaining a high level of safety.

Press modification: Replace the mechanical rotating cam with an electronic solution (PSSuniversal PLC+FS_CamController+PSENenco encoder) that meets the EN 692 standard and supports dynamic adjustment of stroke length.

Maintenance and Engineering Optimization Suggestions

6.1 Daily Maintenance Checklist

Check the SafetyNET connectors for looseness and fiber optic connectors for contamination every quarter.

Clean the dust inside the control cabinet every six months to ensure good heat dissipation of the I/O module.

Perform a safety function test once a year: trigger each emergency stop, light barrier, and safety door to confirm that PSS 4000 correctly cuts off the hazard source.

Backup project files (in. paz format) to the company server, while also backing up the contents of the SD card.

6.2 Performance Optimization Techniques

Reduce network load: Separate periodic data from non periodic diagnostic data. Do not set non essential variables to loop transfer.

Optimize program structure: Place time critical logic (such as 1ms response) in FCU or independent fast tasks, and regular logic in slow tasks.

Using ring topology: Enable MRP ring network redundancy, single point disconnection does not affect communication.

6.3 Upgrade and Migration Strategy

If your existing system is based on PSS 3000 or PNOZmulti, when upgrading to PSS 4000, you should pay attention to:

The safety logic can be manually converted: the logic of the original safety relay/configuration module can be re implemented graphically using PASmulti.

Fieldbus integration: Connected to the upper level PLC through gateway modules (such as PROFIBUS-DP slave stations), retaining the original SCADA interface.

Retain the original sensor: The PSS 4000 input module is compatible with 24V DC sensors and does not require replacement.
