Rexroth EcoDrive 03 Drive Controller: A Comprehensive Guide to Installing and Applying High Performance Motion Control

In the field of industrial automation and precision motion control, the performance, reliability, and safety of the drive controller directly determine the operational quality of the entire system. The EcoDrive 03 series drive controllers launched by Bosch Rexroth, especially the DKC03-040, DKC03-100, and DKC03-200 models, represent its maturity and innovation in servo drive technology. This article is based on the official technical manual, systematically interpreting the technical specifications, safety standards, installation and wiring points, and usage precautions of this series of controllers, providing a comprehensive and in-depth operation guide for engineering design, installation, commissioning, and maintenance personnel.

Product Overview and Positioning

EcoDrive 03 is a driver series designed by Rexroth to meet mid to high performance servo applications, suitable for various industrial machinery, machine tools, automated production lines, and other occasions. The DKC03 series is its core product, with the following typical features:

Comprehensive power coverage: providing three current levels of 040 (40A), 100 (100A), and 200 (200A), suitable for driving needs of servo motors ranging from small to large sizes.

High performance control: Supports servo control with high dynamic response, with a maximum output frequency of 1000Hz, meeting the requirements of precision positioning and synchronous motion.

Multi interface compatibility: Supports SERCOS, analog, parallel interfaces, and multiple fieldbuses (such as PROFIBUS-DP), making it easy to integrate into control systems of different architectures.

Compact and sturdy design: Adopting a modular structure, it meets the vibration, impact, and temperature requirements of industrial environments, and the protection level is suitable for installation inside control cabinets.

Core security standards: mandatory reading guidelines before operation

When using high-voltage and high-power driving equipment, safety is always the top priority. The manual extensively emphasizes the safety instructions that must be followed:

1. Electrical safety:

High voltage hazard: The main circuit voltage of the controller can reach 480V AC, and the DC bus voltage can reach up to 800V DC. Before operation, the power must be cut off and wait for at least 30 minutes to ensure that the DC bus capacitor discharges to a safe voltage (<50V) or below.

Grounding protection: The equipment grounding wire (PE) must use a copper wire with a cross-sectional area of not less than 10mm ², and ensure continuous grounding from the power supply to the motor throughout the entire process to discharge leakage currents up to>3.5mA.

Prohibit the use of residual current devices (RCD): Due to the high-frequency leakage current generated by the driver, circuit breakers or fuses should be used for overcurrent protection.

2. Mechanical and sports safety:

Dangerous motion protection: Driver failure, parameter errors, or sensor failures may cause unexpected motor movement. The safety isolation between personnel and the movement area must be achieved through peripheral safety circuits such as safety relays, light curtains, and protective barriers.

Vertical axis anti fall: The built-in motor brake or driver controlled brake cannot be used to ensure personal safety. The vertical axis must be equipped with additional mechanical locking, external braking or balancing devices to prevent falling after power failure.

Emergency stop function: The emergency stop button must be installed within reach of the operator and its function must be verified before starting.

3. Environment and personal safety:

High temperature surface: The temperature of the motor, driver, and reactor casing may exceed 60 ° C during operation, and the cooling time may last up to 140 minutes. Wear protective gloves when in contact.

Electromagnetic field effects: Strong electromagnetic fields may interfere with pacemakers, metal implants, or hearing aids. Relevant personnel should avoid approaching areas where electrical equipment is in operation.

4. Compliant use: The product can only be used for the application scenarios specified in the technical documentation and must be operated by trained and qualified personnel.

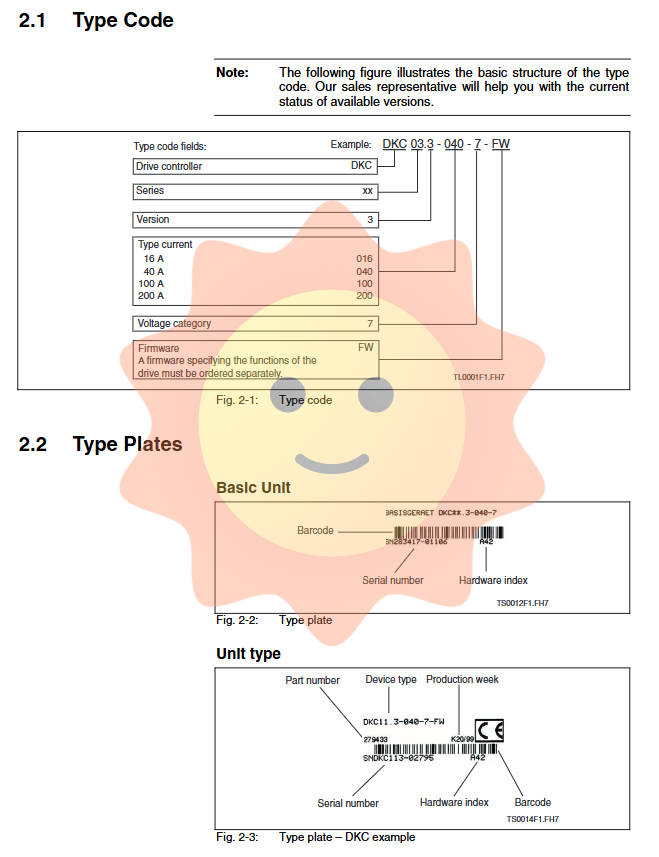

Technical specifications and mechanical dimensions

The key rated data of DKC03 series drives are shown in the following table:

Parameter symbol unit DKC03.3-040 DKC03.3-100 DKC03.3-200

Rated input voltage V V AC 200... 480 (single-phase/three-phase) 200... 480 (single-phase/three-phase) 200... 480 (single-phase/three-phase)

Maximum input current I2 L_cont A 16 40 70

Maximum output current I2 out_max A 40 100 200

Maximum output frequency f_out Hz 1000 1000 1000

Control voltage U-N 3 V DC 24 24 24

Working temperature: Tmax ° C 45 (rated), 55 (rated), 55 (rated), 45 (rated), 55 (rated), 55 (rated)

Power consumption (continuous) P_Diss_cont W 180 420 960

Weight m kg 5.7 9.7 19.5

Dimensions (H × W × D) - mm 360 × 65 × 261 360 × 105 × 261 360 × 230 × 261

Installation spacing requirements: To ensure sufficient heat dissipation, at least 150mm of space should be reserved at the top of the controller, and at least 80mm of space should be reserved at the bottom. When installing multiple drives side by side, it is important to ensure that the intake temperature does not exceed the allowable value.
