Troubleshooting Schneider Modicon TM3 Bus Expansion

6.2 Maximum Module Quantity Limit and Special Rules for Controllers

Not all controllers support 7 local modules. According to the table in the PDF:

TM221C16R/T and up to 5 others (limited by power consumption).

TM241 and TM251 have a maximum of 7.

If TM3DQ16R (relay output 16 points) is included in the configuration, some controllers may only be able to carry 6 because this module consumes a lot.

Verification method: Add a module on the "Configuration" page of Machine Expert, and the software will automatically calculate power consumption and prompt "Exceeding Capacity". If forcibly downloaded, the device may not work stably. Be sure to comply with the restrictions.

TeSys U motor starter interface module (TM3XTYS4) malfunction

The TM3XTYS4 module directly controls up to 4 TeSys U motor starters through RJ45 cables. FAQ:

7.1 Motor starter does not respond to control commands

Fault phenomenon:

The PLC output is set to 1, but the motor does not start and the corresponding output LED on TM3XTYS4 does not light up.

Diagnosis:

Check 24V power supply: TM3XTYS4 requires external 24V power supply for the coil (via screw terminals). Measure the supply voltage.

RJ45 cable: Use dedicated cable LU9Rxx (0.3m/1m/3m). Ordinary Ethernet cables may fail due to different pin definitions. The control interface of TeSys U requires Pin4=24V, Pin5=0V, Pin6=control signal, etc. Standard Ethernet cables usually use 1/2/3/6, which are not compatible.

Feedback input series connection: Each channel has three inputs (ready, running, fault), which are connected in series in the auxiliary contact circuit of the starter. If not connected or the contacts are disconnected, even if the output is normal, the module will prevent startup (safety interlock). Measure whether the input terminal is connected with a multimeter.

7.2 Fault detection channel false alarm

Phenomenon: The motor is running normally, but the PLC reads the "Detected fault" signal.

Possible reasons: The thermal overload relay has not been reset, or there is an internal fault storage in the motor starter. Press the reset button on the TeSys U control unit. If the alarm persists, check for motor phase loss or grounding.

Firmware updates and software compatibility issues

The TM3 module supports firmware upgrades through the TM3 bus without the need for disassembly. Upgrade failure may result in module bricking. Safe operation process:

In Machine Expert, click on "Update firmware" under "Device".

Only operate the modules that need to be upgraded separately, do not update multiple modules at the same time.

It is strictly prohibited to power off or disconnect the bus cable during the upgrade process.

If the upgrade fails, you can use the USB-B port (which is available in modules such as TM3BCEIP) to re burn with a dedicated recovery tool - Schneider technical support is required.

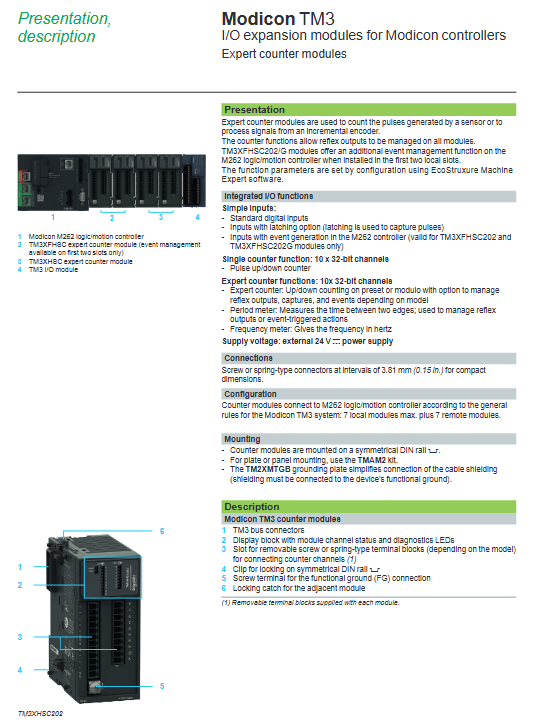

For the EcoStruxure Machine Expert version, the TM3 module requires version 1.1 or higher. Old versions of software (such as SoMachine V4.3) do not recognize newer modules such as TM3XFHSC202 and require software upgrade.
