Product basic information

Product positioning: It is a power supply module belonging to Schneider Modicon Quantum automation platform, supporting two working modes of "summable" or "standalone". Its core function is to provide stable DC power supply for this series of automation equipment (such as processors, I/O modules, etc.).

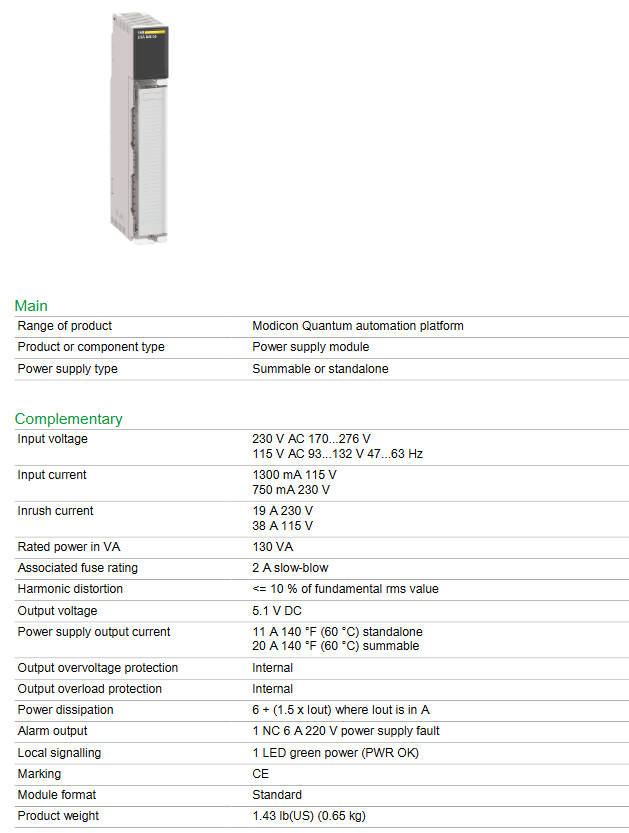

Core technical specifications

（1） Input and output parameters

Category specific parameters

Input specifications - Voltage: Supports 115 V AC (adaptation range 93-132 V), 230 V AC (adaptation range 170-276 V), frequency 47-63 Hz

-Current: 1300 mA at 115 V AC, 750 mA at 230 V AC

-Surge current: 38 A at 115 V AC, 19 A at 230 V AC

-Associated fuse specification: 2A slow melting type

Output specification - Voltage: Stable output of 5.1 V DC

-Current: 11 A in independent mode and 20 A in superposition mode at 60 ° C (140 ° F)

-Rated power: 130 VA

-Harmonic distortion: ≤ 10% of the effective value of the fundamental wave

The protection function includes built-in output overvoltage protection and output overload protection; Equipped with 1 normally closed (NC) alarm output (6 A 220 V) for power fault signal feedback

（2） Power consumption and indication

Power consumption calculation: The power loss formula is "6+(1.5 × Iout)" (Iout is the output current, unit A)

Local indication: 1 green LED indicator light (PWR OK), used to display the normal working status of the power supply

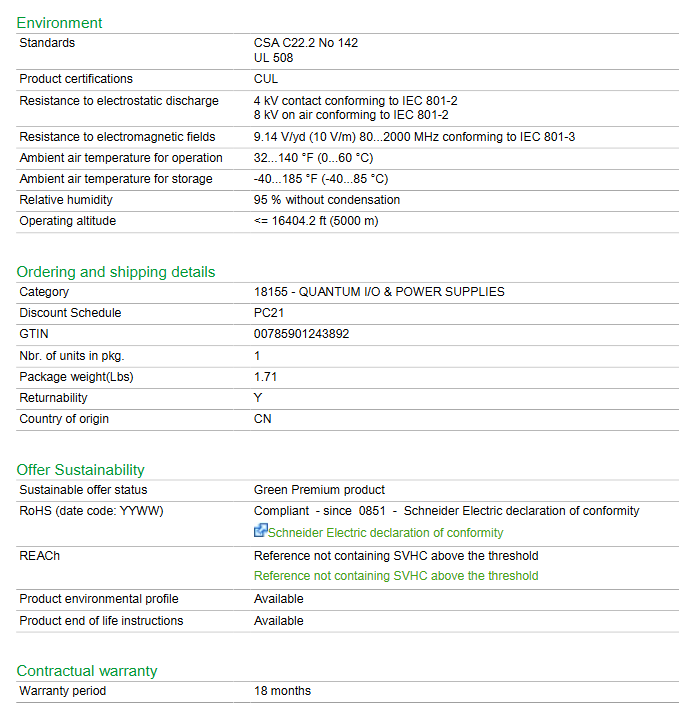

（3） Environmental adaptability

Working temperature: 0-60 ° C (32-140 ° F)

Storage temperature: -40-85 ° C (-40-185 ° F)

Relative humidity: 95% (without condensation)

Working altitude: ≤ 5000 m (16404.2 ft)

Anti interference capability:

Electrostatic discharge: Contact discharge 4 kV, air discharge 8 kV (compliant with IEC 801-2 standard)

Electromagnetic field resistance: 10 V/m in the frequency range of 80-2000 MHz (equivalent to 9.14 V/yd, in accordance with IEC 801-3 standard)

Compliance standards: Complies with CSA C22.2 No 142 and UL 508 standards

Physical and installation properties

Size and weight: The net weight of the module is 1.43 pounds (0.65 kg), and the weight of a single package is 1.71 pounds; The module format is standard and compatible with Modicon Quantum series 2, 3, 4, 6, 10, and 16 slot racks (corresponding rack size drawings provided).

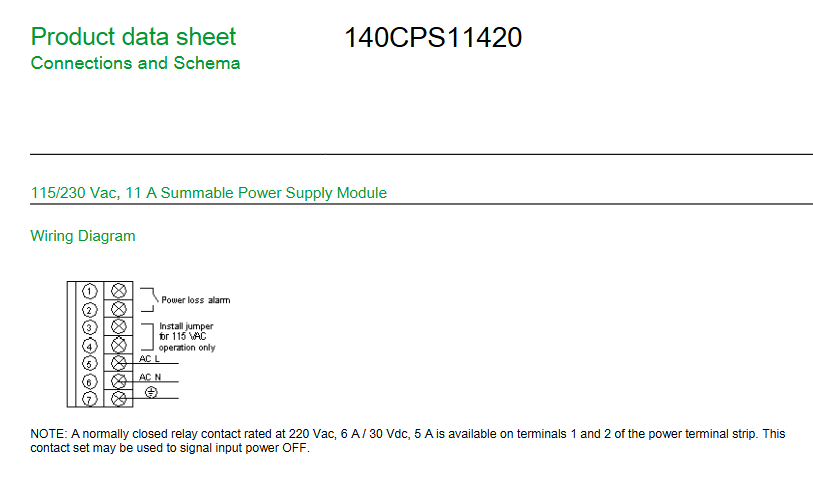

Wiring information: Provide a detailed wiring diagram that specifies the specifications of the power failure alarm relay contacts (terminals 1 and 2) as 220 V AC 6 A/30 V DC 5 A. This contact can be used to provide feedback on input power disconnection signals (only valid during device operation).

Ordering and logistics information

Category details

Product Category 18155-QUANTUM I/O&POWER SUPPLIES Category

Order identification discount plan PC21, Global Trade Item Code (GTIN) 00785901243892

Packaging specifications: Each package contains 1 product

The logistics attribute has a country of origin of China (CN) and supports returns (Returnability: Y)

Environmental Protection and Compliance

Environmental certification:

RoHS compliance: Compliant since batch 0851 (date code YYWW), providing Schneider Electric's declaration of conformity

REACh: Does not contain substances of high concern (SVHC) exceeding the threshold

Environmental Protection Document: Provide Product Environmental Profile and Product End of Life Instructions

Waste disposal: It is necessary to follow the relevant regulations for the disposal of industrial electronic waste (specific requirements for WEEE are not explicitly mentioned, but it conforms to the environmental positioning of Green Premium products)
