Schneider Modicon Quantum 140DRA84000 Discrete Output Module

Schneider Modicon Quantum 140DRA84000 Discrete Output Module

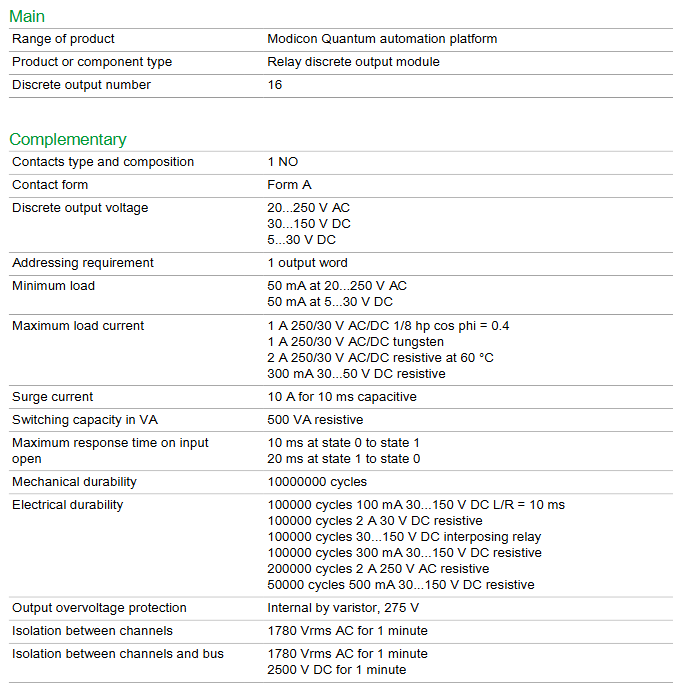

Core product features

1. Basic specifications

Platform: Modicon Quantum Automation Platform

Module type: Relay type discrete output module

Output quantity: 16 discrete outputs

Address requirement: 1 output word

Module form: Standard format

Net weight: 0.41kg

2. Contact and voltage parameters

Category specific parameters

Contact type 1 group normally open (1 NO), contact form is Form A

Discrete output voltage AC 20-250V, DC 30-150V DC, DC 5-30V DC

Minimum load ≥ 50mA at 20-250V AC, ≥ 50mA at 5-30V DC

Maximum load current 250/30V AC/DC (1/8 horsepower at power factor 0.4), tungsten wire load 1A; 250/30V AC/DC resistance load 2A at 60 ℃; 30-50V DC resistance load 300mA

10A under surge current capacitive load (continuous for 10ms)

Switching capacity (resistive load) 500VA

3. Response and Durability

Response time: ≤ 10ms when state 0 → 1, ≤ 20ms when state 1 → 0

Mechanical lifespan: 10000000 cycles

Electrical lifespan: varies depending on the load, such as 200000 cycles under 2A 250V AC resistive load, 50000 cycles under 500mA 30-150V DC resistive load, 100000 cycles under 100mA 30-150V DC (L/R=10ms), etc

4. Protection and isolation

Output overvoltage protection: built-in varistor (275V)

Isolation performance: Channel isolation 1780Vrms AC (lasting for 1 minute); Isolation between channel and bus: 1780Vrms AC (for 1 minute), 2500V DC (for 1 minute)

5. Power consumption and signal indication

Power consumption: 5.5W+(0.5W x number of enabled points)

Local indication: 16 green LEDs (display input status), 1 red LED (display external fault), 1 green LED (display bus communication normal)

Bus current requirement: 1100mA

Certification mark: CE

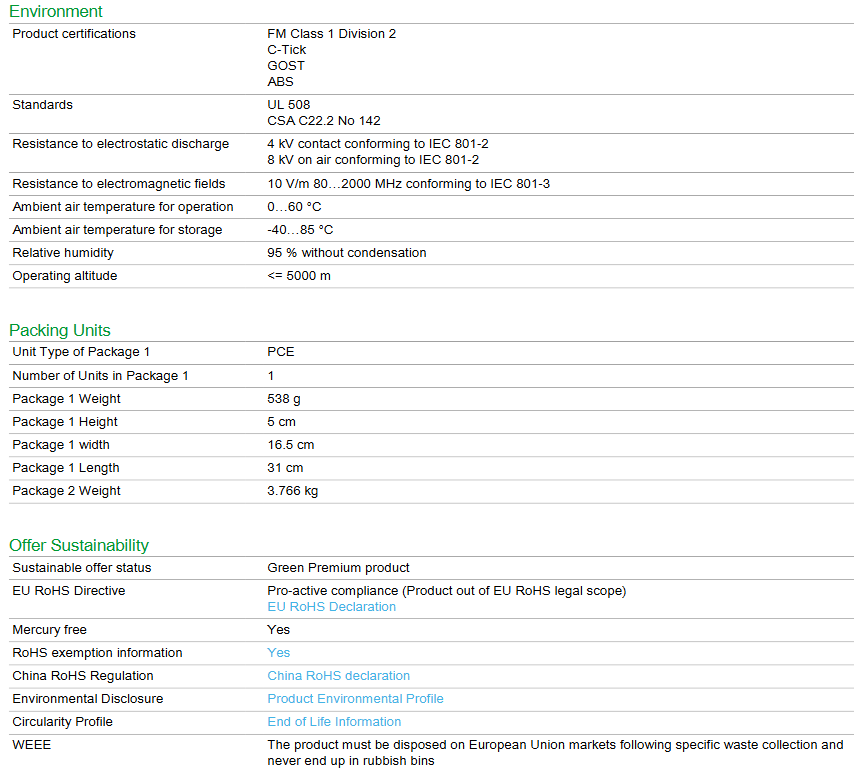

Environmental adaptability

1. Certification and Standards

Product certification: FM Class 1 Division 2, C-Tick, GOST, ABS

Following standards: UL 508, CSA C22.2 No 142

2. Environmental tolerance

Range of environmental indicator parameters

Working environment temperature 0-60 ℃

Storage environment temperature -40-85 ℃

Relative humidity 95% (no condensation)

Working altitude ≤ 5000m

Anti static discharge (IEC 801-2) air discharge 8kV, contact discharge 4kV

Anti electromagnetic field (IEC 801-3) at frequency of 80-2000MHz 10V/m

Packaging specifications

Packaging parameter details

Packaging 1 Unit Type PCE (piece)

Packaging 1 unit quantity 1 piece

Packaging 1 weighs 538g

Packaging size 1 (length x width x height) 31cm x 16.5cm x 5cm

Packaging 2 weighs 3.766kg

Sustainability and Compliance

Sustainable Status: Green Premium Products

RoHS compliance: Proactive compliance (products beyond the scope of EU RoHS laws, provide EU RoHS declaration), mercury free, can provide RoHS exemption information

China RoHS: Provide China RoHS Declaration

Environmental Disclosure: Product Environmental Profile can be obtained

Circular: Provide End of Life Information

WEEE requirements: In the EU market, specific waste recycling processes must be followed and cannot be mixed with ordinary garbage

Other

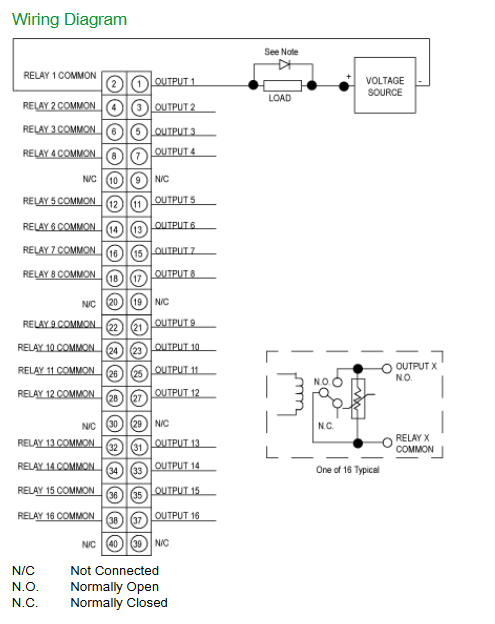

Wiring instructions: For the normally open output module of the relay, provide a schematic diagram of 16 relay wiring, marked with "N/C" (normally closed, not connected) and "N.O." (normally open), and connect the load and voltage source (LOAD, VOLTAGE SOURCE)

Installation rack: Supports 2 slots, 3 slots, 4 slots, 6 slots, 10 slots, and 16 slots rack installation, providing corresponding rack size parameters
