Product Core Basic Information and Positioning

Basic identification and functional positioning

Specific project content

Model 6EP1336-3BA10 (core ordering identifier, belonging to Siemens SITOP series power supply)

Product series SITOP modular (modular power supply series, supporting flexible combination and expansion, suitable for complex industrial power supply needs)

The core function is to convert AC input voltage into stable DC output voltage, providing reliable power supply for industrial automation equipment such as PLC, I/O modules, sensors, etc

Typical application scenarios include industrial automation control systems (such as SIMATIC S7 series PLC systems), mechanical equipment electrical control cabinets, sensor and actuator power supply circuits

Key electrical parameters

Electrical performance is the core indicator of power modules, with detailed documentation of input, output, and efficiency related parameters to ensure adaptability to different power grid environments and load requirements.

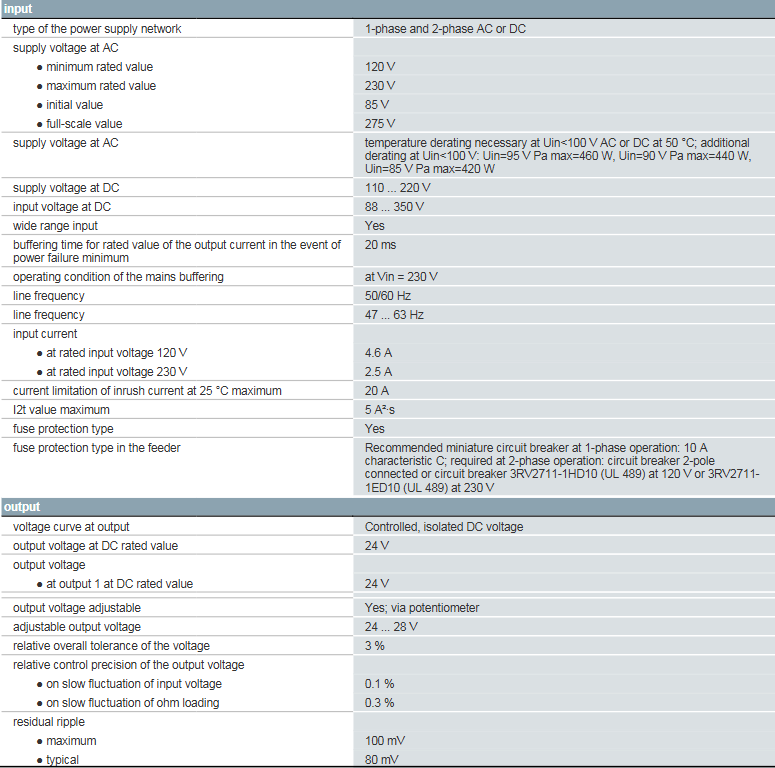

Parameter category specific specifications

Input characteristics - Input voltage range: 120/230V AC (± 15%), supports wide voltage adaptation, compatible with different regional power grids;

-Input frequency: 50/60Hz (± 5%), with strong adaptability to frequency fluctuations;

-Input current: approximately 4.5A at 120V AC and approximately 2.3A at 230V AC;

-Impulse current: Maximum 50A during cold start (230V AC input)

Output characteristics - Output voltage: 24V DC (adjustable through potentiometer, range 22.5~28V DC);

-Rated output current: 10A;

-Output power: 240W (at rated output);

-Output voltage ripple and noise: ≤ 50mVpp (under rated load), ensuring power supply stability and avoiding interference with sensitive equipment;

-Load adjustment rate: ≤ 0.5% (when the output current changes from 0 to 10A), the voltage remains stable under load fluctuations

Efficiency and power consumption - rated load efficiency: about 88% (230V AC input, 24V DC/10A output), with good energy-saving performance;

-Idle power consumption: ≤ 5W, reducing standby energy consumption

Physical and environmental adaptability parameters

The module design meets the strict requirements of industrial environments and is suitable for distribution control cabinet scenarios in terms of protection, temperature and humidity, and installation methods.

Parameter category specific specifications

Physical dimensions - width x height x depth: 45mm x 125mm x 140mm (compact design, saving installation space for electrical control cabinets);

-Weight: Approximately 0.6kg

Protection level IP20 (after panel installation), suitable for installation inside indoor electrical control cabinets to prevent finger contact and large particle foreign objects from entering

Environmental temperature - working temperature: 0~60 ℃ (when it exceeds 40 ℃, it needs to be rated down for use, and when it reaches 60 ℃, the output current should be rated down to 5A);

-Storage temperature: -25~70 ℃;

-Humidity: 5%~95% (no condensation), suitable for humid industrial environments

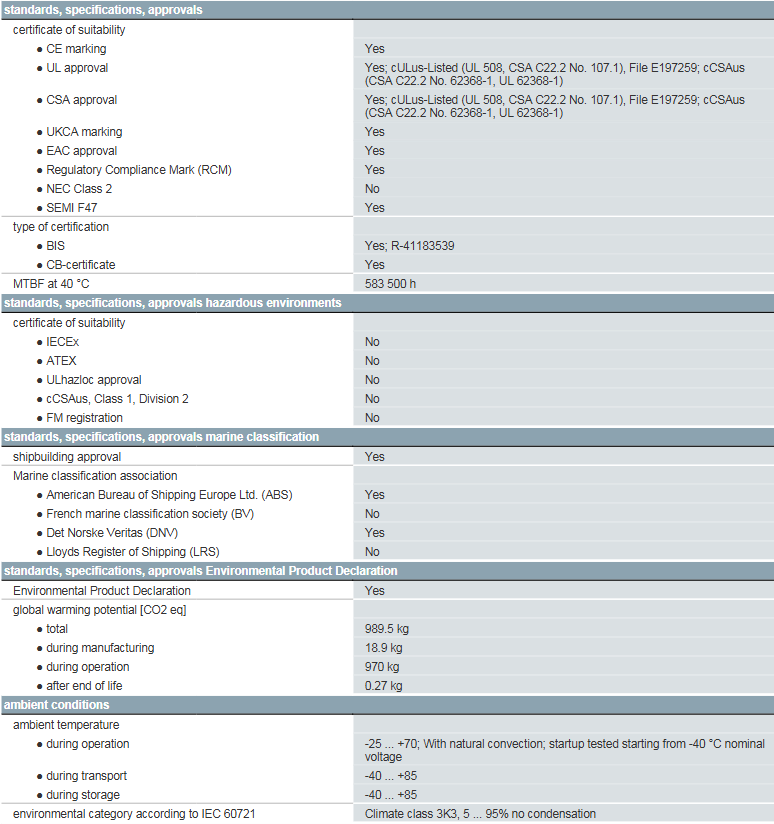

Installation method: 35mm DIN rail installation (compliant with EN 60715 standard), supports stacking installation, and facilitates cabinet layout

The anti-interference performance complies with EN 61000-6-2 (industrial environment anti-interference) and EN 61000-6-4 (industrial environment emission) standards, and resists power grid noise and electromagnetic interference

Protection function

The module has multiple protection mechanisms to ensure its own and load device safety, and reduce the risk of failure.

Overcurrent protection (OCP): When the output current exceeds 1.5 times the rated value, the module automatically limits the current and restores normal output after troubleshooting;

Overvoltage protection (OVP): When the output voltage rises abnormally above 32V DC, the module shuts off the output to prevent damage to the load equipment;

Overheating protection (OTP): When the internal temperature of the module exceeds 105 ℃, the output will be automatically turned off. After the temperature drops to a safe range, the module will be restarted to avoid burning out;

Short circuit protection: When a short circuit occurs at the output terminal, the module enters protection mode. After the short circuit is resolved, the output is restored without the need for manual reset.
