Allen Bradley MicroLogix 1500 Installation and Debugging

Allen Bradley MicroLogix 1500 PLC Installation, Debugging, and Troubleshooting Guide

In industrial automation sites, the MicroLogix 1500 series controllers are widely used for controlling small and medium-sized devices due to their compact size, rich integrated I/O capabilities, and flexible communication expansion capabilities. However, grounding negligence, communication parameter mismatch, expansion I/O power calculation errors, or firmware upgrade failures during on-site installation often result in extended debugging cycles. This article is based on the MicroLogix 1500 hardware user manual (1764-UM001), which outlines installation points, communication configuration, fault diagnosis, and system expansion calculations from an engineering perspective to help engineers quickly solve on-site problems.

Hardware selection and installation: avoid common pitfalls

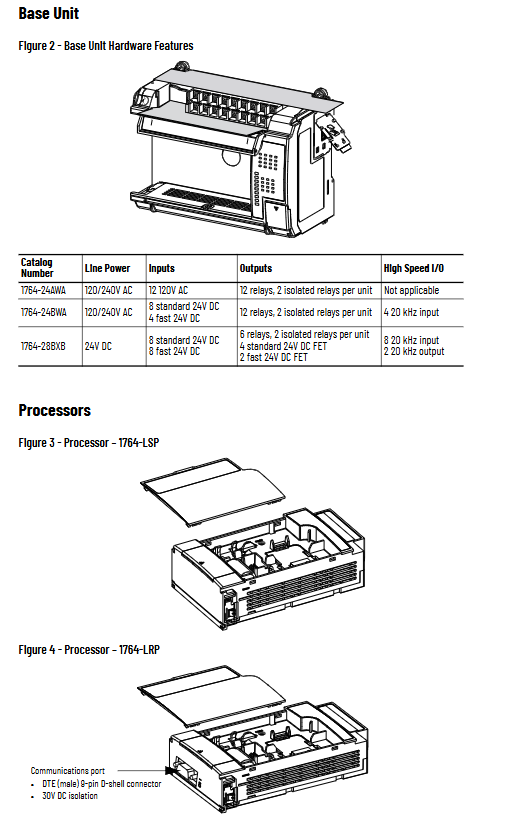

The MicroLogix 1500 consists of a base unit (with built-in power and I/O) and a pluggable processor. There are three types of bases: 1764-24AWA (AC input/relay output), 1764-24BWA (DC input/relay output), and 1764-28BXB (DC input/hybrid output, including 4 high-speed inputs and 2 high-speed FET outputs). The processor is divided into 1764-LSP (standard) and 1764-LRP (with dual communication ports). The following installation points are often overlooked:

1.1 Grounding and Noise Suppression

Protective grounding connection: The grounding screw on the base must be reliably connected to the grounding busbar of the electrical cabinet using a 2.5mm ² wire. The manual clearly states that "the chassis ground, internal 24V ground, user 24V ground, and RS-232 ground are connected internally", so it is necessary to first ground and then connect the communication equipment, otherwise it may damage the computer serial port. It is recommended to use a 1761-NET-AIC isolator when connecting channel 0 (RS-232) to a computer.

Anti static discharge: Before installing a processor, memory module, or data access tool (DAT), the base power must be disconnected and static electricity must be released by touching the grounded metal. The manual warns that 'touching the bus connector pins may damage semiconductor devices'.

Heat dissipation and vertical installation: The controller should be installed horizontally with a 50mm ventilation gap around it. Vertical installation is strictly prohibited, otherwise it may cause heat accumulation.

1.2 Mechanical Installation: DIN Rail and Panel

DIN rail installation: Hook the groove on the base onto the rail and press down until the bottom clicks in, ensuring that the DIN latch is facing upwards (locking position). Use a screwdriver to pry open the latch during disassembly. The maximum distance for the latch to open is 15mm.

Panel installation: Use # 8 or M4 screws and drill holes in conjunction with the installation template to prevent metal debris from falling into the base. The protective dust strip must not be removed before the wiring is completed, otherwise drilling debris may damage the internal circuit.

Wiring Explanation: Sink/Source Input and Inductive Load Suppression

2.1 DC input polarity configuration

The 24V DC input group (1764-24BWA and 1764-28BXB) of MicroLogix 1500 supports sink or source wiring, depending on the connection method of the common terminal (DC COM):

Sinking: Suitable for PNP sensors (high level active). Connect the DC COM to a power supply of 0V and connect the input terminal to the sensor output. At this time, the current flows from the sensor into the input terminal, and then through the internal optocoupler to the DC COM.

Sourcing: Suitable for NPN sensors (low level active). Connect the DC COM to the power supply+24V, and connect the input terminal to the sensor output. Current flows from the DC COM into the input terminal.

Each group of inputs has independent COM terminals that can be configured in a mixed manner. Special note: The 1764-24AWA AC input does not have this polarity selection.

2.2 Relay output and inductive load protection

When switching inductive loads (contactors, solenoid valves) with relay contacts, surge suppression devices must be connected in parallel, otherwise the contact life will be significantly shortened. Recommended manual:

DC load: IN4004 diode (reverse parallel connected at both ends of the coil).

AC load: Varistor (such as Allen Bradley 599-K04, used for 120V AC) or RC absorption circuit (199-FSMA). Attention: RC type suppressors should not be used for bidirectional thyristor output modules.

Contact rating: Maximum connection 7.5A and disconnection 0.75A at 240V AC; maximum connection 0.22A (resistive) at 125V DC. The total current of each common terminal shall not exceed 8A. The electrical life of the relay can reach 20 million times (for resistive loads).

2.3 FET output transient pulse prevention

The FET outputs (2~7 points) of 1764-28BXB are source type, and outputs 2 and 3 support high-speed pulses (PTO/PWM). However, the manual warns that when an external power source is suddenly applied to the VDC and VDC COM terminals, the FET output will generate brief transient current pulses. This pulse energy is usually not sufficient to drive the load, but if the load is high impedance (such as a small relay), it may malfunction. Solution: Connect resistors in parallel on the load to increase the conduction current and shorten the pulse width. The relationship between pulse duration and load current is shown in Figure 22 of the manual (for example, the pulse duration is about 25 μ s for a 100mA load and decreases to about 5 μ s for a 1A load).

Practical Communication Configuration: DF1 Point to Point and DH-485 Multi Station

The channel 0 (base) and channel 1 (LRP processor only) of MicroLogix 1500 can be independently configured as DF1 full duplex, DF1 half duplex slave, DH-485, Modbus RTU slave, or ASCII. DH-485 and Modbus cannot be used simultaneously.

3.1 DF1 point-to-point connection (programming and debugging)

Default factory communication parameters: 19200 baud rate, no checksum, CRC error detection, no handshake. Use the communication switch button (located inside the processor door, long press for 2 seconds) to temporarily switch channel 0 to the default parameters, and the DCOMM LED will light up at this time. This feature is extremely useful when forgetting to set parameters.

When connecting to a computer, it is strongly recommended to use a 1761-NET-AIC isolator to prevent the RS-232 interface from being burned by the ground loop. If channel 1 (dedicated programming port) of 1764-LRP is used, isolation is not required and can be directly connected with 1761-CBL-PM02 cable.

3.2 DF1 Half Duplex Slave (Multipoint modem network)

When multiple slave stations need to be connected via radio or dial-up modem, use DF1 half duplex protocol. The master station polls each slave station (station address 1-254), and the slave station can only send data when it receives the poll. The manual specifically states that the DH-485 protocol must not be used through a modem.

Parameter considerations:

EOT Suppression: When enabled, the slave station does not respond to polling when there is no message queuing, saving wireless transmission power consumption.

Poll Timeout: The maximum time (in 20ms) that a slave station waits for the master station to poll. If the timeout occurs, the MSG command will report an error.

Pre Transmit Delay: When the control line is set to "no handshake", this delay is used for 1761-NET-AIC to complete transmission and reception switching in half duplex mode and must be set to a non-zero value (typically 1-10ms).

3.3 Key Points for DH-485 Network Construction

DH-485 adopts RS-485 half duplex, token ring structure, with a maximum of 32 nodes and a total length of 1219 meters (which can be extended to 2438 meters if two AIC+cascades are used). Key Practice:

Cable: Belden 3106A or 9842 shielded twisted pair is recommended. Wiring method: Shielding layer connected to terminal 2, Common terminal connected to terminal 3, Data B connected to terminal 4, Data A connected to terminal 5. White/orange represents data B, and orange/white represents data A.

Terminal and grounding: Only terminals 1 and 2 at the end node are short circuited (shielded grounding). Short circuit terminals 5 and 6 of all nodes (with built-in 120 Ω terminal resistors).

Node address: Continuously allocated (1~31), initialized (such as a computer) uses the lowest address to improve token rotation efficiency. The maximum node address parameter should be set to the highest node number in the network to avoid polling non-existent nodes.

Token Hold Factor: 1-4, refers to the maximum number of message frames that can be sent after each token acquisition. Increasing this value can improve throughput, but it will prolong the waiting time of other nodes.

Expanding I/O: Power Calculation and Load Capacity

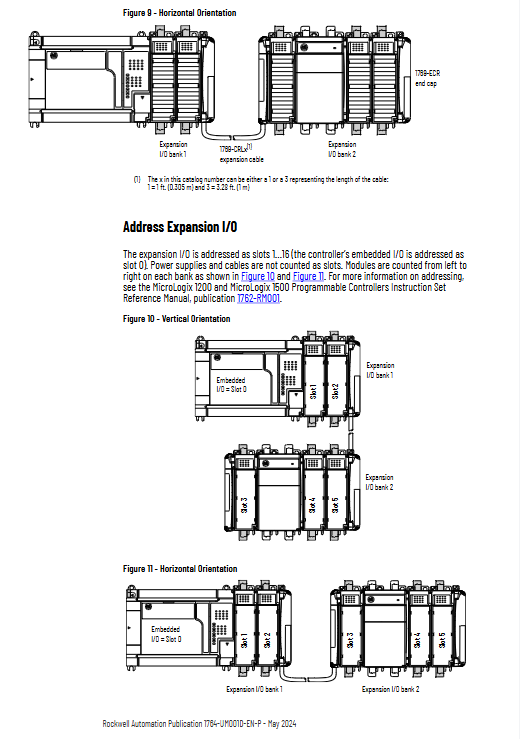

The MicroLogix 1500 can be expanded through 1769 Compact I/O with up to 16 modules (requiring FRN 6 and later). Key limitations:

Only one 1769 expansion cable can be used to form two I/O groups (Bank0 is directly connected to the controller, and Bank1 is connected through a cable). Each bank must have an independent power supply (Bank0 uses the controller's built-in power supply, Bank1 needs to be equipped with a 1769-PA2/PA4/PB2/PB4 power supply).

System load verification: It is necessary to calculate the current consumption of 5V DC and 24V DC separately, and ensure that it does not exceed the power supply capacity.

Taking a typical configuration as an example: 1764-28BXB base (self consumption has been deducted from the calculation), plus 1769-IA8 (AC input module, consumption 3.30W), 1769-OW8 (relay output, consumption 2.83W), and a 1769-SDN (DeviceNet scanner, 3.8W). Calculation steps:

Check the table to obtain the 5V and 24V current values of each module (from Table 45 in the manual).

Accumulate to obtain the total load.

Comparison power capacity: 1769-PA2 has a maximum 2000mA at 5V and a maximum 800mA at 24V (additional consideration is required for user output of 250mA). If the load exceeds, a larger power supply needs to be replaced or the modules need to be distributed on both sides of the bank (with 5V on each side not exceeding 2A).

Heat dissipation calculation: Base dissipation=20W+0.3 x total system power (W). Ensure that the cabinet has sufficient heat dissipation.

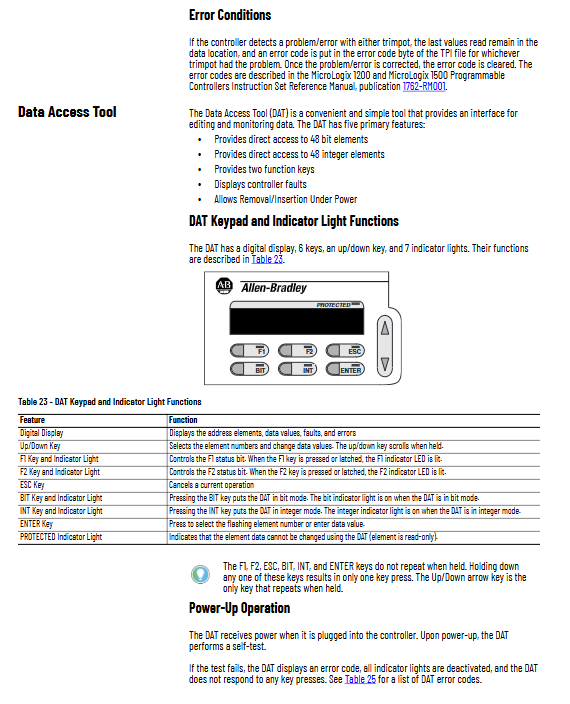

Data Access Tool (DAT) and Fine tuning Potentiometer

DAT (1764-DAT) is an on-site debugging tool that can monitor and modify up to 48 bit components and 48 integer digital components without the need for programming software. common problem:

Err 00 "communication timeout: Due to the program scanning time being too long, SVC instructions can be inserted into the program to force communication to refresh midway.

The 'Err 08' processor is occupied: usually occurs when the communication configuration changes after downloading, and can be cleared by unplugging the DAT and inserting or restarting the controller.

Protected components cannot be modified: The PROTECTED indicator light is on, and the data file protection needs to be released in the programming software.

Two micro adjustment potentiometers are located inside the left door of the processor, with a rotation range of 0-250 (increasing clockwise). Its value is stored in the Trimpat information file (TPI: 0 and TPI: 1), which can be used to set timer/counter preset values. The long-term stability of the potentiometer is ± 2 count values.

Real time clock and memory module: backup and program transfer

6.1 Real time clock (1764-RTC)

Accuracy: Approximately ± 36-68 seconds per month at 25 ℃, 133-237 seconds per month at 55 ℃. The internal lithium battery cannot be replaced. After setting the low battery indicator (RTC: 0/BL) to 1, the module must be replaced within 14 days.

Writing invalid dates will be rejected. The programming software 'Disable Clock' button can be used in front of the storage module to reduce battery consumption.

6.2 Memory module backup and program comparison

The memory module (1764 MMx) supports user program and data backup, and has program comparison function: after setting S: 2/9=1, if the program in the memory module does not match the program in the controller, the controller will not be able to enter the running mode. This feature can prevent unauthorized program changes.

Write protection: After being enabled through programming software, the memory module becomes "write once, read multiple times" and cannot be erased. If the program needs to be modified, a new module must be replaced.

Data file download protection: Certain data files (such as recipe parameters) can be specified not to be overwritten during program download. The premise is that the controller has no faults and the structure of the protected data file matches exactly with the memory module.

Firmware Upgrade and Fault Recovery

7.1 Upgrading Operating System with ControlFLASH

Preparation: The controller must be in default communication mode (press the communication switch button, the DCOMM LED will light up), and the mode switch must be set to "PROG".

Upgrade process: During the download, the Force, Battery, and COMM LEDs flash in the running light mode. After success, the Power, Force, and Battery LEDs flash for 5 seconds before resetting.

Fault recovery: If the firmware is damaged or the upgrade is interrupted, the Run, Force, and Fault LEDs will flash simultaneously (missing or damaged OS mode). At this point, firmware needs to be downloaded again through the serial port using ControlFLASH, and DF1 full duplex default parameters must be used.

7.2 Common Fault Codes and Handling

FAULT LED flashing red: User program malfunction. View the main error codes in status file S: 6. Common errors such as' 0010- Illegal Instruction Address' require checking the program logic. It can be restored by clearing S2:1/13 (main error pause flag) and switching to running mode.

POWER LED on, FAULT flashing, RUN off: serious hardware/software malfunction. Try cycling power on first. If it still persists, please contact technical support.

BATTERY LOW LED on: Low lithium battery voltage. For 1764-LSP, the battery can last for another 14 days; 1764-LRP is only 7 days. Need to replace (1747-BA) as soon as possible. Attention: Do not remove the original permanent battery when replacing, only insert the replacement battery.

Special functions: high-speed counting and PTO

The input 0~7 of 1764-28BXB is a high-speed DC input (up to 20kHz, default filtering 0.025ms), which can be used for high-speed counters. Output 2 and 3 are high-speed FET outputs that support pulse train output (PTO) or pulse width modulation (PWM), respectively used for stepper/servo control and DC motor speed regulation. Attention during configuration:

The high-speed output load current is limited to within 100mA and cannot directly drive high-power equipment.

The PTO output needs to be combined with HSC input to build a closed-loop control, and the PTO command wizard in RSLogix 500 needs to be used for configuration.
