Honeywell C300 related solutions

1. Overview

Honeywell C300 related solutions revolve around Expert ®  The core of the PKS C300 controller deployment lies in the application of new interfaces and pre assembled cables. IOTAs (Input Output Terminal Assemblies) adopt Weidm ü ller PCB connectors and terminal designs, with flexible connection methods. They can be directly wired to the field or combined with Weidm ü ller's FTAs (Field Terminal Assemblies) to use pre assembled cables.

Compared to traditional wire to wire wiring, this solution has significant advantages:

Reduce wiring workload: Minimize on-site wiring work by using pluggable connectors and cables.

Quick and easy connection: Pre assembled wiring harnesses can quickly and error free connect IOTA and FTA.

High current switching capability: The isolated digital output FTA has high current switching capacity in a compact design.

Clear identification: IOTA and FTA are equipped with the same Weidm ü ller connector and the same orientation for easy identification.

Excellent flexibility: Pre assembled cables can be made into different cross-sections, with lengths up to 50m.

Rich interface options: The Weidm ü ller interface provides multiple functions such as LED indicators, insulators, relays, or fuses, suitable for all C300 I/O cards.

2. Selection Guide

The selection guide aims to help users quickly and conveniently choose suitable products based on their application needs. The steps are as follows:

Step 1: Select the IOTA to use.

Step 2: Determine the number and type of cables required for the connection.

Step 3: Choose the interface that is most suitable for the application.

Taking CC-TDIL01 as an example, there are multiple options available. For example, option 1 can choose pre assembled cable C300-32B-320B (2 pieces) and interface 1221550000 (1 piece); Option 2 can choose pre assembled cables C300-32B-320B (2 pieces) and interfaces 1222980000 (2 pieces).

The selection guide table provides a detailed list of pre assembled cables (including cable type, required quantity per IOTA) and FTA (Weidm ü ller interface) information for different Honeywell IOTAs, covering card type, number of channels, connection method, whether to include LED per channel, whether to include disconnect and test points, whether to include fuse per channel, whether to include external power supply, required quantity per IOTA, and order number.

3. FTA C300 input/output passive interface

This type of interface is used to connect Honeywell C300 digital or analog IOTAs. The following is detailed information for some of the main models:

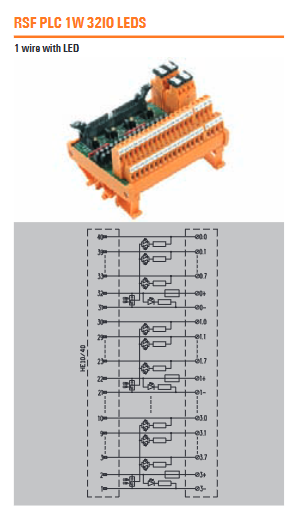

FTA-C300-32DI-LD: Suitable for CC-TDIL01 and CC-TDIL11, it is a passive input/output interface for digital cards. Technical data includes connection data and functions (control side connection, on-site connection, LED status display, etc.), rated data (working voltage, maximum current per channel, etc.), general data (ambient temperature, storage temperature, etc.), certification (CE, etc.), dimensions (clamping range, installation guide rail, length x width, etc.). There are two types of ordering data: screw connection and tension clamp connection, with corresponding order numbers. The accessories include 5x20 mm 0.63A fuses, etc.

FTA-C300-32DIOHV: Suitable for CC-TDIL01/11, CC-TDOB01/11, CC-TDI110/120/220/230, etc. The technical and ordering data are similar to the above, but there are slight differences in parameters for different application scenarios.

FTA-C300-16AI-TEST: Suitable for CC-TDIL01, CC-TDIL11, CC-TAIX01, CC-TAIX11, etc., it has the characteristics of disconnecting plug and testing point (diameter 2mm, used for voltage and current measurement) and M4 shielding connection. Its technical data and ordering data are also set according to its own functional characteristics.

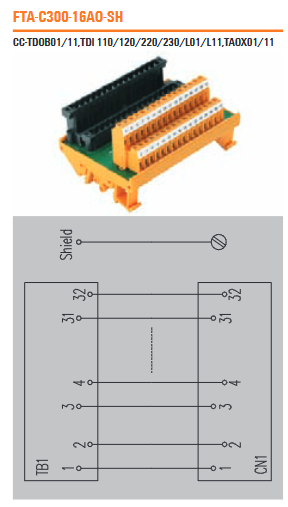

Other models such as FTA-C300-32DO-LD、FTA-C300-32DO-FUSE、FTA-C300-16AI-SH、FTA-C300-16AO-SH、FTA-C300-16AO-TEST  Each has its own applicable IOTA model, detailed technical parameters, ordering information, and accessory requirements.

4. FTA C300 isolation interface (per relay)

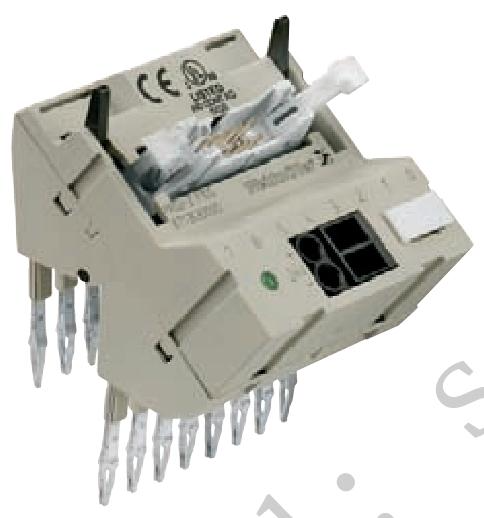

Taking FTA-C300-32DO-RSLIM as an example, it is suitable for CC-TDOB01 and TDOB11 and is an isolated output interface for digital cards.

Technical data: including connection data and functions (control side connection, pole number, relay type, LED status display, etc.), rated input data (input voltage, input current, working voltage, etc.), rated output data (contact material, working voltage, maximum AC continuous current, etc.), general data (ambient temperature, storage temperature, etc.), certification (CE, etc.), dimensions (clamping range, installation guide rail, length x width, etc.).

Order data: Provide two types of screw connections and tension clamp connections, along with their corresponding order numbers.

Accessories: 5x20 mm 5A fuses, etc.

5. Interconnection cables

Used to connect CS300 cards to Weidm ü ller interfaces, it is divided into Premium series (with connector housing) and Basic series (without connector housing).

Technical data: rated data (wire/shielding capacity, wire/wire capacity), cable characteristics (cable type, material), general data (environmental operating temperature, storage temperature, etc.).
