Honeywell CC Series

Honeywell CC Series

Product Introduction Summary

Overview: This document provides information on configuring Expert ion ®  Technical information for Series C I/O and C300 controllers will be released starting from the Expert R300.

Scope: Includes multiple input and output types, such as 24 VDC digital input, 110 VAC/125VDC digital input, etc.

Definition: Input/Output Terminal Component (IOTA) is a component that accommodates IOM and field wiring connections; An Input Output Module (IOM) is a device that contains most of the electronic devices required to perform specific I/O functions and can be plugged into IOTA.

Characteristics

All Series C components adopt innovative design, support enhanced thermal management, have a unique appearance, and significantly reduce size under the same functionality.

The unique features of Series C I/O include: combining I/O modules and field terminals in the same area without the need for a separate chassis; Two level "detachable" terminals facilitate on-site installation and maintenance; Provide on-site power supply through IOTA, without the need for additional power supply and related manual wiring; Implementing redundancy directly on IOTA without the need for external wiring or redundant control devices.

Innovative design also includes vertical installation for easy wiring, visual prompts for status information provided by the "information circle", "tilted" design for thermal management inside the cabinet, and short-circuit protection for input and output circuits.

Series C IOTA integrates multiple functions, supporting single redundancy configuration, on-board terminals for process signals, etc. IOM is inserted into IOTA and power is obtained from it. IOTA obtains power from the 24 VDC bus of IOTA carrier.

Series C I/O size

In almost all configurations, the C300 controller and Series C I/O provide useful and maintainable process equipment connections in a smaller space, helping to reduce overall installation costs.

The size of IOTA varies depending on the application, with simulation modules typically having 16 points. Non redundant applications use 6-inch (152mm) IOTA, while redundant applications use 12 inch (304mm) IOTA; The discrete module has 32 points, with 9-inch (228mm) IOTA used for non redundant applications and 12 inch (304mm) IOTA used for redundant applications.

Introduced various I/O module functions, such as advanced analog input/HART input module (16 points), advanced analog input without HART (16 points), etc., and explained the wire specifications accepted by Series C field connectors.

I/O module size

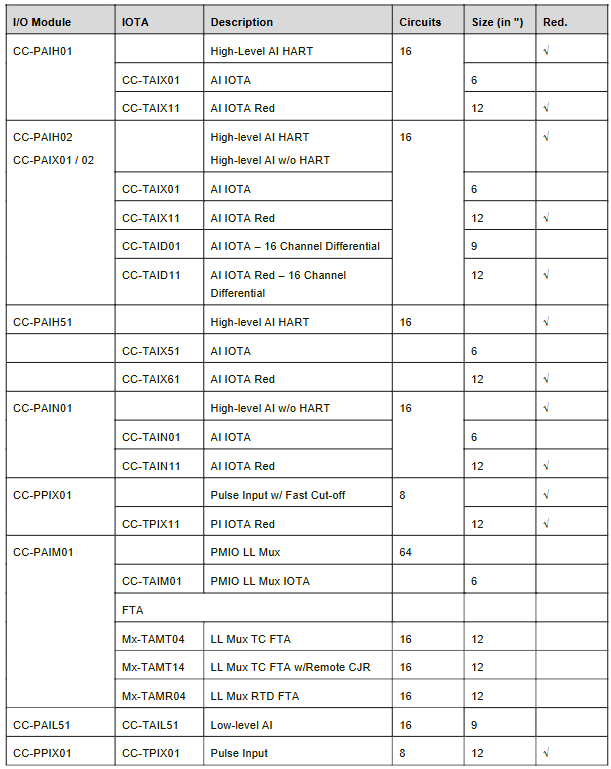

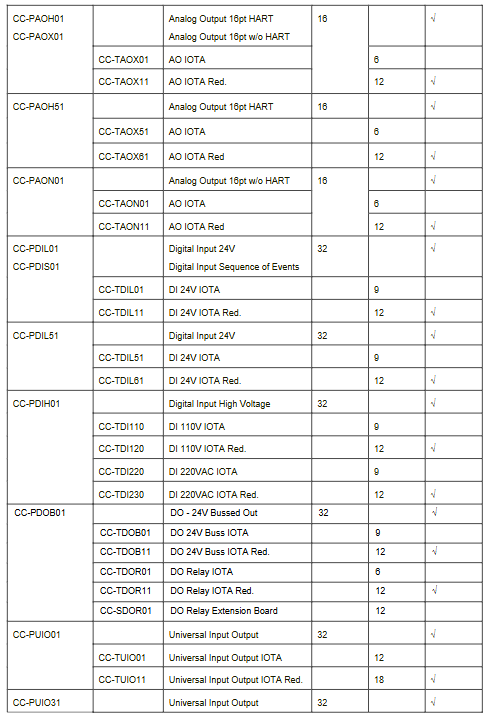

Listed are the IOTA, description, number of circuits, size (inches), and redundancy information corresponding to each I/O module, such as CC-PAIH01 module corresponding to CC-TAIX01 (6 inches, non redundant) and CC-TAIX11 (12 inches, redundant).

Specifications

Detailed specifications of various modules, including functions, notable features, and detailed specification parameters:

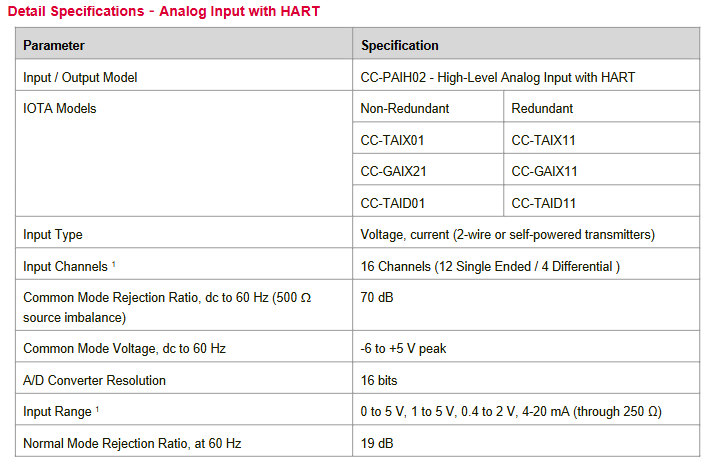

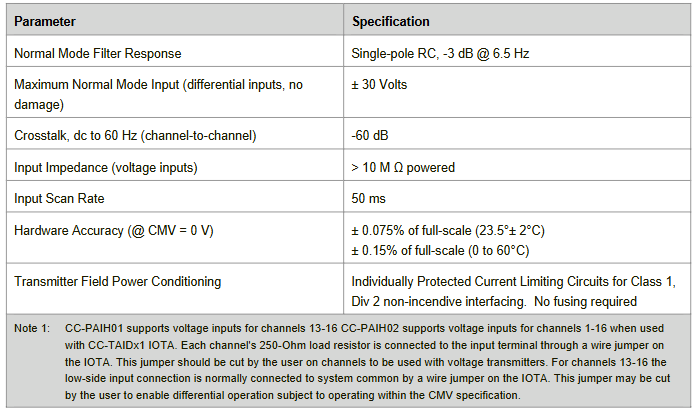

Analog inputs with HART (CC-PAIH01/02, CC-PAIH51): accept high-level current or voltage inputs from transmitters and sensing devices, with a wide range of self diagnostic and optional redundancy features. Detailed parameters include input type, number of channels, common mode rejection ratio, etc.

Analog inputs (CC-PAIX01/02, CC-PAIN01): Similar in function to those with HART, but do not support HART functionality. Parameters include input type, number of channels, etc.

Low level analog (temperature) input (CC-PAIM01, CC-PAIL51): supports temperature input, CC-PAIM01 supports up to 64 channels, using Honeywell PMIO LLMUX FTA; CC-PAIL51 supports 16 channels and is directly supported on Series-C IOTA.

Pulse Input (CC-PPIX01): Provides the ability to monitor various pulse input field values for the Expert C300 controller, suitable for metering and trade handover applications. Parameters include input-output models, channel numbers, frequency ranges, etc.

Analog outputs with HART (CC-PAOH01, CC-PAOH51): provide high-level constant current to actuators and recording/indicating devices, with multiple characteristics and detailed parameters.

Analog output (CC-PAOX01, CC-PAON01): Similar in function to those with HART, does not support HART functionality.
