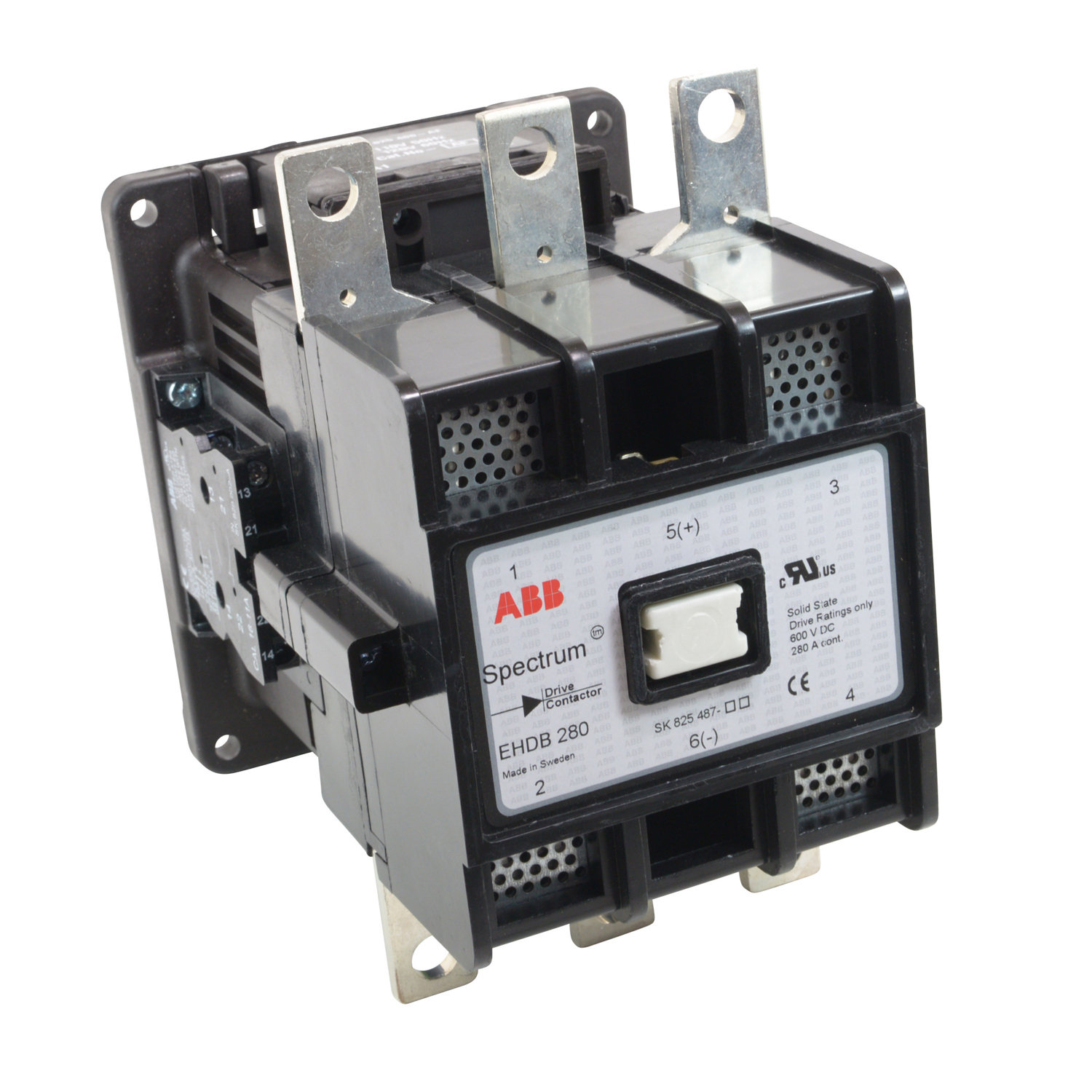

ABB EHDB280 drive contactor

ABB EHDB280 drive contactor

Product Overview

The ABB EHDB280 drive contactor is designed specifically for solid-state DC speed control drive systems and plays a critical role in circuit on/off control in industrial automation production. It can accurately respond to control signals, realize the start, stop, and operation status switching of motors and other equipment, and ensure the stable operation of industrial production processes according to established procedures. This contactor is designed with full consideration of the complexity of industrial environments, and has excellent durability to cope with frequent operation and harsh working conditions, providing reliable control guarantees for industrial electrical systems.

Specification parameters

Rated voltage: Supports a wide range of voltage inputs, covering 24~600VAC/VDC, and can adapt to various industrial power supply systems. Whether it is a common AC power supply or DC power supply environment, it can work stably and meet the electrical control needs in different scenarios.

Rated current: The DC thermal rated current reaches 280A, which enables it to match the corresponding power level of motors and other loads, ensuring stable current carrying during normal operation and ensuring the continuous operation of the equipment. At the same time, the DC normally closed contact (NC) has a turn-on current of 565A and strong instantaneous current tolerance.

Coil voltage: Provides multiple optional specifications such as 120VAC, allowing users to flexibly choose according to the actual voltage conditions of the electrical control circuit, ensuring that the contactor coil can work normally at the appropriate voltage and accurately control the on/off of the main circuit.

Other key parameters: With 2-pole or 3-pole configuration options, it can meet the needs of different circuit topologies; Support DC control operation; The auxiliary contacts are 1 normally open (NO) and 1 normally closed (NC), which facilitate the implementation of complex control logic and signal feedback; The dynamic braking current is 363A and the dynamic braking voltage is 160VDC, which plays an important role in application scenarios such as motor braking.

Performance advantages

High reliability guarantee: By using high-quality insulation and conductive materials, combined with advanced manufacturing processes, the product can effectively resist the effects of electrical stress, mechanical vibration, and other factors during long-term use, greatly reducing the probability of failure. This is particularly important for industrial scenarios with continuous production, as it can significantly reduce equipment downtime for maintenance and improve production efficiency.

Excellent breaking performance: capable of quickly and reliably breaking circuits, cutting off current in a timely manner during motor start-up, stoppage, overload, short circuit and other faults, avoiding damage to motors and other equipment caused by excessive current, effectively extending equipment service life, and providing solid protection for the stable operation of industrial equipment.

Good compatibility: It can work in conjunction with various brands and models of solid-state DC speed control drive systems, as well as medium voltage motors and other related equipment. Whether it is a newly built automated production line or an upgraded industrial electrical system, it can be easily integrated and applied, providing great flexibility for the design of industrial electrical control solutions.

precautions

Strict installation environment requirements: It needs to be installed in a well ventilated, dry, and away from water, moisture, high temperature sources, and corrosive substances. Good ventilation helps the contactor dissipate heat during operation, preventing performance from being affected by high temperatures; A dry environment can prevent a decrease in insulation performance; Keeping away from corrosive substances can prevent the metal parts of the contactor from being corroded, ensuring its long-term stable operation.

Accurate voltage matching principle: The connected power supply voltage must strictly match the rated voltage, coil voltage, and other parameters of the contactor. If the voltage does not match, it may cause the contactor to fail to pull in or release normally, and in severe cases, it may even burn out the coil, causing electrical faults. Therefore, it is necessary to carefully check the voltage parameters before installation and use.
