Emerson Ovation I/O Module Troubleshooting and Replacement Practical Guide

I (red): Internal errors (such as EEPROM checksum errors, uncalibrated, forced errors, etc.).

CH1~CH8 (red): Corresponding channel error. Possible reasons:

Voltage input: Exceeding ± 125% of full scale or ≤ -125%.

Current input: Detected<2.5mA (broken fuse or open circuit) or>25mA.

The self calibration reading exceeds the tolerance range.

2. Fuse and channel status register

For current input configuration (using 1C31116G02 or G03 personality modules), when the channel current is below 2.5mA, the Blow Fuse bit will be set in the high byte of address 14 (E) (bits 8-15 correspond to channels 1-8). At the same time, the CH LED may light up, and the external error LED (E) may also light up.

Replacement steps:

After confirming the channel fault, power off first and then unplug the electronic module.

Check the fuse on the personality module (5 × 20mm, 0.063A/250V, fast melting). Replace with the same specifications.

If the fuse is normal, it may be a fault with the on-site transmitter or an open circuit in the circuit.

When replacing electronic modules or personality modules, be sure to replace them in pairs with the same Group number (e.g. 1C31113G05 must be paired with 1C31116G02).

3. Troubleshooting of thermocouple (TC) input faults

When using the personality module with temperature sensor (1C31116G04), if the cold end compensation fails, check:

Has the terminal block insulation cover (1C31207H01) been installed? Sensors require a uniform temperature environment.

Have you selected the correct thermocouple type (B, E, J, K, R, S, T) in Point Builder? The system will automatically allocate coefficients.

If the temperature sensor fails (Status Register bit 14 set), all TC channels will read incorrectly and the personality module needs to be replaced.

Common problems with digital input/output modules

1. Digital Input (DI) module

Input range: 24V/48V or 125V, single ended or differential. If the input voltage is below the ON threshold (such as 18V at 24V), it cannot be recognized.

Fuse detection: For single ended configurations, the Blow Fuse Enable (bit 6) needs to be enabled in the configuration register. When the external auxiliary power supply fuse is disconnected, the external error LED (E) lights up and the status register bit 7 is set.

On site wiring length limit: When the cable capacitance is ≤ 50pF/ft, the maximum length is 1000ft. If a thicker wire diameter is used, it can be extended (see Tables 10-3 and 10-4).

Troubleshooting: If a certain DI channel is always ON or OFF, first measure the input terminal voltage with a multimeter. If the voltage is normal, check if the corresponding LED of the channel is lit up. If it doesn't light up, it may be a damaged optocoupler and the module needs to be replaced.

2. Digital Output (DO) Module

Output type: Sinking, maximum 500mA per point (total current limited by fuse).

Fuse detection: When the output voltage is less than 0.4VDC and the fuse detection is enabled (bit 7), the E LED lights up and status bit 6 is set.

External relay panel: Use 1C31125G02 (local power supply) or G03 (remote power supply). Note that G03 will connect the local power return line and the remote power return line together, ensuring a single point grounding.

Typical fault: The output point does not operate, but the LED is on. Check if the external load is short circuited, causing the fuse to melt; Measure the output terminal to COM voltage. If the voltage is normal, it is an external circuit problem; If there is no voltage and the fuse is intact, it may be that the output transistor is damaged and the module needs to be replaced.

Key fault points of special modules

1. HART Analog Input/Output (HAI/HAO)

LED indication: During normal communication, the corresponding channel LED will briefly flash. If no response is received after sending the HART command, the channel LED will turn off and the other seven LEDs will flash simultaneously (XOR mode).

Fault diagnosis:

Check the impedance of the HART loop: The input impedance of the HAI module is approximately 250 Ω, and the total resistance of the loop must comply with the HART specification.

The cable length is limited by capacitance and resistance, and the maximum distance can be estimated using Table 13-5 and Figure 13-6.

If the auxiliary power fuse (0.5A micro fuse on the personality module) is disconnected, the external error LED will light up.

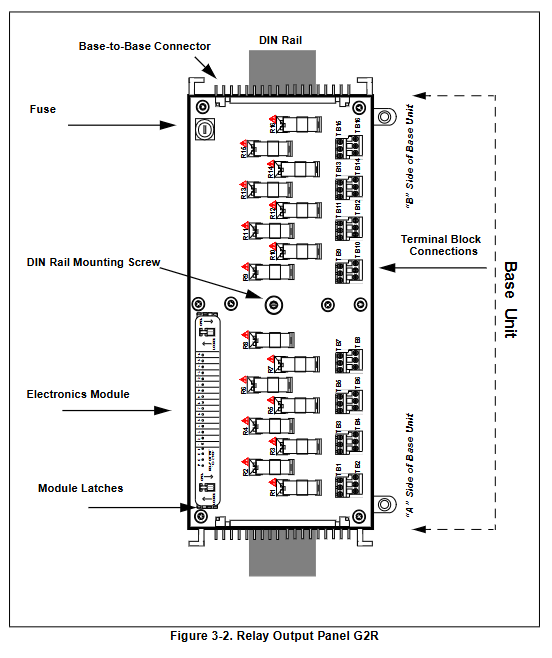

2. Relay output module (G2R/KUEP)

Temperature derating: KUEP Form C relay needs to be derated for use above 45 ° C, or the duty cycle needs to be reduced (≤ 33%). Please refer to Table 18-5 for details.

Fuse detection: The auxiliary power supply voltage needs to be between 18-25.5V to correctly detect the status of the fuse. The test results are uncertain when the voltage is below 18V.

Replacing the relay: Hot swappable electronic modules are allowed, but the relevant load power must be cut off before replacing the relay.

3. Pulse accumulator module

Input frequency: 24/48V counting input maximum 500Hz (without debounce), 5V high-speed input maximum 70kHz.

Fault phenomenon: The counter does not update. Check if the Enable pulse counter bit is set in the configuration register; Check if the ENABLE input is activated (high/low level depends on the personality module type).
