Emerson Ovation I/O Module Troubleshooting and Replacement Practical Guide

Common error: Wiring error (common positive/negative reversal) resulting in no current. When using 1C31150G01 (common negative), the positive terminal of the counting input is connected to CT+, and the negative terminal is connected to CT -; G02 (public positive) is the opposite.

Operation process for safe replacement of discontinued modules

When a Ovation I/O module is discontinued (such as the old version 13 bit analog input) and needs to be upgraded to 14 bit or HART version, follow the following steps:

Backup configuration: Use I/O Builder or Developer Studio to record the I/O address, range, alarm settings, etc. of the original module. The entire controller project can also be backed up using the Configuration Copy tool.

Check compatibility: Confirm that the electronic module and personality module combination of the new module are functionally equivalent to the old module. For example, a 13 bit AI (1C31113G05+1C31116G02) can be replaced with a 14 bit AI (1C31224G01+1C31227G01), but it should be noted that the 14 bit AI does not support thermocouples.

Physical replacement: After power failure, unplug the old electronic module and personality module, and insert the new module (install the personality module first, then install the electronic module). Ensure that the base remains unchanged.

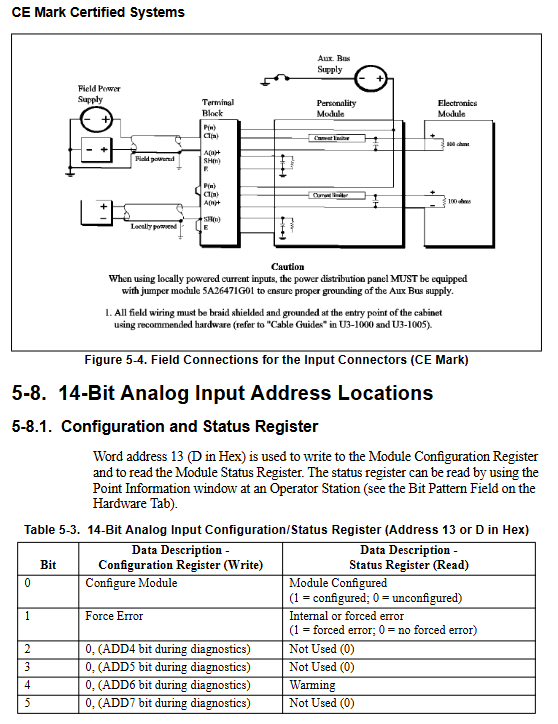

Reconfigure: Delete the original I/O point in the upper computer, create a new point, and match the register mapping of the new module. Note that the definition of the status register bits for 14 bit AI is different from that of 13 bit AI (such as different positions for the warming bit).

Test verification: Monitor real-time values through the point information window and simulate input signals to verify accuracy. If it is a current input, test the open circuit/fuse detection function.

Update document: Record the electronic ID of the new module (which can be read through diagnostic tools) and update the drawings.

Power budget and branch expansion

When expanding the I/O branch, it is necessary to calculate the power load. The power distribution module (PDM) of each Ovation cabinet provides+24V main and auxiliary power. The total current of the auxiliary power supply for a single branch shall not exceed the rated value of the power module. For example, the D0-06DD1 PLC base itself consumes 600mA @ 5V and 280mA @ 24V; Each expansion module requires additional current (such as D0-16ND3 consuming 35mA). Please refer to the power budget table for details.

If using an external auxiliary power source (such as 125V DI power supply), the following safety steps must be performed:

Determine the fuse position on the back panel (CBO) or transition panel (ROP/TND) corresponding to the branch.

Remove the two circular plug-in fuses corresponding to this branch.

If the external power supply voltage is>60VDC or>30VAC RMS, a fuse cover kit (such as 1C31213G01/G02) needs to be installed.

Connect the positive and negative poles of the external power supply to the PS+and PS - terminals of the base respectively.
