In Emerson Ovation distributed control systems, I/O modules are an important bridge connecting field instruments and controllers. Whether it is analog input/output, digital input/output, or specialized modules such as HART, RTD, pulse accumulation, valve positioning, etc., once a fault occurs or needs to be upgraded or replaced, engineers must quickly locate the problem and safely replace it. This article combines the Ovation I/O reference manual to provide a complete on-site maintenance plan from noise suppression, installation and wiring, module diagnosis to fuse replacement and redundant configuration, helping you effectively shorten downtime.

Noise suppression and grounding: avoiding "hidden" data errors

In the on-site industrial environment, frequency converters, contactors, welding equipment, etc. can generate strong electromagnetic interference. Ovation I/O modules provide various noise suppression measures in their design, but proper installation and grounding are prerequisites for maximizing their performance.

1. Signal classification and isolation principles

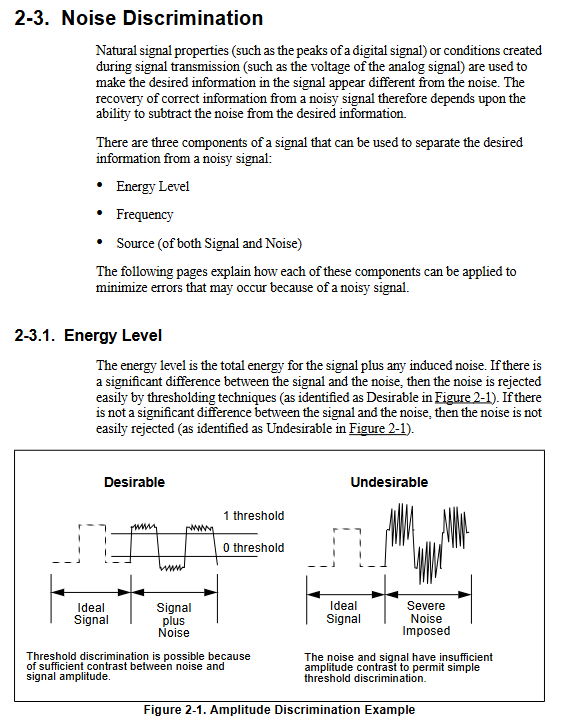

According to Section 2 of the manual, signal and power lines can be classified into four noise levels: high (H), medium (M), low (L), and extremely low (Q). among which

High level: DC/AC power cord with 110/115VAC or 100A or above.

Extremely low level: analog I/O, high-speed counting pulse, data link.

The Golden Rule: Cables of different grades must be laid separately with a minimum spacing of 100mm. In particular, analog signal lines and power lines should not be bundled in the same cable tray.

2. Shielding and grounding techniques

For low-level analog signals less than 1V (such as thermocouples, RTDs), independent shielded twisted pair cables must be used. The shielding layer should be grounded at one end, preferably on the signal source side, and if inconvenient, on the controller side. Figure 2-3 shows the ideal connection method: the negative terminal of the signal is connected to the shielding layer at the signal source and connected to the local ground.

Digital signals (such as 24V/48V DC input) can use multi-core shielded cables without the need for individual shielding for each pair.

Attention: In the CE certification system, the shielding layer must be grounded extensively through metal clips at the entrance of the cabinet, and cannot be welded with a single lead wire (which will increase high-frequency impedance).

3. Grounding of power module

The LG (line ground) and FG (chassis ground) on the power module must be connected to the grounding point with the shortest wire (≤ 30cm). For non CE models such as A1S61P, a noise filter (recommended SCHAFFNER FN343-3/01) needs to be installed at the power supply inlet. CE compatible models (such as A1S61PN) do not require an external filter, but LG and FG should be short circuited.

Common fault case: The analog input signal of a certain power plant fluctuates violently. After investigation, it was found that the shielding layer was grounded at both ends, forming a ground loop. After correction to single ended grounding, the signal returns to stability.

General specification for module installation and wiring

1. Substrate installation

All standard I/O modules (electronic module+personality module) are plugged into the base unit. A base can accommodate two modules, even if only one module is used, a dual slot base is required.

The base is fixed by DIN rails, and the tightening torque is specified in the module instructions (usually 5-7 in lbs).

The relay output module uses a dedicated base (G2R type 16 point or KUEP type 12 point) and must not be mixed with standard I/O modules on the same branch. Please note that standard modules must be placed starting from the odd digit (positions 1/2, 3/4...).

2. Wiring identification

Each personalized module is labeled with a simplified wiring diagram on the side, indicating terminal connections. Common terminal abbreviations:

A1+, A1-: Analog input positive/negative

P1+: Positive output of local power supply circuit

CI1: Current input terminal

SH: Shielded terminal (non CE system connection shielding layer; The shielding layer in the CE system is not connected to the module and is directly connected to the cabinet ground

PS+, PS -: Auxiliary power input

Attention: Unused terminals (marked RSV) must not be connected to any wires.

3. Special requirements for CE certification system

All I/O cables leading out of the cabinet must use shielded cables and be grounded at the entrance of the cabinet.

Modules with dangerous voltage (>30V RMS or 60V DC) (such as 125V digital input) must have a dangerous voltage warning label (1B30025H01) affixed to the base. For single ended input configurations, all bases of the entire branch must be labeled, and the auxiliary power fuse must be removed and a fuse cover kit must be installed.

Fault diagnosis and replacement of analog input module (13/14 bits)

1. Interpretation of Status LED

Each analog input module panel has the following LEDs:

P (green): The+5V logic power supply is normal.

C (green): Communication between the controller and the module is normal.
