Fuji FRENIC Mini inverter troubleshooting

Fuji FRENIC Mini inverter troubleshooting

The Fuji Electric FRENIC Mini series compact frequency converter is widely used in the speed control drive of three-phase induction motors and permanent magnet synchronous motors such as fans, water pumps, and conveyor belts due to its high reliability, rich protection functions, and simple operation interface. However, complex on-site environments, incorrect parameter settings, or improper wiring can all lead to frequency converter alarms or abnormal motor operation. This article is based on the original factory technical manual, extracting the most common types of faults encountered on site and their solution steps, aiming to help electrical engineers and maintenance personnel locate problems and restore production in the shortest possible time.

Whether you are debugging a FRENIC Mini for the first time or facing a sudden trip that requires urgent troubleshooting, the code comparison table, inspection process, and parameter suggestions provided in this article will be a practical reference in your toolbox.

Common errors and troubleshooting in installation and wiring

Before powering on, wiring errors are often the main cause of the inverter being unable to operate or damaged. The following are the most easily overlooked points:

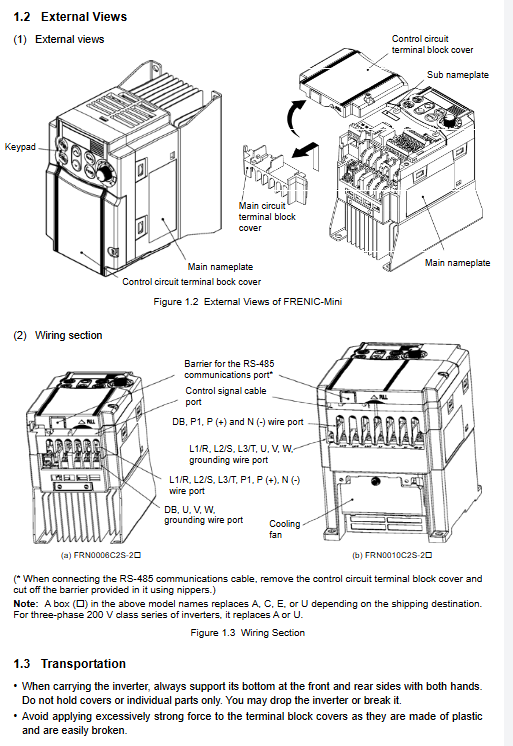

1.1 Main circuit wiring inspection

Power input terminal: The three-phase 200 V series should be connected to L1/R, L2/S, L3/T; The single-phase 200 V series is connected to L1/L and L2/N. Do not connect the power cord to the output terminals U, V, W, otherwise the inverter will be burned when powered on.

Motor wiring: The output terminals U, V, and W must correspond one-to-one with the motor's U, V, and W (phase sequence errors can cause the motor to reverse). The grounding terminal G must be reliably grounded, and the diameter of the grounding wire should not be less than that of the power wire.

DC Reactor (DCR): If a DCR is selected, the short-circuit between terminals P1 and P (+) must be removed and the DCR connected to P1 and P (+). Connecting the DCR directly without removing the short-circuit connector can cause a short circuit fault.

Braking resistor: Only allowed to be connected between P (+) and DB. It is strictly prohibited to connect the braking resistor between P (+) and N (-), P1 and N (-), P (+) and P1, or DB and N (-), otherwise it may cause a fire.

1.2 Key points of control circuit wiring

Analog input: The common terminal of frequency command terminal [12] (0~10V) and [C1] (4~20mA) is [11]. The shielding layer should be grounded at one end.

Digital input: The common terminal of terminals [FWD], [REV], [X1]~[X3] is [CM], and the internal jumper switch SW1 can select SINK (NPN) or SOURCE (PNP) mode. When connecting the PLC, an external 24V power supply is required to the [PLC] terminal.

Emergency Stop: If external emergency stop is required, [X1]~[X3] can be configured as THR function (Data 9). When this terminal is disconnected, the frequency converter immediately cuts off the output and reports a 0h2 alarm.

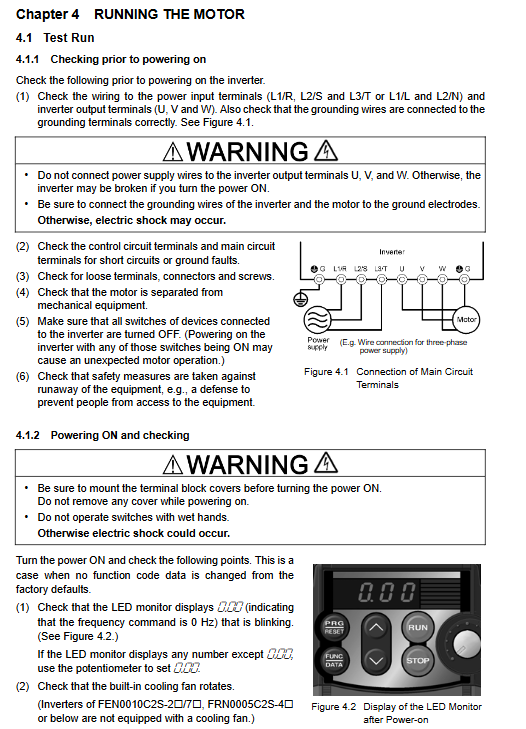

1.3 Checklist before powering on

Confirm that the power supply voltage is within the rated range (200~240V allowed for three-phase 200V series, 200~240V allowed for single-phase 200V series).

Confirm that the rated current of the motor matches the output current of the frequency converter (excessive current can cause electronic thermal protection to malfunction).

Confirm that there is no short circuit in the control terminal and that the emergency stop circuit is functioning properly.

Confirm that the cooling fan of the frequency converter (models above 0.75kW) rotates freely and the ventilation opening is unobstructed.

Troubleshooting of motor failure or abnormal operation

2.1 LED display shows no display after power on

Possible reasons:

The input power is not connected or the main circuit fuse is blown.

The short-circuit between terminals P1 and P (+) is loose or not installed (if DCR is not used, the short-circuit must be retained).

Processing steps:

Measure whether the voltage between input terminals L1/L, L2/N or L1/R, L2/S, L3/T is normal.

Check if MCCB and ELCB have tripped.

Confirm that the short connector is securely installed.

2.2 Press the RUN button, the motor does not rotate, and the LED displays a frequency of 0.0

Possible reasons:

Running mode error (in programming mode instead of running mode).

The frequency command is 0 Hz.

The starting frequency (F23) is lower than the stopping frequency (F25).

The external command (FWD/REV) is not closed or wired incorrectly.

Both terminals [FWD] and [REV] are closed simultaneously (causing a stop).

Processing steps:

Press the PRG key to switch to the running mode (the LED displays the current frequency without blinking).

Check F01 (frequency command source): If set to 0, use the ▲/▼ keys to increase the frequency; If set to 1, measure the voltage at terminal [12].

Confirm F02 (source of running instruction): If set to 1, the FWD or REV terminal must be closed.

Enter programming menu # 4 "I/O Checking" (4_00) and observe the ON/OFF status of input terminals such as FWD and REV. If it does not match the actual situation, check the wiring and SW1 jumper settings.

2.3 Motor Reverse Rotation

Possible reasons:

The output phase sequence U, V, W does not correspond to the motor terminals.

If terminal operation is used, the wiring between FWD and REV will be reversed.

If running on the panel, F02 is set to 3 (reverse fixed direction).

handle:

Swap any two-phase output lines, or adjust parameter F02 to 2 (fixed forward rotation).

Check the default values (98 and 99) for E98 (FWD function) and E99 (REV function).

2.4 Motor speed fluctuation, vibration or abnormal noise

Possible reasons:

The carrier frequency (F26) is too low (≤ 2 kHz), resulting in high electromagnetic noise.

Mechanical resonance (the natural frequency of the load coincides with the output frequency).

Excessive torque boost (F09) leads to excessive excitation.

The PID control parameters are not appropriate.

handle:

Increase F26 (recommended 4-8 kHz) to reduce motor noise.

Use the jump frequency function (C01~C04) to avoid resonance points.

Gradually reduce F09 (default value reference parameter table) and observe whether the current decreases.

If PID (J01=1 or 2) is enabled, readjust the proportional gain J03 (usually 0.1-1.0) and integration time J04 (5-20 seconds).

Common alarm codes and countermeasures (must read on site)

FRENIC Mini uses 4-digit 7-segment LED to display alarm codes. The following are the most frequently occurring codes and their handling methods.

3.1 0c1/0c2/0c3- Instantaneous Overcurrent

Meaning: The output current exceeds the rated value of the frequency converter. 0c1 occurs during acceleration, 0c2 during deceleration, and 0c3 during constant speed operation.

Common reasons:

Output side short circuit or grounding (motor cable damage, water ingress into terminal box).

The acceleration time (F07) is too short, resulting in excessive starting current.

The torque boost (F09) is set too high.

Motor stalling or mechanical brake not open.

Processing procedure:

Disconnect the output line of the frequency converter and measure whether the resistance between U-V, V-W, and W-U is normal (motor winding resistance value). If the resistance is zero or extremely small, there is a short circuit.

Perform insulation testing on the output cable using a 500V megohmmeter. If the ground resistance is less than 5M Ω, the cable needs to be replaced.

Extend the acceleration time (increase F07 to 10-20 seconds).

Gradually reduce F09 (e.g. from 8% to 4%) and observe if there is any improvement.

If the mechanical brake is not released, check the brake control circuit.

3.2 0u1/0u2/0u3- Overvoltage

Meaning: The DC bus voltage exceeds the protection value (200V series>400V, 400V series>800V).

Common reasons:

The deceleration time (F08) is too short, and there is too much regenerative energy feedback from the motor.

The power supply voltage is too high (exceeding the rated value by 10%).

The braking resistor is not connected or the resistance is too high.

handle:

Extend the deceleration time (set F08 to 10-30 seconds).

Enable automatic deceleration (Anti regenerative control, H69=2 or 4).

For situations where quick parking is required, install brake resistors and correctly set F50 and F51 parameters.

Measure the input voltage. If it exceeds 264V (200V series) or 528V (400V series), adjust the tap of the power side transformer.

3.3 Lu - Undervoltage

Meaning: The DC bus voltage is lower than the detection level (200V series<200V, 400V series<400V).

Common reasons:

Instantaneous power outage or low power supply voltage.

The power capacity is insufficient, and the voltage drops when the large motor starts.

The main circuit contactor (MC) has poor contacts.

handle:

If occasionally caused by a momentary power outage, F14 can be set to 4 or 5 (instantaneous power outage restart) to automatically restart after the power is restored.

Measure the input voltage, and if it is lower than the rated voltage by more than 15%, improve the power supply.

Check whether the MCCB and MC wiring terminals are overheated or oxidized, and replace them if necessary.

3.4 0l1/0l2- Motor overload

Meaning: Electronic thermal relay action, motor overload for a long time.

handle:

Check if the load is too heavy (the ammeter monitors whether the output current exceeds the rated current of the motor).

Confirm that parameter F11 (overload detection level) is set to the motor nameplate current value (unit: A).

If the motor is a frequency conversion dedicated motor with an independent fan, set F10 to 2 (constant cooling effect).

Reduce load or install external heat dissipation.

3.5 0h1- Overheating of heat sink

Meaning: IGBT heat sink temperature exceeds 90 ° C.

Reason:

The ambient temperature is too high (>50 ° C).

Cooling fan malfunction or blockage.

The high carrier frequency F26 (>12kHz) results in significant losses.

handle:

Clean the dust from the fan and heat sink.

Check if the fan is rotating (FRN0010C2S and above models have fans). If it is not rotating, replace the fan (please consult Fuji for the model).

Reduce F26 to below 4kHz.

Improve cabinet ventilation and install exhaust fans if necessary.

3.6 ER2- Panel Communication Error

Meaning: Communication interruption between remote control panel and frequency converter.

handle:

Check if the RJ-45 cable is securely plugged in and if there are any broken wires.

If using a standard panel, confirm that SW3 (terminal resistor) is turned off.

Replace the remote panel for testing.

3.7 er8- RS-485 communication error

Meaning: Modbus RTU communication exception.

handle:

Check that y01 (station number), y02 (baud rate), y03 (data format) are consistent with the upper computer.

Confirm that the A+and B - connections of the 485 bus are correct, and connect a 120 Ω terminal resistor (SW3 ON only applies to end devices).

Use an isolated 485 converter to reduce interference.

Error prone points and optimization suggestions for parameter settings

4.1 Motor parameter initialization (automatic tuning)

When the frequency converter drives a non Fuji standard motor or a long line connection, it is recommended to tune the motor for optimal control performance.

Steps:

Set P02 (rated motor capacity, kW) and P03 (rated motor current, A）。

Set P99 (motor type): 0 for Fuji 8 series, 4 for other brands, 1 for HP system.

Set P04 to 1 (static tuning) or 2 (rotational tuning). Rotating tuning requires disconnecting the load.

Press the RUN button, and the frequency converter will automatically measure P06 (no-load current), P07 (primary resistance% R1), P08 (leakage impedance% X), and P12 (rated slip).

P04 will automatically reset to zero after tuning is completed. If er7 is displayed, check if the motor wiring is missing phase or if the parameter settings deviate significantly.

4.2 Reasonable setting of acceleration/deceleration time

Light load (fan, water pump): Acceleration can be as short as 1-5 seconds.

Heavy load (conveyor, mixer): It is recommended to wait for 10-30 seconds to avoid overcurrent.

Two sets of acceleration and deceleration times (E10/E11) can be switched through external terminal RT1.

If the mechanical impact is large, using S-curve acceleration and deceleration (H07=1 or 2) will prolong the actual time by about 10-20%.

4.3 Carrier frequency and motor noise

The default value for F26 is 2 kHz (Asia/USA) or 1 kHz (Europe). Increasing the carrier frequency can reduce motor noise, but it will increase the heating of the frequency converter.

In high temperature environments or long lines (>50m), the carrier wave should be reduced to minimize leakage current and false alarms.

If you want to force the frequency converter not to overheat under high carrier, you can set bit 0=1 of H98 (automatically reduce carrier), but it will sacrifice the noise level.

4.4 Multistage speed and PID control

Multi speed: By combining SS1, SS2, SS4, and SS8 terminals (corresponding to X1~X3 and FWD/REV configurations), up to 16 frequencies can be achieved. Corresponding parameters C05~C19.

PID control: Set J01 to 1 (positive action) or 2 (negative action), set J02 as the source of PID commands (1=terminal [12] or [C1]), and J03~J06 as PID parameters. Commonly seen in constant pressure water supply.

Maintenance and lifespan management

5.1 Daily and Regular Inspections

Daily: Observe whether the LED display is normal, whether there is any abnormal noise or odor, and whether the cooling fan is rotating.

Every six months:

Clean the dust on the heat sink using compressed air.

Tighten the main circuit terminals (1.2 N · m for M3.5, 1.8 N · m for M4).

Measure the capacitance of the DC bus (check the relative value through maintenance menu 5_05, it is recommended to replace it if it is below 85%).

Every 3-5 years: Replace the cooling fan (if the cumulative operation exceeds 87000 hours, a life alarm LIFE will be triggered, corresponding to the output terminal signal).

Every 10 years: Replace the DC bus capacitor and circuit board electrolytic capacitor (even if there is no alarm, preventive replacement is recommended).

5.2 Predicting faults using maintenance information

Enter the programming mode menu # 5 "Maintenance Information" to read:

5_00: Accumulated power on time (unit: 1000 hours).

5_05: DC bus capacitance ratio (%). If it is below 85%, it should be prepared for replacement.

5_07: Accumulated running time of cooling fan (should be replaced if it exceeds 87000 hours).

5_08: Number of starts (can be used as a reference for the lifespan of the contactor).

By configuring the LIFE signal (E20/E27 data 30) through the output terminal, an early alarm can be triggered when the lifespan expires.

5.3 Common Misconduct and Recovery

Parameter lock cannot be modified: Check if F00 is set to 1 or 3 (data protection), change it to 0 or 2.

The panel cannot access the full menu: check E52 and set it to 2 (full menu mode).

Unable to reset after alarm: The run command (FWD/REV or RUN key) must be set to OFF first, and then press the RESET key or disconnect the RST terminal pulse.

To reset to factory settings after accidentally changing parameters: Set H03=1 (all initialized), note: H03 modification needs to be confirmed by pressing the ▲+▼ keys simultaneously.

Comprehensive case: A wind turbine frequency converter frequently jumps 0c1

Phenomenon: FRN0012C2S-2 drives a 2.2kW fan, occasionally reporting 0c1 when starting, and the acceleration time has been set to 15 seconds.

Diagnostic steps:

Check the alarm history (menu # 6, latest alarm record) and confirm that it is 0c1 (accelerated overcurrent).

Measure the output current, and the peak value at the moment of startup reaches 18A (rated 12A for the frequency converter, with a 150% overload capacity of 18A for 1 minute), but the fan is only 5A during normal operation.

Check that the length of the motor cable is about 80 meters and no output filter has been added. Long lines cause excessive distributed capacitance, resulting in a spike in charging current during startup.

Solution: Reduce the carrier frequency F26 from 8kHz to 4kHz and set H12=1 (enable instantaneous overcurrent limitation). At the same time, an output reactor (OFL) is installed on the output side of the frequency converter. After adjustment, 0c1 disappeared.

Inspiration: When driving with a long line, it is necessary to reduce the carrier frequency and consider the output reactor, and the motor tuning should be carried out after the line is connected.
