HONEYWELL Modutrol IV Series Motor Technology Analysis: Performance, Selection, and Application Guide

In building automation and HVAC systems, the reliability and accuracy of actuators directly affect the overall operational efficiency and control quality of the system. The Modutrol IV series motor launched by Honeywell, as the fourth generation product of its classic Modutrol series, has become an ideal choice for controlling dampers and valves in industrial and commercial buildings due to its sturdy structure, flexible configuration, and excellent torque output capability. This article will focus on the five core models M6161, M6181, M6184, M6191, and M6194 in this series, and provide a comprehensive and in-depth professional interpretation from the aspects of technical specifications, electrical characteristics, mechanical structure, accessory systems, and installation applications.

Product positioning and technological advantages

The Modutrol IV series motors belong to 3-wire floating control actuators, suitable for use with SPDT (single pole double throw) or floating point output controllers, and are widely used in the control scenarios of air door regulation, water valves, and steam valves in HVAC systems. Its core advantages are reflected in the following aspects:

Oil immersed motor and gear system: The motor and gear mechanism adopt an oil immersed design, which not only significantly improves the smoothness of operation, but also extends the service life of the equipment, especially suitable for long-term continuous operation conditions.

NEMA 3 level junction box: The standard junction box meets NEMA 3 standards and has good rain and dust resistance, ensuring reliable operation of the equipment in outdoor or humid environments.

Flexible electrical interface: The standard configuration is quick connect terminals, and a screw terminal adapter (220741A) can be optionally selected to adapt to different installation habits and on-site wiring requirements.

Adaptation bracket design: In order to facilitate the replacement of old M644 series motors, the standard configuration includes an adapter bracket, which can accurately match the shaft height of old equipment and simplify the renovation cost.

Scalability of auxiliary switches: Built in auxiliary switches can be pre installed in the factory or added on-site in the TRADE model according to requirements, enhancing the control flexibility and system integration of the equipment.

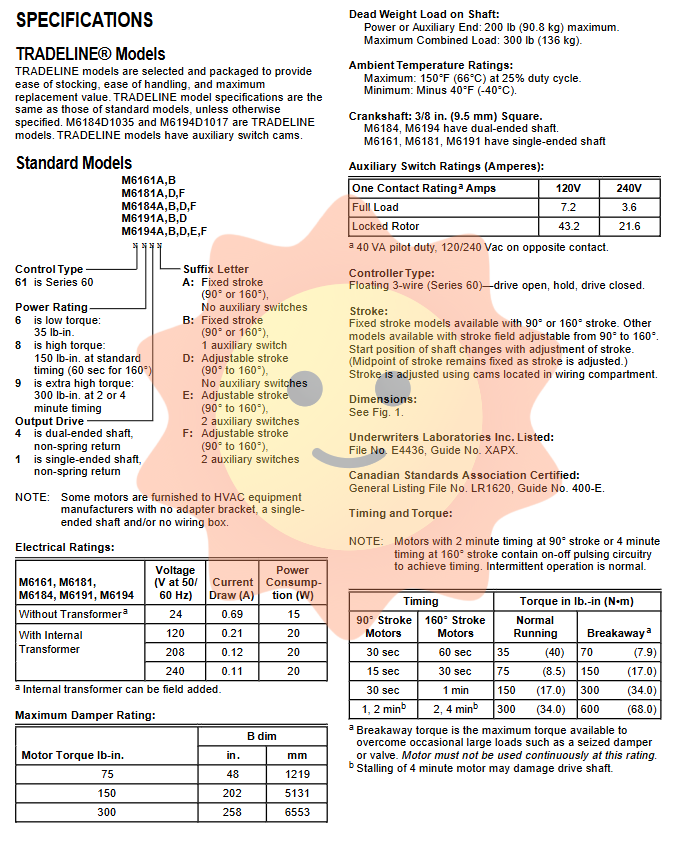

Model Composition and Naming Rules

The Modutrol IV series models adopt a systematic coding method, which facilitates users to quickly identify product characteristics based on application needs. Taking the standard model as an example, its coding rules are as follows:

Control type: 61 represents Series 60 floating-point control.

Power level:

6: Low torque, 35 lb in

8: High torque, 150 lb in (standard timing 60 seconds/160 °)

9: Ultra high torque, 300 lb in (timed for 2 or 4 minutes)

Output driver form:

4: Dual output shaft, non spring reset

1: Single output shaft, non spring reset

Based on the above rules, the main models include:

M6161: Low torque, single output shaft

M6181: High torque, single output shaft

M6184: High torque, dual output shafts

M6191: Ultra high torque, single output shaft

M6194: Ultra high torque, dual output shafts

In addition, TRADELINE models (such as M6184D1035, M6194D1017) have optimized packaging and inventory management based on the standard model, and come standard with auxiliary switch cams for easy on-site functional expansion.

Electrical parameters and control characteristics

1. Power supply and power consumption

The Modutrol IV series supports multiple power supply methods, and users can choose models without internal transformers or choose built-in transformers to achieve 24V power supply based on on-site power conditions. The specific electrical parameters are as follows:

Voltage (V, 50/60Hz), Current (A), Power Consumption (W)

24 (without transformer) 0.69 15

120 (built-in transformer) 0.21 20

208 (built-in transformer) 0.12 20

240 (built-in transformer) 0.11 20

The built-in transformer models include 198162JA (24V), 198162EA (120V), 198162GA (220V), and 198162AA (120/208/240V), which can be flexibly installed on site to meet different voltage level requirements.

2. Control mode

This series adopts floating-point control mode, which realizes three states of "forward drive hold reverse drive" through three wire wiring, suitable for proportional control actuator systems, and can accurately adjust the opening or position of the air door or valve.

3. Travel adjustment

The travel can be adjusted on-site within the range of 90 ° to 160 °, and the adjustment method is completed through the cam inside the wiring chamber. It should be noted that stroke adjustment will change the starting position of the shaft, but the midpoint of the stroke remains unchanged. This design ensures the stability and linearity of the control system.

Torque characteristics and mechanical load capacity

1. Torque output

There are significant differences in the normal operating torque and starting torque between different models of Modutrol IV motors, as follows:
