KEYENCE GC-1000 Safety Controller Manual

KEYENCE GC-1000/GC-1000R Safety Controller Engineering Configuration and Troubleshooting Manual

In the field of industrial automation, programmable safety controllers are gradually replacing traditional hard wired safety relays to meet increasingly complex mechanical safety requirements. The Keyence GC series safety controllers have become the preferred solution for many equipment manufacturers and system integrators due to their modular expansion capabilities, rich communication interfaces, and safety levels up to SIL 3/PL e/Cat. 4. Among them, GC-1000 is a semiconductor output type main controller, while GC-1000R has three sets of built-in relay outputs, suitable for directly driving AC loads. This article will provide a comprehensive and actionable practical guide for engineering and technical personnel from the dimensions of system selection, installation and wiring, functional block application, response time calculation, fault classification, and equipment replacement.

Comparison of Product Positioning and Core Specifications

The GC-1000 and GC-1000R constitute the two main controllers of the GC series, with the main differences reflected in output types and I/O points.

Project GC-1000 GC-1000R

Safe input points 16 14

Safe output (semiconductor) 6-way PNP -

Safety relay output -1 set (3a contacts)

AUX output 4 channels (PNP/NPN optional) 4 channels

Test output 4 channels and 10 channels

GC Link ports 2 x 2

Communication interface USB+Ethernet USB only

Network protocols such as EtherNet/IP, PROFINET, Modbus/TCP, etc. are not available

Dimensions (W × D × H) 60 × 95 × 90 mm 85 × 95 × 90 mm

Both support up to 10 expansion units and 4 remote I/O modules, and are connected to slave devices such as safety light curtains and safety door switches through GC Link. The GC-1000R is larger in size due to its built-in relay and does not have Ethernet communication capabilities, making it suitable for traditional applications that do not require fieldbus integration.

Safety parameters (applicable to both)

T1 (validation testing interval): 20 years

Hardware fault tolerance: 1

Safety status: Safety output OFF

PFH (dual channel semiconductor output with self diagnosis): 1.02 × 10 ⁻⁹/h

PL：e（Cat.4）

This means that the GC series can operate stably for a long time at the highest level of safety integrity, suitable for high-risk equipment such as stamping machinery, robot workstations, packaging lines, etc.

Installation environment and mechanical installation requirements

2.1 Environmental Restrictions

Do not use GC series in the following places:

Direct sunlight, ambient temperature exceeding -10 ℃~+55 ℃, or humidity exceeding 5%~85% RH

Presence of corrosive gases, flammable gases, salts, iron powder, or oil mist

Direct vibration or impact (must meet the vibration frequency of 5-9 Hz with a half amplitude of 3.5 mm and an acceleration of 10 m/s ² between 9-150 Hz)

Altitude exceeding 2000 meters, strong magnetic field or radiation area

2.2 Installation Method

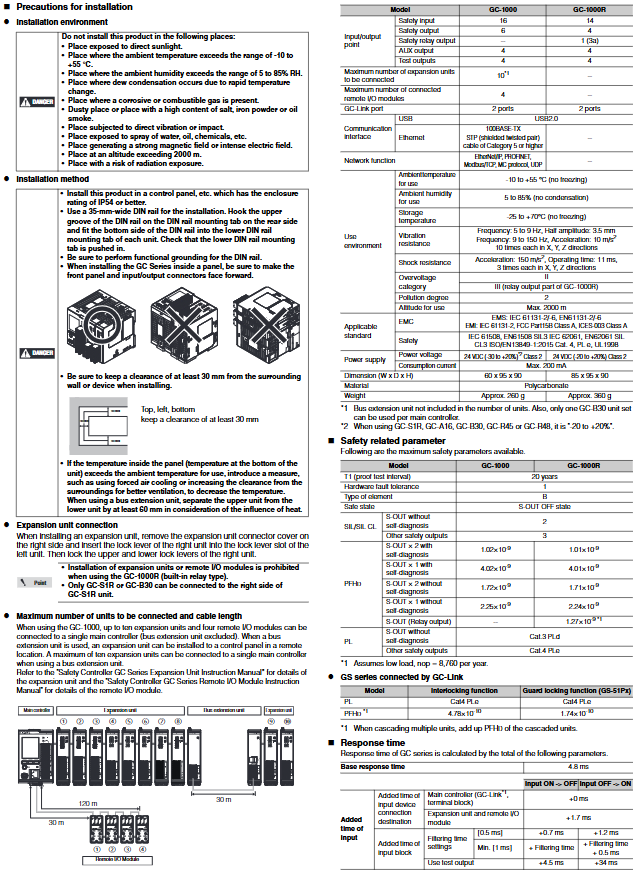

The controller must be installed in a control cabinet with a protection level of IP54 or higher. Install using a 35mm wide DIN rail as follows:

Hang the upper hook on the back of the device onto the upper edge of the guide rail;

Press the lower part until the lower hook locks in place;

Confirm that all hooks are engaged.

Functional grounding of DIN rails.

2.3 Heat dissipation distance

When installing a single unit, maintain a minimum heat dissipation gap of 30mm in all directions.

When using a bus expansion unit, there should be a minimum distance of 60mm between the upper and lower units.

If the temperature inside the cabinet exceeds the standard, forced air cooling or increasing the gap should be used.

2.4 Expansion Unit Connection

The right side of GC-1000 can connect up to 10 expansion units (such as GC-S1R, GC-A16, GC-B30, GC-R45, etc.). GC-1000R only allows connection to GC-S1R or GC-B30 and cannot use bus expansion units. During installation, remove the protective cover of the right interface, insert the locking rod of the right unit into the slot of the left unit, and then lock the upper and lower locking rods.

Electrical wiring specifications and safety precautions

3.1 Power Supply and Grounding

Power supply voltage: 24 V DC, GC-1000 allows -30%~+20%, GC-1000R allows -20%~+20%, both require Class 2 power supply.

Power consumption: maximum 200 mA.

Functional grounding: The 0V terminal of the power supply must be connected to the system grounding point, and the DIN rail must be grounded.

3.2 Safe input wiring

Safe input compatible with dry contacts (mechanical switches) or PNP output sensors. Do not use NPN output devices. Electrical parameters:

ON level: ≥ 11 V/2 mA

OFF level: ≤ 5 V/1.5 mA

Maximum cable length: 100 meters

When SIL 2/PL d and above levels are required and PNP output sensors are used, equipment with dual OSSD outputs and inter channel short circuit detection function (such as Type 4 safety light curtains) must be selected.

Application of test output: The GC series provides multiple test outputs (PNP, maximum 100 mA), which can provide pulse power for external NC contact sensors to detect cross circuits and short circuits. Typical wiring example:
