2. Trigger and output
Support separate trigger input and separate select light output, suitable for multi camera time-division imaging scenes.
The I/O monitoring function can display the real-time status of input and output signals on the settings interface, facilitating on-site troubleshooting of wiring problems.
3. Storage and Backup
The program can be saved in internal memory or CF card and can be copied from each other. The CF card can also directly output measurement data in CSV format.
The screenshot function can save the current display image as a BMP file to a CF card for remote technical support.
Troubleshooting and Common Misconceptions
Based on on-site service experience, the following are common problems and their solutions for the CV-3000 series:
Quick investigation and resolution of possible causes of problem phenomena
Camera not triggered or image not updated 1. Trigger signal not correctly connected
2. Trigger mode setting error (such as edge/level)
3. Excessive exposure time leads to processing timeout. Use an I/O monitor to confirm if there is any level change in the input. Check if the 'trigger type' in the parameters matches the PLC output. Shorten exposure time or enable partial reading.
The test results are unstable, sometimes good and sometimes bad. 1. Changes in lighting (fluorescent flicker, external light interference)
2. Product vibration causes positional deviation
3. If the color threshold is set too narrow, switch to DC lighting and install a light shield. Enable continuous capture mode to take the average. Use a color bar chart to appropriately widen the upper and lower limits of brightness.
Color extraction cannot extract the target 1. The brightness of the target color is too low (dark green, deep blue)
2. The ambient light causes color shift and switches to A.C.E. color binarization mode, while increasing camera sensitivity (gain). Use HSB mode and focus on the hue range.
Part of the cameras in the multi camera system have no images. 1. The CV-E300 expansion unit is not powered correctly
2. Camera cable damage
3. Camera address conflict check expansion unit power indicator light. Replace the high flexibility cable. Re enumerate cameras in system settings.
Program save failed. Internal memory or CF card is full. Delete unnecessary programs or historical images. Use the formatting function to reformat the CF card (note backup).
Communication failure (PLC link) 1. Inconsistent baud rate/data format
2. Station number setting error
3. Check the communication parameter table for cable wiring errors. Confirm whether the corresponding data area range in the PLC is large enough. Measure whether the RS-232C signal line (SD/RD) crosses correctly.
The screen does not display or displays abnormally. 1. The monitor does not support SVGA resolution
2. The brightness/contrast of the display screen is adjusted to the lowest level to ensure that the monitor supports 800 × 600 60Hz. The default display settings can be restored through the remote control or offline menu.
Important Misconceptions Reminder:
Misconception between Shutter Speed and Brightness: Although increasing the shutter speed can freeze motion, it will significantly reduce image brightness. We should first increase the intensity of the light source or improve the camera sensitivity (gain), rather than simply increasing the shutter speed.
Color extraction relies on a single point selection: simply clicking on the target area is easily affected by the noise of that pixel. Suggest using 'region sampling' to take the average of multiple pixels as the color reference.
Ignore lens selection: A 2-megapixel camera must be paired with a high-resolution, low distortion lens (such as the CA-LH series), otherwise the actual resolution will be limited by the lens. Specialized small cameras (CV-S series) must use matching specialized lenses (CA-LHS/LS series).

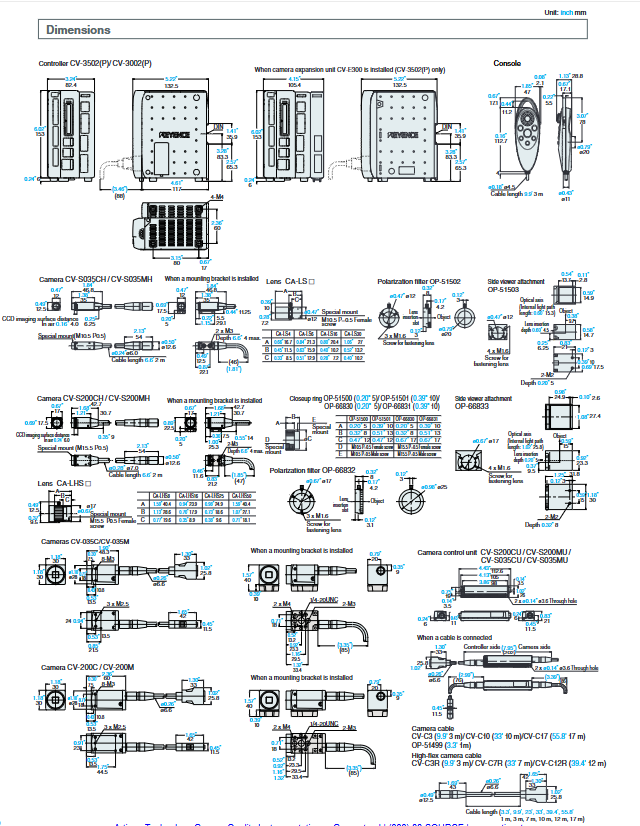

Lens and Lighting Selection Guide
1. Ordinary C-port camera (CV-200/035C)
Routine testing: CA-LH series high-resolution low distortion lens, suitable for million pixel level.
Large field of view or special working distance: Standard CCTV lenses are also acceptable, but please note that distortion can affect measurement accuracy.
Far center detection: CA-LM series far center lens, used to measure objects with large height changes (such as screw height, connector coplanarity).
2. Specialized small camera (CV-S200/S035)
Keyence specialized lenses must be used because their interface threads are M15.5 and M10.5 respectively, and they are non-standard C-ports.
By observing the attachment from the side, the camera can be installed at a 90 ° angle, saving depth space.
3. Lighting
Standard options: CA-D series LED ring light, backlight, bar light.
For color detection, it is recommended to use white LED and regularly calibrate with white balance.
Maintenance and Backup Strategy
Program and parameter backup:
Regularly copy items from internal memory to the CF card. Suggest backing up every six months.
Connect to PC via USB, use Pro Designer (if supported) or copy directly through file management function.
Lens and camera cleaning:
Clean the lens with a lens cloth or specialized cleaning stick to avoid scratches.
