External resistor: For BG5-BG7, the grid side reactor is mandatory. The minimum resistance and continuous power of the external resistor must refer to Appendix A.2 (for example, the minimum resistance of SO84.110 in BG6 is 10 Ω). At the same time, it is necessary to use the bimetallic switch on the braking resistor and connect it in series to the enable circuit of the driver to achieve over temperature protection.

Chapter 4: Debugging and Parameter Configuration - Soul Injection of Driver System

After the completion of hardware wiring, debugging is the key to enable ServoOne to adapt to the original system process.

4.1 First Power on and Connection

Only connect the 24V control power supply: Do not connect the main power supply at this time. The display screen should show "51", indicating that initialization is complete and not ready.

PC connection: Connect the PC to the DriveManager 5 software via USB (X2) or Ethernet (X3) interface.

Parameter settings: Use the "Debugging Wizard" of DriveManager 5 to complete the settings of motor parameters, encoder types, and control modes. If using LTi's LSH/LST servo motors, you can download the latest motor dataset from the official website.

4.2 Control panel operation (without PC debugging)

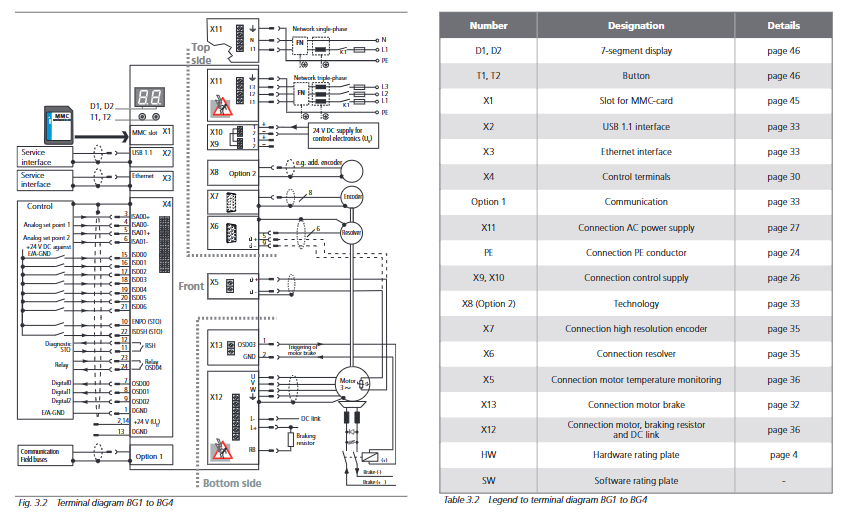

When the computer is not around, the device's built-in 7-segment digital display (D1, D2) and buttons (T1, T2) are powerful tools.

Parameter menu (PA):

Pd: Download parameters from MMC card.

Pu: Upload parameters to MMC card.

Pr: Restore to factory settings.

IP Address Setting (IP): Set the IP address in hexadecimal through the lub, b1, b2, b3 submenus (for example, set the ". 5" of 192.168.39.5 to "05"). The subnet mask setting is the same.

Fieldbus address (Fb): If equipped with fieldbus options (such as EtherCAT, SERCOS), set the station number through the Ad submenu.

4.3 Startup Sequence

Successful startup requires strict timing coordination:

Activate ISDSH and ENPO (high level).

Wait for at least 2ms.

Activate the 'START Control' and provide a speed command.

At this point, the drive status should change from "52" (ready) to "4" (motor excitation, powered on), and finally to "5" (running).

Chapter 5: Fault Diagnosis and Maintenance - Ensuring Long term Stability of the System

Facing occasional faults during operation, rapid localization is the core ability of engineers.

5.1 7-segment digital tube diagnosis

Equipment status: The digital display shows a numerical code. For example, the flashing "5" indicates the activation of the STO function; The flashing decimal point in "4" indicates power level activation.

Error code: displayed as a loop of "Er" ->"Error number" ->"Error location". For example, Er ->05 (overcurrent) ->01 (hardware monitoring). This encoding method is similar to the fault code logic of systems such as Honeywell, making it easy to quickly locate and consult the manual.

5.2 DriveManager 5 Deep Diagnosis

When connected to a PC, diagnostic capabilities are greatly enhanced.

Equipment status window: Real time monitoring of driver status words, actual current, and DC bus voltage.

Error History: Record the last 20 errors that have occurred, facilitating analysis of occasional faults.

Parameter 31 (Warning and Alarm Details): This is an extremely powerful diagnostic parameter. It provides more detailed fault information than digital tubes, including:

Reason for malfunction: such as "undervoltage detection" and "new reference value violating lock limit".

Timestamp: Running hours.

Source file: The location of the software code that triggered the fault (e.g../source/MPRO_CTRL. c).

Additional information: Actual current value at the moment of fault.

5.3 Common fault scenarios and countermeasures

Phenomenon: After being powered on, the status remains at "52" and cannot be activated.

Troubleshooting: Check if ISDSH (X4/22) and ENPO (X4/10) have been pulled down by external safety circuits; Check if the 24V power supply is stable.

Phenomenon: The motor reports "overcurrent" during operation.

Troubleshooting: Check if the motor cable is too long (see Table A.19, maximum allowable length of 25m in C3 class environment at 8kHz); Check if the power level trip is caused by a motor grounding fault; Check if the switch frequency is set too high, causing a decrease in rated current (see Table A.3-A.6).

Phenomenon: The position is inaccurate after replacing the drive.

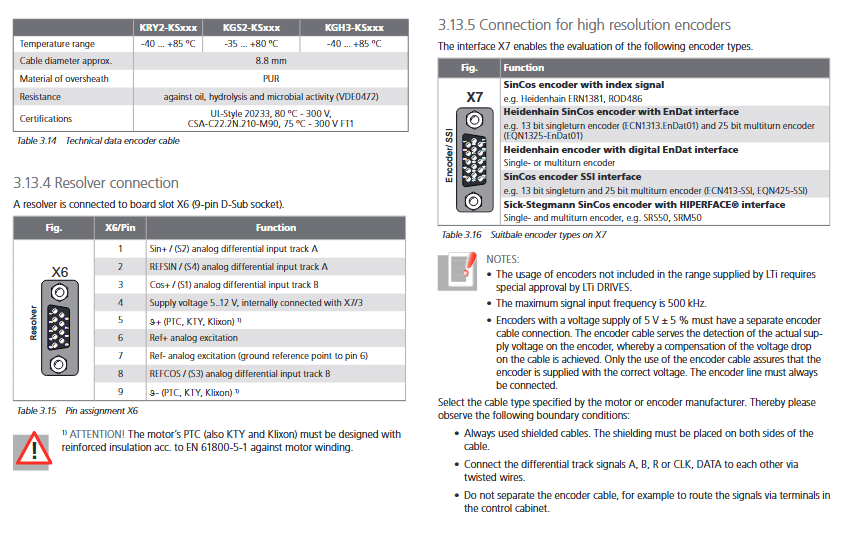

Troubleshooting: Confirm that the encoder cable type (Resolver vs. EnDat vs. HIPERFACE) matches the X6/X7 interface; Confirm that the encoder parameters (line count, resolution) are imported correctly; Check if the Sense wire of the X7 terminal is connected to ensure sufficient power supply to the encoder.
