Mitsubishi GT27 HMI Application Guide

Wireless communication: Optional wireless module (such as GT27-WLAN) can be used to achieve wireless connection with mobile devices or remote I/O.

Multi channel concurrency: GT27 supports the simultaneous use of multiple communication ports, such as one port monitoring PLC data, another port communicating with barcode scanners, and a third port connecting to printers.

MES/ERP integration: By utilizing the scripting function and SQL instructions of GT27, production counting, equipment status, and other data can be directly written into the database (via Ethernet connection) to build a workshop information system (MES). For example, after completing each workpiece, GOT automatically inserts a record into the database for real-time production statistics.

Engineering Application and Selection Suggestions

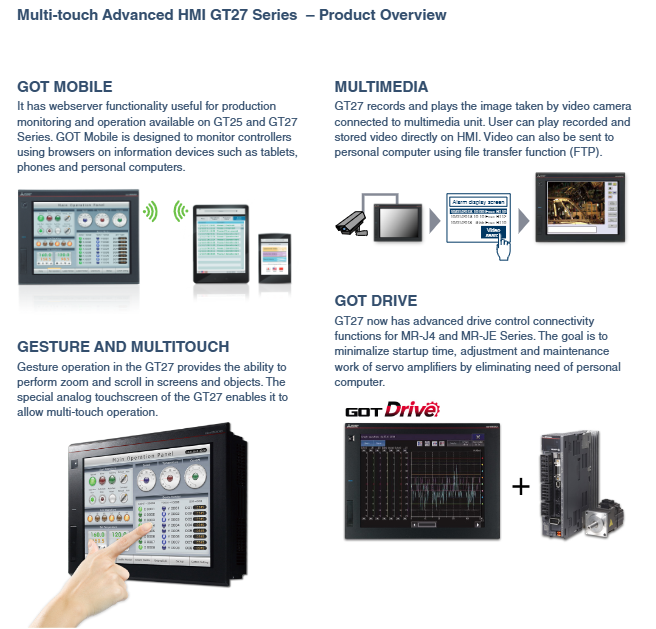

9.1 Comparison with other GOT series

Features GT27 GT25 GT23

Multi touch support is not supported

Gesture operation is not supported

The built-in web server is a partial model

Recording/playback requires multimedia unit, but multimedia unit is not supported

GOT Drive supports MR-J4/JE, some models are not supported

Is there a human body sensor

ROM capacity 57 MB 32 MB 15 MB

RAM capacity 128 MB 128 MB 64 MB

9.2 Selection steps

Determine screen size and resolution: 5.7 inches (VGA) is suitable for small device panels; 8.4 inches (SVGA) is a universal choice; 10.4-inch (VGA/SVGA) suitable for medium to complex images; 15 inches (XGA) for large control centers.

Evaluate whether multi touch is needed: If the user interface requires zooming in and out of the map or scrolling through lists, GT27 should be selected; Otherwise, GT25 is more economical.

Confirm communication protocol: Check if the PLC, servo, and frequency converter that need to be connected are in the support list of GT27.

Considering the environment: If there is oil or moisture in the usage environment, it is necessary to choose a protective cover or select an IP67F front panel model (some models).

Additional features: If remote access is required, ensure that the selected model supports GOT Mobile (all GT27 models support it). If recording is required, a multimedia unit must be ordered.

9.3 Common problems and solutions for on-site debugging

Problem 1: No response from multi touch

Check if gesture functionality is enabled in GT Designer 3 and if gesture events are bound to related objects.

Confirm that the firmware version supports multi touch (which can be viewed through GOT system information).

Calibrate touch screen: Enter maintenance mode of GOT and perform touch calibration (special parameters need to be calibrated for multi touch).

Problem 2: GOT Mobile cannot be accessed

Confirm that the Ethernet settings of GOT are on the same network segment as the local area network, and that the subnet mask is correct.

Check if the Windows firewall or enterprise security policy is blocking the HTTP port (80).

In the web server settings of GOT, ensure that 'Enable GOT Mobile' is checked and set the correct user permissions.

Problem 3: Video recording cannot be saved

Confirm that the multimedia unit has been installed correctly and the camera is recognized by GOT (which can be viewed on the system monitoring screen).

Check if the storage medium (USB flash drive or SD card) is formatted and has sufficient remaining space.

Whether the conditions for triggering video recording are met (such as PLC being ON).

Problem 4: Unable to write servo parameters

Confirm that the communication cable between GOT and servo is connected correctly, and that the servo power supply is connected.

In the GOT project, assign the correct station number (such as CC Link station number or network node address) to the servo drive.

Some servo parameters need to be powered off and restarted before they can take effect. Please pay attention to the confirmation prompt for writing GOT.

Maintenance and spare parts strategy

Since its launch, Mitsubishi Electric has continuously provided supply and technical support for the GT27 series. Given the lifecycle of electronic products, it is recommended that users:

Regularly backup the engineering files and system data of GT27 and save them to the server or USB drive.

For critical workstations, prepare spare parts (at least one GT27 of the same model) to prevent prolonged downtime caused by sudden failures.

When GT27 experiences hardware malfunctions (such as touch failure or backlight aging), you can contact Mitsubishi authorized repair centers for repair or replacement.

If the GT27 is discontinued in the future, it may be considered to upgrade to subsequent models (such as the GT30 series, if available) or keep the GT27 as a spare parts inventory.
