Microchip PIC16F182X Low Power Design

PIC12F/PIC16F182X 8-bit MCU: Practical Guide to Ultra Low Power Design and Peripheral Integration

In embedded development, choosing a microcontroller that can meet performance requirements and strictly control power consumption is often the key to project success. Microchip's PIC12F/PIC16F182X series was born for this purpose - as the latest generation of 8-bit products, it integrates rich peripherals in 8 to 20 pin packages, while maintaining pin compatibility with previous low pin count PIC devices, making it convenient for engineers to achieve functional upgrades without modifying the PCB. This article will deeply analyze the engineering application points of this series of MCUs from five dimensions: architecture, power consumption, peripherals, selection, and development tools.

Enhanced mid-range kernel: an execution engine optimized for C code

This series is equipped with an enhanced mid-range core with a working frequency of up to 32 MHz, which has three significant improvements compared to traditional PIC cores:

Hardware on-site storage: When an interrupt responds, the CPU automatically saves key registers without software stack, minimizing interrupt latency.

Optimized instruction set: Added instruction support for indirect addressing and relative jumps, making the code generated by the C compiler more compact and efficient.

Storage access acceleration: The program memory adopts Flash technology, supports self reading/writing, and can achieve boot loading, data logging, and firmware updates.

For engineers migrating from old models such as PIC16F84, they can directly use the original PCB layout and only need to update the firmware to get a doubled performance experience.

NanoWatt XLP technology: pushing power consumption to the limit

In low-power IoT devices and battery powered applications, standby current is a key indicator. The PIC1XF182X series has created multiple industry records through nanoWatt XLP technology:

Sleep mode: Typical current as low as 20 nA (VDD=1.8V), almost negligible. This is due to the independent low-power regulator and fine clock gating.

Operation mode: When running at full speed at 32 MHz, the current consumption is less than 50 µ A/MHz, which is much lower than that of 8-bit MCUs of the same level. Taking 1 MHz operation as an example, the total current is about 50 µ A.

Low power watchdog timer: periodic wake-up current<500 nA, suitable for applications that require timed wake-up from sleep to check sensors.

Real time clock: When using an auxiliary oscillator (32.768 kHz), the RTC operates with a current<800 nA and can maintain an annual error of less than 2 minutes.

Engineering point: If further power consumption reduction is required, attention should be paid to configuring unused I/O pins - they should be set as output or input and enabled with weak pull-up to avoid additional leakage caused by floating input.

Communication and Signal Modulation: From Standard Interfaces to Custom Waveforms

This series integrates multiple communication modules on limited pins and supports pin remapping, greatly alleviating pin conflict issues.

3.1 Standard Serial Interface

EUSART: Supports asynchronous, synchronous, and LIN protocols, with automatic baud rate detection.

MSSP module: configurable as SPI or I ² C. On models such as PIC16F1827/1829/1847, dual MSSPs are available, which can simultaneously mount two I ² C bus or SPI devices with different addresses, such as one for sensors and the other for external EEPROM.

3.2 Data Signal Modulator (DSM)

This is Microchip's proprietary peripheral that can generate ASK (amplitude shift keying) and PSK (phase shift keying) waveforms without code overhead.

Working principle: DSM logically combines carrier signals (from internal clock or external pins) with modulation sources (such as UART data transmission or PWM output) to directly output modulated signals.

Typical applications: infrared remote control (ASK with 38 kHz carrier), RF transmission (such as 315/433 MHz OOK modulation), power line communication.

Save resources: Traditional methods require PWM to generate carriers and use timer bits to flip them, which consumes a large amount of CPU. After using DSM, only two registers need to be configured, and the modulation process is completely completed by hardware.

Code example idea: Connect the TX output of EUSART to the modulation input of DSM, and use the PWM output (38 kHz) as the carrier. The DSM output can directly drive the infrared LED, achieving remote control coding for UART data transmission.

Human machine interface and analog peripherals: no need to touch dedicated chips

4.1 Capacitive Touch Sensing (mTouch)

This series offers two touch detection methods:

Integrated CSM module: dedicated for capacitance measurement, supporting up to 12 channels. It charges and discharges the touch button capacitor through a built-in constant current source, and compares the charging and discharging times. This method has strong noise resistance and does not occupy ADC resources.

Using ADC: Identify by detecting small capacitance changes caused by touch. Suitable for applications that require minimal touch buttons.

Design tip: To improve touch sensitivity, the sensor wiring on the PCB should be as short as possible, laid around the ground, and a series resistor should be used to limit the charging current.

4.2 10 bit ADC and comparator

ADC: Conversion speed can reach 50 ksps, with multiple positive reference voltage options (internal FVR, external VREF, VDD). In battery powered applications, internal 1.024V or 2.048V fixed references can be used to avoid VDD fluctuations affecting measurements.

Comparator: rail to rail input, output with programmable SR latch. The latch mode can construct simple hysteresis comparators or edge triggered interrupts, suitable for overcurrent protection, zero crossing detection, and other occasions.

Motor and lighting control: flexible PWM array

The PIC16F182X series offers up to 4 independent time base PWM modules (extended from standard CCP/ECCP). This means:

It can simultaneously control multiple outputs of different frequencies, such as one for LED dimming (high frequency, small duty cycle variation) and the other for DC motor speed control (low frequency, large torque range).

Each PWM module has independent cycle registers and duty cycle registers, supporting edge alignment or center alignment modes.

Combined with on-chip comparator, cycle by cycle current limitation can be constructed to protect power devices.

Application scenarios: CNC lighting (generating multiple PWM dimming after DMX decoding), six step commutation of three-phase BLDC motors (requiring external logic or the use of multiple PWM outputs).

Quick selection checklist: Quickly locate the best model

This series is divided into three sub families based on the number of pins, sharing the same peripheral framework. The main differences lie in storage capacity and the number of communication interfaces.

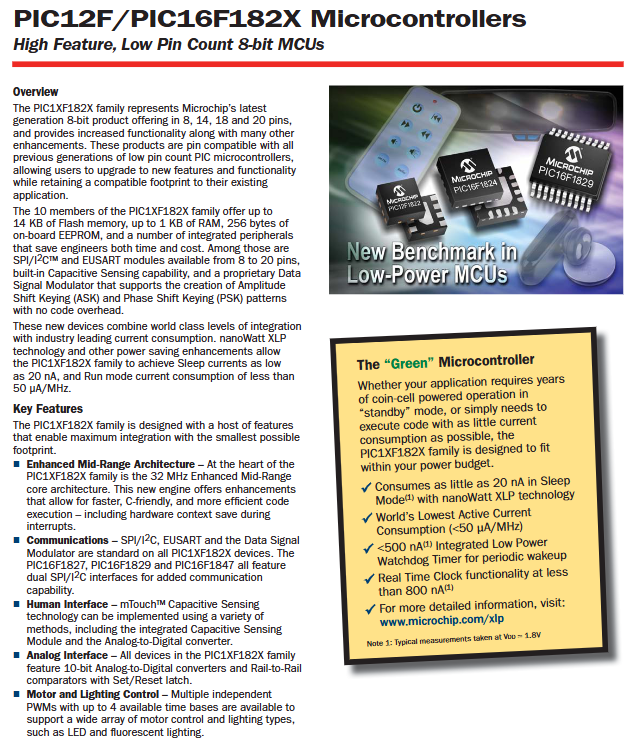

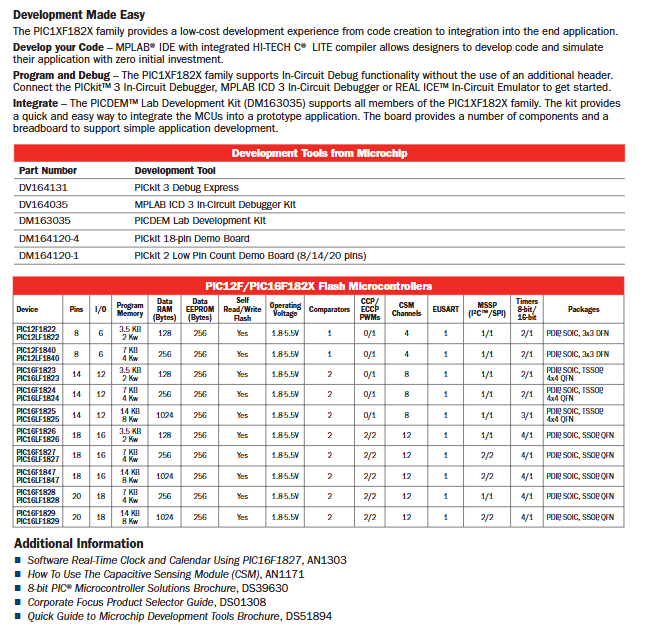

Model Pin Flash RAM EEPROM Featured Peripherals

PIC12F1822 8 3.5 KB 128 B 256 B 1×SPI/I2C, 4×PWM

PIC12F1840 8 7 KB 256 B 256 B Same as above, larger storage

PIC16F1823/4/5 14 3.5/7/14 KB 128/256/1024 B 256 B 8 touch channels, 2 comparators

PIC16F1826/7/47 18 3.5/7/14 KB 128/256/1024 B 256 B Dual MSSP, 2 × CCP, 12 touch channels

PIC16F1828/9 20 7/14 KB 256/1024 B 256 B up to 18 I/O, dual MSSP (only 1829)

Selection suggestion:

Only requiring simple I/O control and low power consumption, choose the 8-pin PIC12F1822.

Requires touch buttons and a lot of I/O, choose the 14 pin PIC16F1825 (14KB Flash, the most cost-effective).

It is necessary to mount both the I ² C sensor and SPI display screen simultaneously, and require dual buses. Choose the 18/20 pin dual MSSP model (such as PIC16F1847).

Development Tools and Ecology: Starting from Zero Cost

Microchip provides a complete development chain for the PIC1XF182X series with an extremely low entry-level cost:

Integrated Development Environment: Free MPLAB X IDE, supporting cross platform (Windows/Linux/macOS).

Compiler: Built in free HI-TECH C Lite compiler, with optimization levels sufficient to meet most applications. If higher code density is required, it can be upgraded to the standard or Pro version.

Debugging and programming: All devices support online debugging without the need for additional debugging heads. Simply connect PICkit 3 (DV164131) or MPLAB ICD 3 (DV164035) to program and step debug through the ICSP interface.

Development board:

PICDEM Lab Development Board (DM163035): Supports all 182X series, onboard potentiometers LED、 Button and breadboard area, suitable for rapid prototyping.

PICkit 18 pin demo board (DM164120-4): For 18 pin DIP packaging, direct plug and unplug testing.

Common problem: When programming with low voltage (such as VDD=3.3V), it is necessary to ensure that the programmer can provide sufficient voltage (PICkit 3 can output 3.3V or 5V). If the target board is powered by a battery, it is recommended to disconnect the battery during programming and have the programmer provide power to avoid voltage conflicts.

Typical application traps and avoidance

Based on the analysis of the data manual and errata for this series, engineers need to pay attention to the following points in actual development:

Sleep wake-up time: It takes approximately 3-5 clock cycles (with internal oscillator enabled) to wake up from sleep mode and execute the first instruction. If an external crystal oscillator is used, the wake-up time includes the oscillator start-up time, which may last for several milliseconds. High real-time wake-up requires the use of an internal oscillator.

ADC reference voltage: When selecting internal FVR (fixed voltage reference) as the ADC reference, the FVR module must be stably started before ADC sampling. The standard practice is to enable FVR in ADCON1 and insert a delay of at least 50 µ s before starting the conversion.

Capacitive touch PCB layout: The sensitivity of touch buttons is affected by parasitic capacitance. The key wiring should be kept away from high-frequency signals (such as SPI clock), and the reference capacitance of each touch channel (CSM module requires external Cref) should be ensured to have an accuracy of at least 5%.

Output polarity of data signal modulator: The output polarity of DSM can be configured, but it should be noted that in ASK modulation, if both the carrier and modulation signals are high and effective, the output may be constant high. It is usually necessary to invert the modulation signal or adjust the logic mode to obtain the correct envelope waveform.
