OMRON NE1A Safety Controller Troubleshooting and Replacement

General process for fault recovery:

Determine the type of error based on the combination of 7-segment code and LED.

Read error history (up to 100 records, including timestamps) through Network Configurator.

Eliminate external wiring or equipment malfunctions.

If the error lock time has not expired, you need to wait or manually reset (such as powering on again or switching modes).

Some non fatal errors (such as differential errors) need to be cleared by simultaneously turning off and then on the relevant inputs.

Practical operation of equipment replacement and configuration migration

When the NE1A controller needs to be replaced due to hardware failure or functional upgrade, the physical unit cannot be directly replaced, and compatibility of configuration data and verification of security signatures must be considered.

Replacement steps:

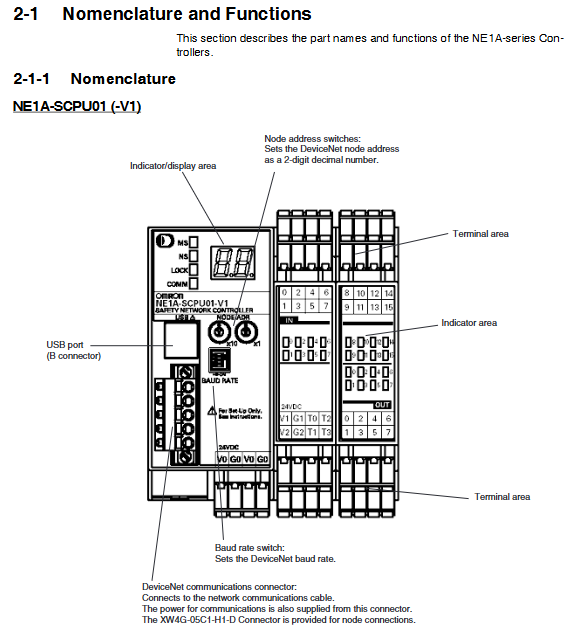

Record original unit information: node address, baud rate, I/O wiring, unit version.

Prepare a new unit: Set the same node address (rotary switch) and baud rate (DIP switch). If the new unit version is higher than the original unit, configuration conversion is required.

Connect to Network Configurator: via USB (recommended) or EtherNet/IP connection.

Upload original configuration: If the original controller can still communicate, first execute "Upload" to obtain the configuration. If the original controller is damaged, the previously backed up configuration file (. ncf or. cfs) needs to be used.

Convert device type (if necessary):

Right click on the device icon in the Network Configurator and select 'Change Device Type'.

Select the specific model and unit version of the new unit from the list (e.g. NE1A SCPU01 V1 Ver. 2.0).

Attention: After conversion, the off link connections settings may be lost and need to be reconfigured. The newly added functional parameters will be restored to their default values.

Download configuration: After confirming that all I/O connections and function block parameters are correct, execute "Download". If the original configuration has been locked, you need to enter the password to unlock it first.

Verify security signature: After downloading, the controller will regenerate the security signature. Suggest comparing the consistency between online devices and configuration files through the "Verify" function.

Lock Configuration: After confirming that the system is running correctly, use the Network Configurator to lock the configuration. At this time, the LOCK LED is constantly on to prevent accidental modifications.

Test safety function: manually trigger emergency stop, light curtain, safety door, verify output response and feedback time.

Special reminder for configuring data migration:

Upgrading from Pre Ver. 1.0 to Ver. 1.0 or higher, some functional blocks in the original program may not support the newly added Fault Present output and need to be manually updated in Logic Editor.

If Ethernet/IP models are used to replace non Ethernet/IP models, the original DeviceNet secure connection is not affected, but the newly added EtherNet/IP target I/O parameters need to be reset.

The password is stored in the controller and needs to be reset after replacement. If the original password is forgotten and communication is not possible, the password can only be cleared by resetting the controller to factory default settings (using the "Reset to Default" command, requiring physical switch coordination), but all configurations will be lost.

Maintenance and lifespan management functions

The NE1A series (unit version 1.0 and higher) offers contactor operation counters and total on-time monitors, which can be used for predictive maintenance.

Contact Operation Counter: Count the number of times local input, test output, or safety output goes from OFF to ON (0-4294967295). Can be used to evaluate the electrical life of relay contacts.

Total ON Time Monitor: Counts the total number of seconds in the ON state. Suitable for monitoring the actual operating time of devices such as indicator lights or heaters.

Set alarm threshold: Set a threshold for each terminal in the device parameters of the Network Configurator. When the count value exceeds the threshold, the corresponding status bit will be set in the remote I/O data and can be read by the standard master station.

Notes:

Counting and total time cannot monitor the same terminal simultaneously, and one mode needs to be selected in the 'Maintenance Counter Mode Choice'.

Changing the mode will clear the previously accumulated data.

Data is stored in non-volatile memory and will not be lost upon power failure.

Common Error Codes and Countermeasures Quick Reference Table

7-segment code/indication possible reasons on-site countermeasures

P1 (input terminal) external test signal fault (such as short circuit to 24V), differential error check input wiring and test output; Ensure that the dual channel input timing is within the difference time; Replace the faulty switch

P3 (output terminal) safety output overcurrent, short circuit to power supply, dual channel conflict check if the load exceeds 0.5A; check if the output line is short circuited to 24V; check if the user program outputs non equivalent values simultaneously (in dual channel mode)
