Allen Bradley 2711P series PanelView Plus human-machine interface terminal

Complete guide for on-site maintenance and troubleshooting of Rockwell Automation PanelView Plus 2711P series human-machine interface

In the field of industrial automation, Rockwell Automation's PanelView Plus series human-machine interface (HMI) has become a key operating terminal for numerous production lines and process control systems due to its robust design, flexible communication options, and powerful support from FactoryTalk View Machine Edition software. Covering multiple sizes such as 400, 600, 700, 1000, 1250, and 1500, PanelView Plus (2711P series) supports touch, keyboard, or keyboard+touch input, and offers standard and Windows CE. NET versions (PanelView Plus CE). This article is aimed at on-site engineers. Based on the official user manual, it provides an in-depth analysis of the hardware installation, power wiring, modular component replacement, communication configuration, startup fault diagnosis, and firmware upgrade methods for this series of terminals, helping you quickly restore system operation in case of equipment aging, failure, or upgrade.

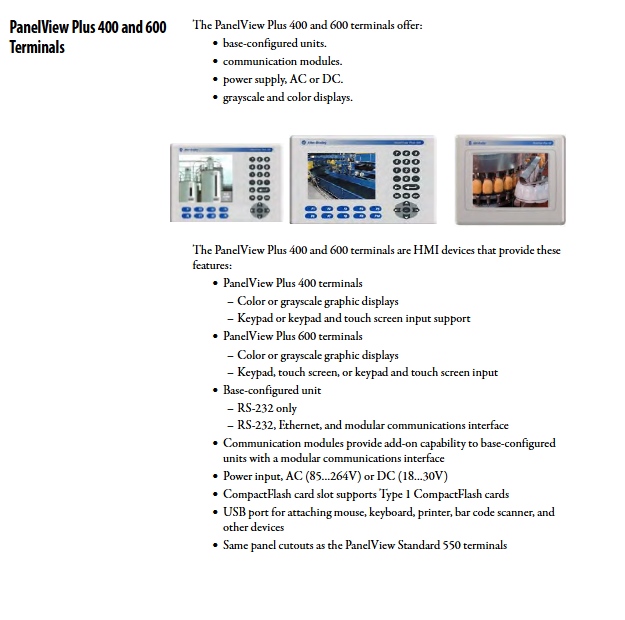

Product Family Overview and Key Selection Identification

The PanelView Plus 2711P series covers two major sub series: PanelView Plus (Standard Edition) and PanelView Plus CE. The core difference between the two lies in the content of the internal CompactFlash: the standard version comes pre installed with the FactoryTalk View ME runtime environment; The CE version includes the Windows CE. NET operating system, IE browser, ActiveX support, and the ability to run third-party C++applications.

Model coding rules (taking 2711P xxx as an example):

Input type: K=keyboard, T=touch, B=keyboard+touch

Display size: 4=3.5 inches (400 series), 6=5.5 inches, 7=6.5 inches, 10=10.4 inches, 12=12.1 inches, 15=15 inches

Display type: C=color, M=grayscale

Communication: 5=RS-232+USB; 20=Ethernet+RS-232+USB+communication module interface; 4=Ethernet+RS-232+2×USB

Power supply: A=AC, D=DC

Memory identification: 1=64MB, 2=128MB, 3=256MB, 6=128MB CE, 7=256MB CE

Key selection reminder: If you need to run custom C++programs on site or utilize remote desktop, FTP server, and other functions of Windows CE, you must select the CE logic module (such as 2711P-RP6x/RP7x). If only running the FactoryTalk View ME application, the standard version is sufficient.

Mechanical installation and environmental requirements

2.1 Hole size and gap

The installation hole sizes of different models vary significantly, so it is necessary to use the accompanying hole template. The following are common model dimensions (in millimeters):

Model height and width

400 keyboard/keyboard+touch 123 156

600 touch 123 156

600 keyboard/keyboard+touch 142 241

700 touch 154 220

700 keyboard/keyboard+touch 167 264

1000 keyboard/keyboard+touch 224 375

1000 touch 224 305

1250/1500 Touch 257/305 338/391

Requirements for heat dissipation gap:

Top: At least 51 mm (2 in.)

Bottom: 400/600 at least 102 mm (4 in.), 700-1500 at least 51 mm

Side: At least 25 mm (102 mm required for inserting memory card or wiring)

Back: 700-1500 at least 25 mm; no requirement for 400/600

2.2 Installation in Hazardous Areas (Class I, Division 2/Zone 2)

When terminal labeling is applicable to hazardous locations, it is necessary to comply with:

The ambient temperature does not exceed 55 ° C (temperature code T4).

The peripheral devices of USB ports must meet non flammable circuit parameters: Vmax ≥ VOC (5.25V), Imax ≥ Isc (1.68A), Ci+Ccable ≤ Ca (Ca is 10 μ F or 3.5 μ H, depending on the group).

It is strictly prohibited to plug or unplug communication cables or USB devices while they are live, as this may result in arcing and explosion.

2.3 Outdoor High Brightness Display Screen (1250 High Brightness Type, 2711P-RDT12H)

Direct sunlight can accelerate the aging of plastic parts and LCD attenuation. It is recommended to install anti glare protective film (2711P-RGT12) and sunshade (2711P-RVT12).

Built in temperature sensor: When the temperature inside the cabinet exceeds 55 ° C, the backlight automatically reduces intensity to protect the display screen.

Avoid installing terminals on cabinets facing south (or north in the southern hemisphere) or west to reduce solar heat load.

Mandatory requirements for power wiring and grounding

3.1 DC power supply wiring

Voltage range: 18-30V DC (400/600), 18-32V DC (700-1500)

Power consumption: 400/600 maximum 25W; 700-1500 maximum 70W (typical 39W)

Terminal torque: 0.45-0.56 N · m (400/600); 0.56 N · m (700-1500 power terminal)

Grounding: The DC power supply must be connected to the functional grounding (Earth/Ground) terminal. This terminal is connected to the internal DC circuit for noise suppression and CE compliance. Grounding wire specifications: 14-12 AWG (400/600), 14-10 AWG (700-1500), torque 1.13-1.36 N · m.

Danger warning: If two DC power sources (V1 and V2) are used for redundancy, the controller will automatically select the higher voltage power supply. The two power sources must be grounded together, otherwise it may cause damage to the equipment due to the grounding loop. The C terminal is interconnected internally and cannot be connected to ground of different potentials.
