Panasonic FP-X PLC Replacement and Troubleshooting

Panasonic FP-X Series PLC: High Performance Equipment Replacement and System Troubleshooting Guide

In industrial automation sites, equipment aging, shutdown replacement, and system troubleshooting are the core challenges that engineers face on a daily basis. Especially when there are issues with dedicated controllers such as Woodward or Honeywell security systems, how to quickly, cost effectively, and risk effectively replace and restore operations has become the top priority for maintenance teams. The Panasonic FP-X series compact PLC, with its high-speed processing, multi axis positioning, rich communication interfaces, and modular expansion capabilities, is becoming a highly competitive solution in such scenarios.

Why choose FP-X series as a replacement platform

1. High speed processing capability to meet real-time control requirements

The FP-X series is equipped with a 32-bit RISC processor, which is at the top level in compact PLCs. Its basic instruction processing time is only 0.32 μ s/step, and the scanning time for a 5000 step program does not exceed 2ms. For systems migrated from dedicated controllers such as Woodward, FP-X can easily match or even exceed the response speed of the original system, especially suitable for real-time scenarios such as high-frequency data acquisition, PID regulation, and network communication.

2. Large capacity programs and independent annotated memory

FP-X provides a program capacity of 32k steps (16k steps for C14 models), far exceeding most compact PLCs. More importantly, it is equipped with independent annotation memory that can store 100000 I/O annotations, 5000 line to line annotations, and 5000 line notes. This design greatly improves the readability and maintainability of the program, especially when replacing old systems. Engineers can fully retain the original logical instructions for subsequent debugging and handover.

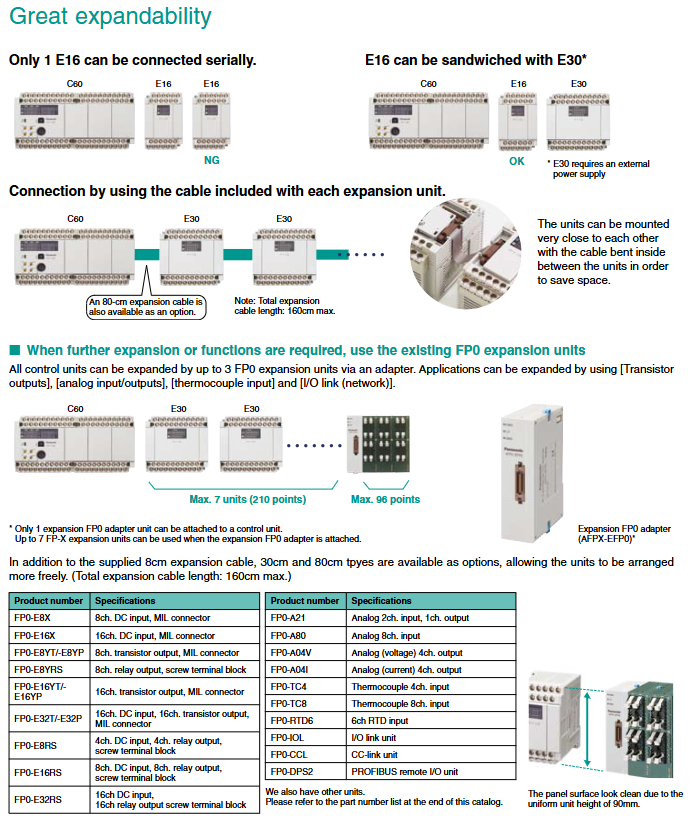

3. Rich I/O expansion capability

A single FP-X control unit can connect up to 8 expansion units, with a maximum of 300 I/O points. If combined with FP0 expansion adapters and plugin cards, the I/O points can be further increased to 382 points. This means that even if the original Woodward or Honeywell system has more I/O configurations, FP-X can easily cover them without the need to replace peripheral devices.

The key steps for replacing Woodward modules and the advantages of FP-X

1. Analyze the original system architecture

Woodward modules are commonly used for speed control and load distribution in fields such as power generation, aviation, and ships. Before replacement, it is necessary to clarify:

Type and quantity of input/output points (digital/analog)

Control logic (PID, speed regulation, protection logic)

Communication protocols (Modbus, CAN, etc.)

FP-X supports Modbus RTU master/slave MEWTOCOL、 Universal serial communication and the ability to extend interfaces such as RS232C, RS485, Ethernet, etc. through communication plugins, can directly replace the communication functions of most Woodward modules.

2. Logic porting and programming

FP-X supports the programming software FPWIN Pro that complies with the IEC 61131-3 standard, providing five programming languages: instruction list, ladder diagram, function block diagram, sequential function diagram, and structured text. Engineers can efficiently re implement the original logic. At the same time, FP-X is equipped with an 8-channel high-speed counter (up to 100kHz for single-phase) and 4-axis pulse output (up to 100kHz), which can perfectly replace Woodward's speed measurement and pulse control functions.

3. On site debugging and switching

FP-X supports online monitoring, forced I/O, program rewriting during RUN, and other functions. During the replacement process, signals can be switched one by one to ensure a smooth transition of the system. Its built-in flash ROM can store programs and critical data without a battery, avoiding the risk of program loss due to battery failure.

Honeywell Security System Common Malfunctions and FP-X Response Strategies

1. Communication failure

Honeywell security systems often communicate with PLCs through Modbus or proprietary protocols. The FP-X series not only supports Modbus RTU master/slave stations, but also MEWTOCOL protocol, allowing communication with Panasonic displays, vision systems, temperature controllers, and other devices without programming. In addition, remote data collection and program updates can be achieved through the Ethernet communication plugin (AFPX-COM5), greatly simplifying the troubleshooting of distributed systems.

2. Analog input/output abnormality

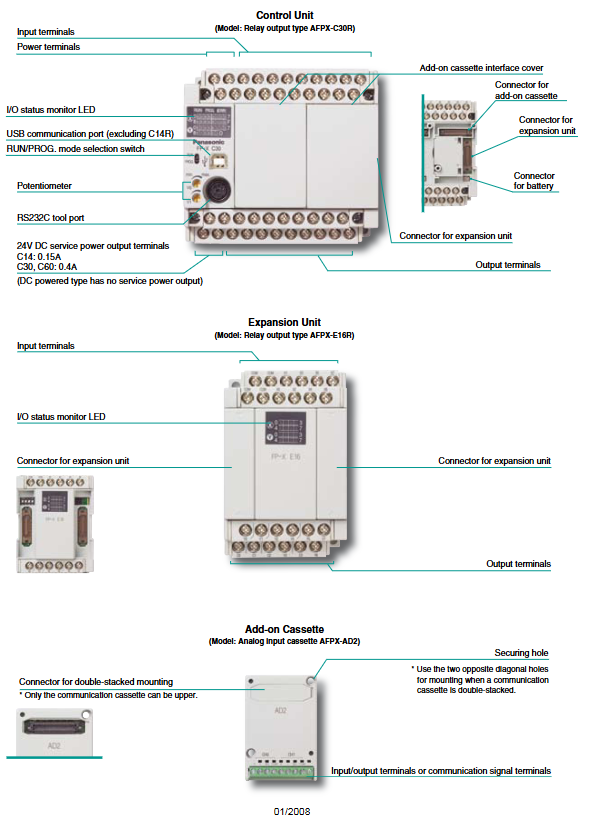

FP-X provides various analog plugins:

AFPX-AD2: 2-channel analog input (0-10V/0-20mA, 12 bits)

AFPX-DA2: 2-channel analog output

AFPX-A21: 2-channel input+1-channel output, with isolation

AFPX-TC2: 2-channel thermocouple input (K/J type, resolution 0.2 ° C)

These plugins can directly replace damaged analog modules in Honeywell systems, with high accuracy and fast response (2ms/2ch), suitable for the acquisition and control of process parameters such as temperature, pressure, and flow rate.

3. Failure of safety logic

FP-X has built-in 8-character password protection (uppercase and lowercase letters+numbers, with 218 trillion combinations), and supports upload prohibition function, effectively preventing programs from being illegally read or tampered with. In addition, its self diagnostic function (watchdog timer, syntax check) can promptly alert in case of logical errors, avoiding system malfunctions.

The unique advantages of FP-X in complex control systems

1. Multi axis positioning control

FP-X transistor output type C14 has built-in 3-axis pulse output, while C30/C60 has built-in 4-axis pulse output (100kHz × 2-axis+20kHz × 2-axis), supporting functions such as trapezoidal control, table control, origin return, and two axis linear interpolation. This is particularly practical in replacing Woodward's multi axis servo control system, as it can achieve high-precision motion control of XY worktable, loading and unloading manipulator, etc. without the need for additional positioning modules.

2. High precision PID control

FP-X adopts floating-point operation and high-speed PID algorithm, with a single loop operation time of only 32 μ s and a 16 loop scan time increase of only 0.5ms. It supports multi loop self-tuning, online modification of PID parameters, and multi-step control of target values, and can replace multiple independent temperature controllers in systems such as Honeywell, achieving centralized temperature control and data management.

3. Data Security and Remote Maintenance

The FP-X main memory (AFPX-MRTC) is a 512kB flash memory that can store 32k steps of programs, comments, FPWIN Pro source files, and password information. Even in upload disabled state, programs can still be downloaded from the main storage for remote updates. By combining Ethernet plugins, engineers can remotely monitor and modify programs, significantly reducing on-site maintenance costs.

Typical application scenarios and configuration recommendations

Scenario 1: Replace Woodward 505 digital controller

Original functions: turbine speed control, valve regulation, Modbus communication

FP-X alternative solution: C60 transistor output type+AFPX-COM4 (RS485+RS232C)+AFPX-A21 (analog I/O)

Advantages: 4-axis pulse output for servo valve drive, built-in PID for speed closed-loop control, seamless integration between Modbus RTU and DCS system

Scenario 2: Replacing Honeywell HC900 Hybrid Controller

Original functions: boiler temperature control, data recording, alarm management

FP-X alternative solution: C30 relay output type+AFPX-TC2 (thermocouple input)+AFPX-MRTC (real-time clock+program backup)

Advantages: Multi point temperature acquisition and PID control, real-time clock for data logging, flash backup without battery

Scenario 3: PLC Link Networking of Multiple Devices

Requirement: Data sharing for less than 16 devices

FP-X configuration: Each FP-X is equipped with AFPX-COM6 (dual RS485 isolation), using MEWNET-WO protocol, with a transmission distance of 1200m, sharing 128 word data and 64 word contacts

Alternative value: Distributed control and data exchange can be achieved without the need for expensive central control systems

Troubleshooting and maintenance skills

1. The program cannot be uploaded

Check: whether the upload prohibition function is enabled

Solution: If you forget your password, you need to forcefully clear the program and download it again (note backup)

2. Abnormal pulse output

Check: Is it a relay output type (AFPX-PLS pulse I/O plugin needs to be installed)

Solution: The transistor output type directly supports high-speed pulses without the need for plugins

3. Communication failure

Check if the communication plugin is installed in the correct card slot (A area up/down)

Solution: FP-X tool port can be used as a universal RS232C, with up to 3 channels communicating simultaneously

4. Real time clock does not work

Check if AFPX-MRTC and backup battery (AFPX-BATT) are installed

Solution: C30/C60 can accommodate 2 batteries with a lifespan of over 10 years
