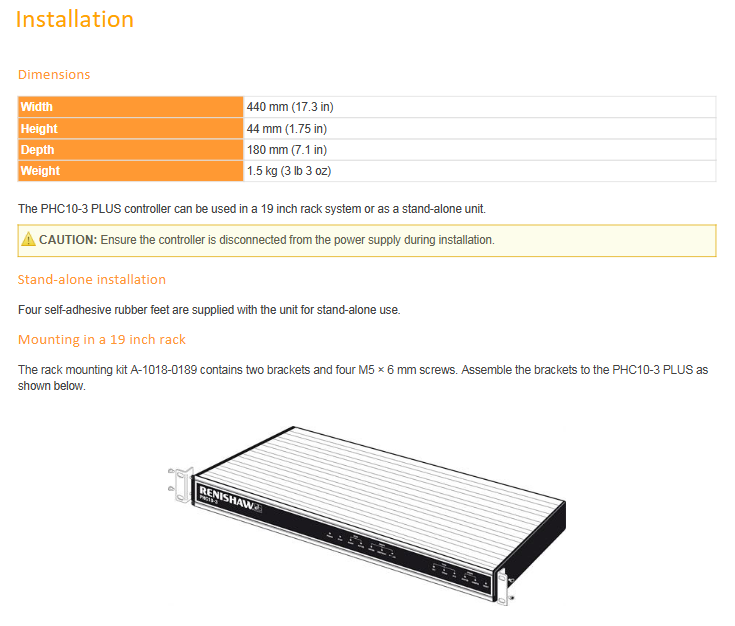

Installation and troubleshooting of Renishaw PHC10-3 PLUS controller

In coordinate measuring machines (CMM) and precision measurement systems, the Renishaw PH10 PLUS series motor gauge has become the industry standard for its flexible probe orientation capability. The PHC10-3 PLUS controller that drives the test bench is the "nerve center" of the entire system - it is responsible for parsing instructions from the upper computer, managing the movement of the test bench, coordinating probe signals, and communicating with external devices such as automatic replacement racks. For equipment integrators and maintenance engineers, correctly installing, configuring, and diagnosing PHC10-3 PLUS is a prerequisite for ensuring efficient operation of measurement systems.
