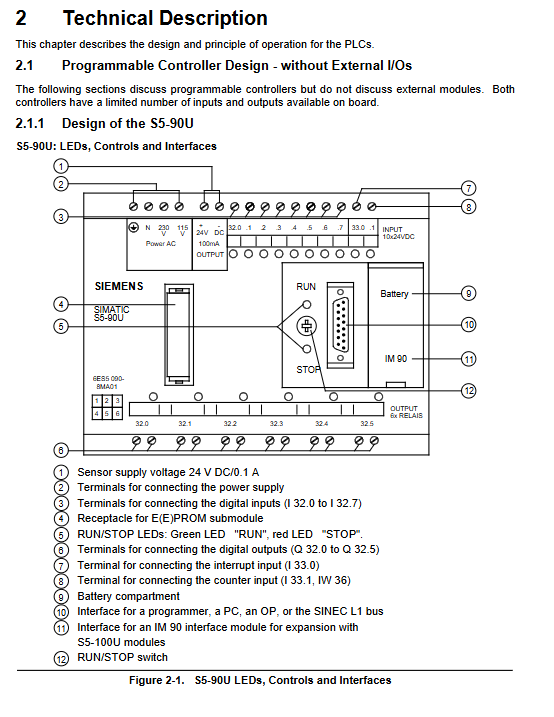

Siemens SIMATIC S5-90U/S5-95U Compact PLC

Diagnosis: Bit 0, 8, and 12 of the status word respectively indicate whether the clock, running hour meter, and prompt time settings are incorrect. Bit 13 is a very useful flag bit, which will be set to 1 when the set "prompt time" is reached. You can periodically scan this bit in the program to achieve precise timed task triggering.

Migration and Upgrade Strategies for Old Systems

Completely replacing an S5 system is costly and risky. A more economical strategy is to perform "core porting" or "system integration".

Retain I/O and upgrade CPU: Siemens' new generation S7-1200 or S7-1500 series does not provide direct compatibility with the S5-100U module. However, you can connect the existing sensor and actuator signals to the new system through a third-party gateway (such as Profinet to S5-100U bus coupler) or by using the ET 200SP distributed I/O system. This method can maximize the preservation of the original on-site wiring.

Program migration strategy:

Documentation: Firstly, use STEP 5 software to upload the complete program in the PLC and print out a detailed statement table (STL). This is the only reliable information for subsequent work.

Refactoring rather than translation: It is not recommended to mechanically "translate" STL code line by line into LAD/FBD language in TIA Portal. S5-95U supports structured programming (PB, FB, DB), and you can first understand the functional architecture of the original program (such as main loop, interrupt handling, PID tuning, etc.).

Using standard libraries: The original code may have called integrated function blocks such as FB240 (BCD to integer conversion) and FB242 (multiplication). In S7, these features have more efficient standard library functions (such as CONV, MUL). During the porting process, these new standard functions should be used instead of simulating the behavior of old blocks.

Communication integration: S5-95U can serve as a slave station for SINEC L1 through its TTY interface (programmer interface). In modern systems, you can integrate S5-95U as a substation into a new SCADA system through a protocol converter (such as converting L1 to Modbus RTU or TCP/IP). In this way, data collection and monitoring can be achieved without modifying any S5 program.

Tips for reducing scanning load:

The scanning cycle of S5-95U is greatly affected by internal timer updates. By default, the system will handle all 128 timers (T0-T127). If your program only uses a portion of it (such as T0-T9), it is strongly recommended to modify NT 128 to NT 10 in the system parameter (SDP:) of DB1. This can significantly reduce the timer refresh time from 128 * 33 µ s=4.2ms to 10 * 33 µ s=0.33ms. For systems with tight scanning cycles, this is an immediate optimization method.
