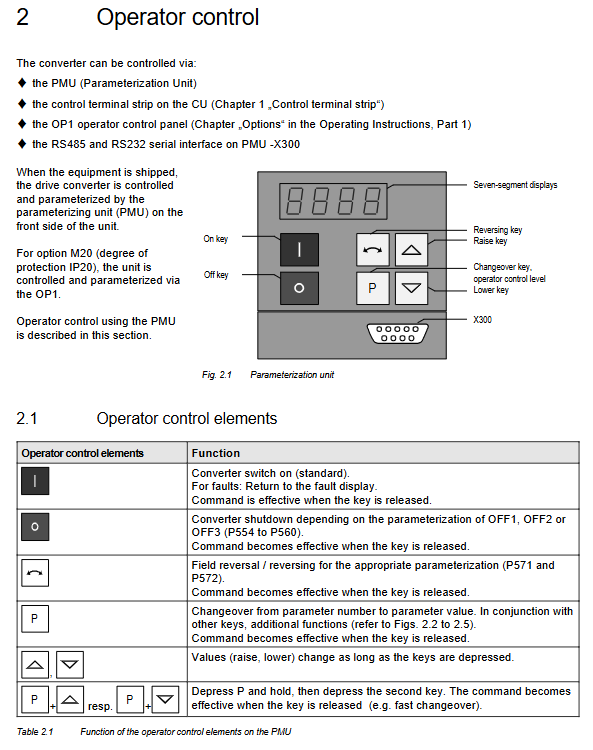

Troubleshooting of Siemens MASTER DRIVES VC

Speed controller optimization (P052=10): Automatically measure mechanical inertia, set P225 (Kp), P229 (Tn), and P243 (feedforward). The optimization quality depends on P346 (expected dynamic factor, 10-200%). If F006 (DC bus overvoltage) occurs during the optimization period, the regenerative power limit P233 can be reduced (set to -3%~-0.1%).

3.5 Speed measurement machine test (P052=12)

Used to check the wiring and parameters of pulse encoders or analog speedometers. If the encoder pulse count P209 or the analog speedometer calibration P210 is incorrect, fault F051 or F098 will be displayed.

Common fault codes and countermeasures

4.1 Overvoltage fault F006

Reason: The DC bus voltage exceeds the trip threshold (e.g. 380V system>819V). Commonly seen in regenerative loads or excessive deceleration.

Countermeasure:

Increase deceleration time P464

Activate Vdmax controller (P377=1, P378=50%)

If using a regeneration feedback unit, check its configuration

For parallel inverters, r949=1/2 indicates overvoltage in the master/slave rack

4.2 Under voltage fault F008

Reason: The DC bus voltage is below 76% of the rated value (61% when the kinetic energy buffer is activated). It may be caused by power grid transients or rectifier failures.

Countermeasure:

Check if the input voltage matches P071

Check the incoming contactor and fuse

If using kinetic energy buffer (P379=1), ensure that the motor inertia is sufficient and the speed is not lower than 10% of the rated frequency

4.3 Overcurrent fault F011

Reason: Output short circuit, ground fault, or motor overload.

Countermeasure:

Check the motor cable and motor insulation

Check if the motor is stuck

Confirm that the frequency converter matches the motor capacity

Check if the dynamic requirements are too high (such as acceleration time being too short)

4.4 Motor stalling fault F015

Reason: Motor stalling or excessive load mutation, with a duration exceeding P520.

Countermeasure:

Reduce the load and release the brake

Increase current limit P173

Increase P520 (stalling time)

For frequency control (P163=3): increase low-frequency current P202/P203, or accelerate EMF model switching frequency P284

4.5 External faults F035/F036

Reason: Low level (fault signal) detected through binary input configured with parameters P575/P586.

Countermeasure: Check the peripheral devices and wiring, or modify the parameter values (such as setting 1 to indicate normally closed contacts).

4.6 Encoder fault F051

Reason: Missing signal from the speedometer, incorrect polarity, and incorrect pulse count setting.

Countermeasure:

Check the encoder wiring and shielding

Verify that P209 (pulse count) matches the encoder nameplate

For the analog speedometer, calibrate P210 (speed corresponding to 10V)

Key software function configuration

5.1 Automatic restart (WEA, P366)

Used for automatic recovery after power grid sudden shutdown. Parameter options:

P366=1: Only clear the fault, do not automatically restart

P366=2: Automatic restart after P367 delay (the ON command still exists)

P366=3: Always restart with "restart tracking" function

Security Warning: Automatic restart may cause unexpected startup and must be enabled only after the application evaluates security risks.

5.2 Kinetic Energy Buffer (KIP, P379=1)

Utilize load inertia to maintain DC bus voltage during short-term power outages. When the DC voltage is lower than the set value of P380, the controller reduces the frequency to maintain the loss, and then increases the ramp after the voltage is restored. Suitable for high inertia loads such as fans and flywheels.

5.3 Flexible response (FLR, P379=2 or 3)

Allow the frequency converter to output partial power even when the voltage drops to 50% of the rated value. requirements

External 24V power supply (X9 terminal)

Incoming reactor (4%)

The main contactor shall not disconnect when the voltage drops

5.4 Vdmax controller (P377=1)

Inhibit regeneration overvoltage. When the DC voltage rises, the controller increases the output frequency to put the motor into a generating state, thereby limiting the voltage. For systems without brake choppers, this function is crucial. If alarm A041 appears, it indicates that the grid voltage is too high or P071 is set too low.

5.5 DC braking (P372=1)

Triggered by the OFF3 command, apply a direct current (P373) to brake below the set frequency (P375) for a braking time of P374. Only applicable to asynchronous motors, pay attention to motor heating.

5.6 Flying Restart (P583)

Used for inputting frequency converters into rotating motors to avoid overcurrent. When there is no encoder, the scanning method is used (search current P369, search speed P370), and when there is an encoder, it is directly synchronized. If P366=3, restart tracking will be performed every time power is turned on.

Standardization of analog input/output

6.1 Analog Input (AE) Configuration

P650: Define input types (0: ± 10V, 1: 0-10V/0-20mA, 2: 4-20mA). When set to 2,<2mA triggers disconnection fault F037.

P651: Filtering time (4-1000ms)

P652: Zero offset (± 20V range)

Application example: The main input comes from AI1 (0-10V corresponds to 0-50Hz).

Set P443.1=1003 (AE1), P650.1=1, P444.1=70% (gain), P445.1=30% (offset), which can map the range of 15-50Hz.
