How to install ABB VSC vacuum contactor?

Complete Technical Guide for ABB VSC Vacuum Contactors: Principles, Operating Modes, and On site Maintenance of Permanent Magnet Mechanisms

In industrial power distribution systems, frequent operation of medium voltage circuits (such as motor control, capacitor bank switching, and transformer no-load closing) places extremely high demands on the electrical life and mechanical reliability of switchgear. ABB's VSC series vacuum contactor (7.2/12 kV, 400A) is an integrated solution designed for such applications. It adopts a MAC bistable permanent magnet operating mechanism, combined with a wide voltage power module, to achieve low power consumption, high lifespan, and flexible electrical control. This article systematically reviews the core structure, technical parameters, operating modes (SCO/DCO), installation interlocking, maintenance and troubleshooting methods of VSC contactors from the perspective of engineers on site, helping users fully utilize equipment performance and extend service life.

Product positioning and core advantages

VSC vacuum contactor is suitable for indoor distribution systems with AC 50/60Hz, rated voltage of 7.2kV or 12kV, and rated current of 400A. Its typical applications include:

Frequent starting of electric motor (AC-3, AC-4 working conditions)

Transformer no-load closing and opening

Switching of capacitor bank (requires coordination with lightning arrester)

Circuit that needs to be combined with fuses to achieve short-circuit protection

Core advantages:

Extremely long operating life: The mechanical life can reach 1 million times (some models can reach 200000 times), the electrical life (AC-3) can reach 100000 times, and the rated current of AC-1 can reach 1 million times.

Low power operation: maintains a power of less than 5W, consuming only 15W (tens of milliseconds) in the moment of action.

Flexible configuration: Provides various structures including fixed (VSC/F), withdrawable (VSC/P), and with fuse supports, suitable for UniGear ZS1 switchgear.

Double stable permanent magnet mechanism: The opening and closing positions are maintained by permanent magnetic force, without the need for continuous power supply, and have strong resistance to voltage fluctuations.

Principle of MAC Permanent Magnet Operating Mechanism

Traditional contactors often use electromagnets with mechanical locks or spring resets, while the MAC type bistable permanent magnet mechanism installed in VSC is optimized based on ABB's mature technology for medium voltage circuit breakers, with higher consistency of action.

2.1 Bi stable state maintenance

The organization contains two sets of permanent magnets, and the moving iron core (armature) is stably held by the permanent magnetic force in both the closing and opening positions. When closing, the permanent magnetic field between the moving iron core and the stationary iron core firmly fixes the iron core in the closed position; When the switch is opened, the moving iron core is held in the disconnected position by the permanent magnetic force in the other direction. Therefore, the contactor does not require coil excitation in any steady state and will not malfunction due to power fluctuations.

2.2 Energy storage capacitor drive

The opening and closing coils of the mechanism are not directly powered by the auxiliary power supply, but are excited by the discharge of pre stored capacitor banks. The auxiliary power supply (24~250V AC/DC wide range) is only used to charge capacitors. After each operation, the power module restores the energy of the capacitor to its rated value within a few tens of milliseconds. This design brings three major benefits:

Constant action speed: does not change with fluctuations in power supply voltage, with a closing time of 60-90ms and an opening time of 35-60ms.

Instantaneous power low: Maintaining power consumption<5W, peak charging at 15W, minimal burden on auxiliary circuits.

High reliability: Even if the auxiliary power supply is briefly interrupted, the capacitor can still maintain sufficient energy to complete one operation.

2.3 Electronic Control Module

The power module (wide voltage type, divided into 24~60V and 110~250V) integrates:

Capacitor charging management

Coil conduction timing control

Status monitoring (capacitor voltage, coil continuity, module temperature)

Binary input/output interface (closing command, opening command, undervoltage trip, ready signal, etc.)

After the module is powered on, it needs about 15 seconds to self check the startup time before it can be closed and opened normally. This feature should be noted after the first debugging or power outage restart.

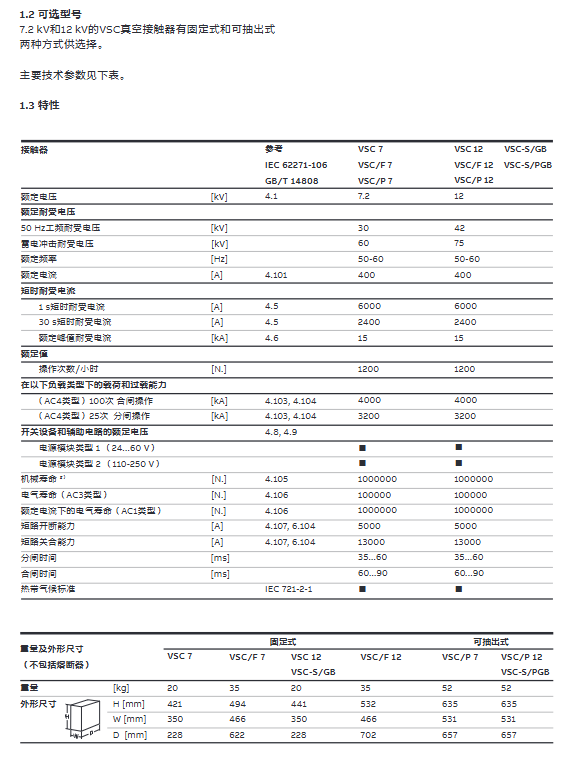

Main technical parameters

3.1 Rated value

Parameter VSC 7 VSC 12

Rated voltage (kV) 7.2 12

Power frequency withstand voltage (kV) 30 42

Lightning impulse withstand voltage (kV) 60 75

Rated current (A) 400 400

1-second short-time withstand current (A) 6000 6000

Rated peak withstand current (kA) 15 15

Rated operating frequency/hour 1200 1200

Mechanical lifespan (times) 1 million 1 million

Electrical lifespan AC-3 (times) 100000 100000

Electrical lifespan AC-1 (times) 1 million 1 million

Short circuit breaking capacity (A) 4500 (with fuse) 5000
