Complete Technical Guide for ABB VSC Vacuum Contactors: Principles, Operating Modes, and On site Maintenance of Permanent Magnet Mechanisms

In industrial power distribution systems, frequent operation of medium voltage circuits (such as motor control, capacitor bank switching, and transformer no-load closing) places extremely high demands on the electrical life and mechanical reliability of switchgear. ABB's VSC series vacuum contactor (7.2/12 kV, 400A) is an integrated solution designed for such applications. It adopts a MAC bistable permanent magnet operating mechanism, combined with a wide voltage power module, to achieve low power consumption, high lifespan, and flexible electrical control. This article systematically reviews the core structure, technical parameters, operating modes (SCO/DCO), installation interlocking, maintenance and troubleshooting methods of VSC contactors from the perspective of engineers on site, helping users fully utilize equipment performance and extend service life.

Product positioning and core advantages

VSC vacuum contactor is suitable for indoor distribution systems with AC 50/60Hz, rated voltage of 7.2kV or 12kV, and rated current of 400A. Its typical applications include:

Frequent starting of electric motor (AC-3, AC-4 working conditions)

Transformer no-load closing and opening

Switching of capacitor bank (requires coordination with lightning arrester)

Circuit that needs to be combined with fuses to achieve short-circuit protection

Core advantages:

Extremely long operating life: The mechanical life can reach 1 million times (some models can reach 200000 times), the electrical life (AC-3) can reach 100000 times, and the rated current of AC-1 can reach 1 million times.

Low power operation: maintains a power of less than 5W, consuming only 15W (tens of milliseconds) in the moment of action.

Flexible configuration: Provides various structures including fixed (VSC/F), withdrawable (VSC/P), and with fuse supports, suitable for UniGear ZS1 switchgear.

Double stable permanent magnet mechanism: The opening and closing positions are maintained by permanent magnetic force, without the need for continuous power supply, and have strong resistance to voltage fluctuations.

Principle of MAC Permanent Magnet Operating Mechanism

Traditional contactors often use electromagnets with mechanical locks or spring resets, while the MAC type bistable permanent magnet mechanism installed in VSC is optimized based on ABB's mature technology for medium voltage circuit breakers, with higher consistency of action.

2.1 Bi stable state maintenance

The organization contains two sets of permanent magnets, and the moving iron core (armature) is stably held by the permanent magnetic force in both the closing and opening positions. When closing, the permanent magnetic field between the moving iron core and the stationary iron core firmly fixes the iron core in the closed position; When the switch is opened, the moving iron core is held in the disconnected position by the permanent magnetic force in the other direction. Therefore, the contactor does not require coil excitation in any steady state and will not malfunction due to power fluctuations.

2.2 Energy storage capacitor drive

The opening and closing coils of the mechanism are not directly powered by the auxiliary power supply, but are excited by the discharge of pre stored capacitor banks. The auxiliary power supply (24~250V AC/DC wide range) is only used to charge capacitors. After each operation, the power module restores the energy of the capacitor to its rated value within a few tens of milliseconds. This design brings three major benefits:

Constant action speed: does not change with fluctuations in power supply voltage, with a closing time of 60-90ms and an opening time of 35-60ms.

Instantaneous power low: Maintaining power consumption<5W, peak charging at 15W, minimal burden on auxiliary circuits.

High reliability: Even if the auxiliary power supply is briefly interrupted, the capacitor can still maintain sufficient energy to complete one operation.

2.3 Electronic Control Module

The power module (wide voltage type, divided into 24~60V and 110~250V) integrates:

Capacitor charging management

Coil conduction timing control

Status monitoring (capacitor voltage, coil continuity, module temperature)

Binary input/output interface (closing command, opening command, undervoltage trip, ready signal, etc.)

After the module is powered on, it needs about 15 seconds to self check the startup time before it can be closed and opened normally. This feature should be noted after the first debugging or power outage restart.

Main technical parameters

3.1 Rated value

Parameter VSC 7 VSC 12

Rated voltage (kV) 7.2 12

Power frequency withstand voltage (kV) 30 42

Lightning impulse withstand voltage (kV) 60 75

Rated current (A) 400 400

1-second short-time withstand current (A) 6000 6000

Rated peak withstand current (kA) 15 15

Rated operating frequency/hour 1200 1200

Mechanical lifespan (times) 1 million 1 million

Electrical lifespan AC-3 (times) 100000 100000

Electrical lifespan AC-1 (times) 1 million 1 million

Short circuit breaking capacity (A) 4500 (with fuse) 5000

Short circuit closing capacity (A) 13000 13000

Opening time (ms) 35~60 35~60

Closing time (ms) 60~90 60~90

3.2 Load capacity limit (12kV model)

Electric motor: maximum 3000 kW

Transformer: Maximum 4000 kVA

Capacitor: Maximum 4800 kVAR (requires installation of lightning arrester)

Back to back capacitor bank: rated current 250A, maximum closing inrush current 8kA, frequency ≤ 2.5kHz

3.3 Auxiliary Contact Parameters

The contactor provides two sets of auxiliary switches (5 normally open+5 normally closed), with a specified heating current Ith=10A, suitable for 24-250V AC/DC. In addition, the power module outputs two binary signals:

DO1: Control and excitation circuit ready (including power module ready, capacitor voltage normal, coil continuity)

DO2: System status (capacitor operating status, module temperature)

Signal contact parameters: maximum power 1200VA (resistive), maximum voltage 277V AC/30V DC, breaking current 3A.

Operation mode: SCO and DCO selection

VSC contactors support two control modes, which users can choose according to their automation system requirements.

4.1 SCO (Single Command Operation)

Principle: When the auxiliary power supply continues to supply power, the contactor closes; When the power is cut off (active disconnection command or power failure), the contactor opens.

Features: No need for opening pulses, the power supply itself closes to maintain the signal. Automatically disconnect when under voltage.

Applicable scenarios: Simple circuits that require voltage loss tripping, or controlled by PLC output normally closed contacts.

4.2 DCO (Dual Command Operation)

Principle: When receiving a closing pulse with a minimum pulse width of 30ms, close the circuit; when receiving an opening pulse, close the circuit. Both are independent.

Features: It has anti bounce function - when both closing and opening commands are present, opening takes priority, and the contactor remains open until the opening signal disappears. Optional undervoltage trip (UV) function with adjustable delay (0-5s).

Applicable scenarios: Complex interlocking systems that require separate control of closing and opening, or situations where undervoltage delay tripping is required.

4.3 Under voltage trip delay setting (DCO type)

The undervoltage trip delay can be set through the dip switch S1 (S1-3, S1-4, S1-5) on the power module:

Delay (s) S1-3 S1-4 S1-5

Instantaneous 0 0 0

0.3 0 0 1

1 0 1 0

2 0 1 1

3 1 0 0

4 1 0 1

5 1 1 1

Installation and wiring points

5.1 Environmental conditions

Environmental temperature: -15 ℃~+40 ℃ (24-hour average ≤ 35 ℃)

Relative humidity: daily average ≤ 95%, monthly average ≤ 90%

Altitude: ≤ 1000m (for higher altitudes, reduced capacity is required)

Avoid condensation: Heaters need to be installed in high humidity areas

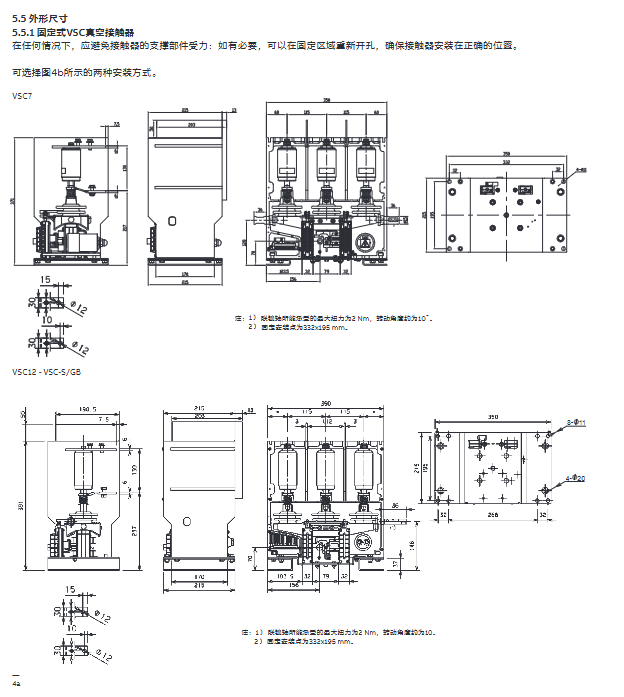

5.2 Installation of Fixed Contactors

It can be installed vertically (with the moving contact moving downwards) or horizontally against the wall (with the terminal facing downwards).

Main circuit connection: The surface of copper or aluminum conductors must be silver plated, and the contact surface must be flat and clean. Tightening torque: M6=10Nm, M8=25Nm, M10=50Nm, M12=86Nm.

Grounding: achieved through grounding bolts, the cross-section of the grounding wire is selected according to standards, and the joint is coated with Vaseline for rust prevention.

Auxiliary circuit: Cable cross-section ≥ 1.5mm ², rated voltage 450/750V, threaded through metal hoses or cable trays.

5.3 Pull out contactor (VSC/P) interlock

The pull-out version is installed inside the UniGear ZS1 switchgear and has comprehensive mechanical and electrical interlocking:

Anti closing interlock: When the handcart is not in the working/testing position, the electrical circuit is prohibited from closing.

Anti misoperation: When the contactor is in the closed state, the mechanical interlock prevents the handcart from shaking in/out.

Fuse monitoring: When there is a phase loss or the fuse is blown, the electrical interlock prohibits closing.

Grounding switch interlock: When the grounding switch is closed, the mechanical stop pin prevents the handcart from shaking into the working position; On the contrary, when the handcart is in the middle position, the grounding switch cannot be closed.

Valve interlock: After the handcart is pulled out, the valve automatically closes to prevent accidental contact with the static contact.

Aviation plug interlock: The handcart cannot remove the aviation plug when in the working position or during the rocking in and out process.

Locking electromagnet (optional): When the auxiliary circuit is not powered on, the electromagnet loses power and locks the handcart to prevent misoperation when there is no control power supply.

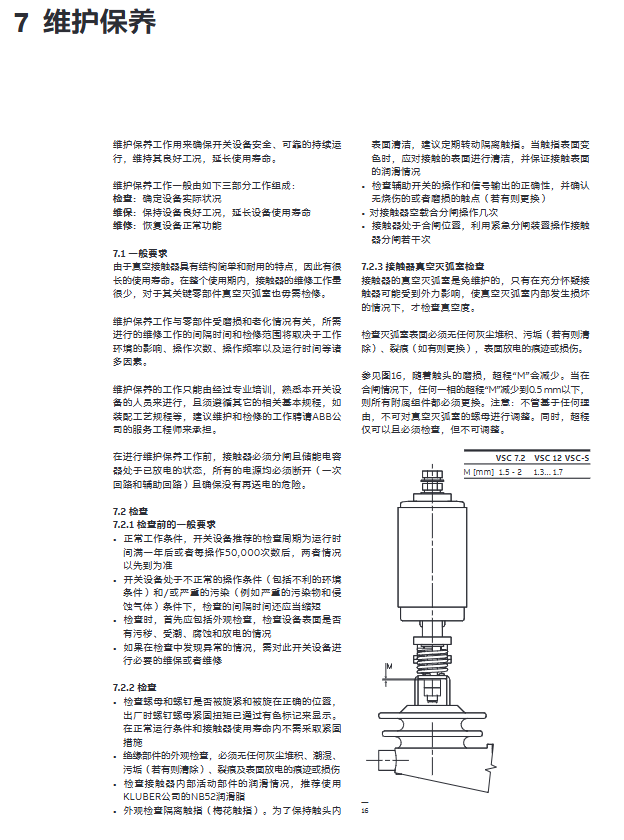

Maintenance and Inspection

The VSC vacuum contactor has a long maintenance free cycle as a whole, but regular inspections can ensure its reliable operation.

6.1 Inspection cycle

Under normal conditions: run for 1 year or operate 50000 times (whichever comes first).

Adverse environments (dust, corrosive gases, high humidity): shortened to six months or less.

6.2 Daily Inspection Items

Appearance and Cleaning: Remove dust and oil stains from the surface of insulation components. Use dry soft cloth or weakly alkaline cleaning agent, and prohibit carbon tetrachloride and trichloroethylene.

Fasteners: Check if the screws have misplaced color codes (there are color codes at the factory). If there is no looseness, there is no need to tighten them again.

Lubrication of moving parts: KLUBER NB52 grease is recommended.

Auxiliary switch: Manually operate several times to confirm that the contacts are open and closed normally without any burn marks.

Emergency disconnection test: Use an Allen wrench to turn clockwise by about 30 degrees (torque 5Nm), and it should be able to reliably disconnect.

6.3 Vacuum arc extinguishing chamber inspection

The vacuum arc extinguishing chamber is a sealed component that does not require maintenance during normal use. Vacuum degree testing is only required in the following situations:

Suspected of being impacted by external forces

Put into operation after storage for over 20 years

Abnormal appearance after disconnecting the short-circuit current

Overtravel measurement (to determine contact wear): Measure the overtravel "M" (the distance further compressed by the moving contact) of each phase when the contactor is closed. If any phase overtravel is less than 0.5mm, the arc extinguishing chamber component must be replaced (the nut cannot be adjusted).

Vacuum degree detection: Use VIDAR vacuum tester to test in the open state. Test voltage: 7.2kV contactor uses 25kV DC, 12kV contactor uses 40kV DC. Connect the high-voltage end of the tester to the ungrounded end of the arc extinguishing chamber, and ground the frame. The normal vacuum degree should be better than 1.33 × 10 ⁻ ³ Pa.

6.4 Fuse Replacement (with Fuse Support Model)

VSC can be combined with current limiting fuses to provide short-circuit protection. The fuse holder is compatible with DIN (length 442mm) or BS (553mm) standards and comes with an adapter for short fuse links (192mm, 292mm, 235mm, 305mm, 454mm).

Replacement steps:

Shake the contactor out to the test position or extract it from the cabinet to confirm the disconnection.

Remove the panel screws and open the panel.

For the 12kV model, remove the internal protective panel.

Use a specialized tool (card spring opener) to release the fuse card spring.

Remove the fuse and check if the fuse indicator pin pops out.

When installing a new fuse, ensure that the firing pin is facing in the opposite direction of the contactor's plum blossom contact finger (towards the release mechanism).

If using an adapter, select the correct model by length and secure it with a clamp.

Reset the panel, push the contactor back to the working position, and perform a functional test.

Attention: When any phase fuse is missing or the fuse has already blown, the electrical interlock will prevent the contactor from closing.

Troubleshooting Guide

7.1 Contactor unable to close

Possible cause inspection and resolution

The power module is not ready and waits for 15 seconds to start after powering on; Check if the auxiliary power supply is connected to KM1-1/KM1-2 and if the voltage range is compliant (24-250V AC/DC).

Check if the DO1 ready signal is output when the capacitor voltage is insufficient; Measure the terminal voltage of the capacitor (normally close to the rated value). The module may need to be replaced.

Check the fuse status indicator for missing or blown fuses; Replace the fuse.

Confirm the position interlock of the handcart in the working or testing position (pull-out type); Check if the BT1/BT2 position contacts are normal.

Check if the voltage of the UV input (KM1-1/12) is normal when the undervoltage trip is not reset (DCO); Is the delay setting correct.

The locking electromagnet is not powered, and the voltage of the electromagnet coil is measured; Check if the auxiliary circuit aviation plug is securely plugged in.

The closing command has not been delivered to measure whether there is a pulse (DCO) of ≥ 30ms or a continuous high level (SCO) between terminals KM1-7/8.

7.2 Contactor unable to open

Possible cause inspection and resolution

Missing opening command check KM1-9/10 (DCO) pulse; For SCO, try cutting off the auxiliary power supply.

The permanent magnet mechanism is stuck and needs to be manually opened using an emergency opening device. If it still cannot be opened, it needs to be returned to the factory for maintenance.

The insufficient energy of the capacitor also relies on the discharge of the capacitor to open the circuit. Check the power module.

7.3 Immediately trip the contactor after closing

Check if there is a blown fuse (phase loss protection action).

Check if there are both closing and opening commands (anti bounce function is in effect).

Check if the undervoltage trip circuit has malfunctioned (due to voltage fluctuations or short set delay).

7.4 Auxiliary signal abnormality

DO1 not outputting: The power module self-test failed, or the coil was disconnected (which can be determined by measuring the coil resistance, and should have a certain resistance value normally).

DO2 alarm: Module temperature too high (improve ventilation) or capacitor aging (replace module).

7.5 Manual emergency disconnection is invalid

Confirm to use an M8 hex wrench and turn it clockwise by about 30 ° with a torque of 5Nm. Excessive rotation may damage the mechanism.

For pull-out type, ensure that the operating hole cover on the compartment door has been opened.

Spare parts and lifecycle management

8.1 Recommended spare parts list

Wide voltage power module (divided into 24~60V and 110~250V)

Auxiliary switch (5NO+5NC)

Operation counter

Plum blossom touch finger (suitable for pull-out style)

Hand car locking electromagnet

Fuse adapter kit

8.2 Long term storage

Keep the original packaging, with built-in desiccant, and replace every 6 months.

Environment: -15 ℃~40 ℃, dry and dust-free, without corrosive gases.

It is recommended to randomly inspect the vacuum arc extinguishing chamber for storage exceeding 20 years.

8.3 Scrap and Recycling

The main materials for VSC contactors are metal (iron, copper, aluminum, silver) and plastic/epoxy resin. Recycling should be classified according to local environmental regulations. Metal parts can be melted and reused, while plastics and epoxy resins can be crushed and used as industrial fillers or incinerated to recover heat energy.
