Product positioning and core identification

6ES7511-1AK02-0AB0 is a CPU 1511-1 PN central processing unit under the Siemens SIMATIC S7-1500 series, designed specifically for small and medium-sized industrial automation scenarios. Its core function is to integrate logic control, motion control, process control, and industrial communication capabilities, adapt to discrete manufacturing (such as machine tools and assembly lines), process industry (such as chemical and water treatment), and hybrid control scenarios, support distributed I/O expansion, and balance performance and flexibility.

Core hardware specifications

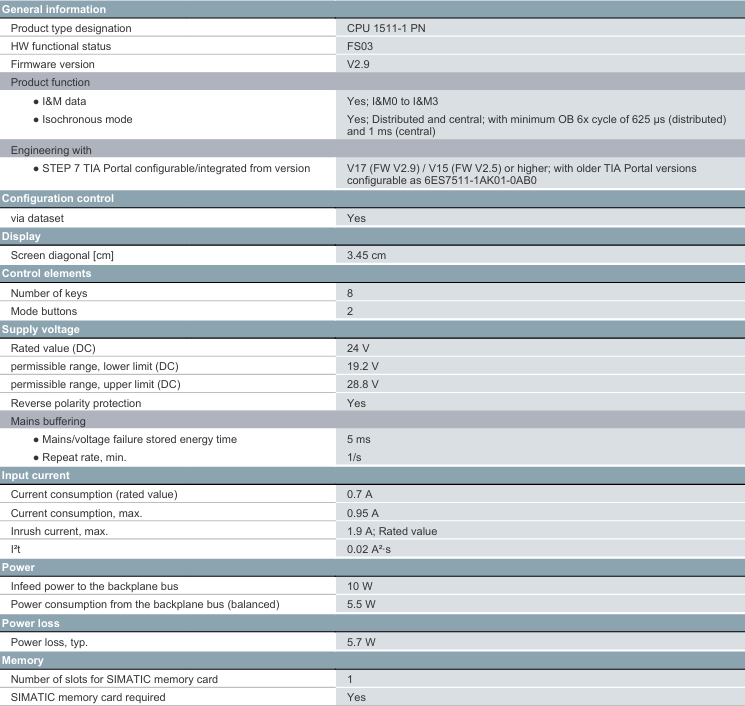

1. Processor and Storage

Category specific parameters

Typical processing speeds for bit operations are 60 ns, word operations are 72 ns, fixed-point arithmetic is 96 ns, and floating-point arithmetic is 384 ns, meeting the real-time control requirements of small and medium-sized systems

Working memory - Program memory: 150 KB (for storing user programs and system configurations)

-Data memory: 1 MB (cache process data, variables, and status information)

Loading memory supports 1 SIMATIC memory card (required, separately purchased), with a maximum capacity of 32 GB, used for program storage, data logging, and firmware upgrades

Keep Memory - Standard Keep Area: 128 KB (including timers, counters, flag bits, actually available 88 KB)

-Extended hold area: 1 MB (requires a 60W 24/48/60 V DC HF power supply)

2. Power supply and power consumption

Power supply voltage: 24 V DC (industrial standard DC power supply), allowable range 19.2~28.8 V DC;

Current parameters: rated current 0.7 A, maximum current 0.95 A, maximum impulse current 1.9 A (I ² t=0.02 A ² · s);

Power protection: supports reverse polarity protection to prevent equipment damage caused by wiring errors;

Power consumption: The input power of the backplane bus is 10 W, the balanced power consumption is 5.5 W, the typical power consumption is 5.7 W, and the low-power design is suitable for energy-saving systems.

3. Physical dimensions and installation

Dimensions: Width 35 mm x Height 147 mm x Depth 129 mm (Compact design, compatible with S7-1500 standard rack);

Installation method: DIN rail installation (compliant with EN 50022 standard), single rack supports up to 32 modules (CPU+31 expansion modules);

Weight: Approximately 405 g, lightweight design reduces the load-bearing pressure of the rack.

4. Display and operation

Display screen: A small 3.45 cm (1.36 inch) display panel used for status indication and basic operations;

Operation buttons: 8 function keys+2 mode buttons (RUN/STOP), supporting manual switching of operating modes and parameter settings;

Indicator lights: RUN/STOP, ERROR, MAINT, STOP ACTION, and LINK TX/RX status lights, providing visual feedback on device operation and communication status.

Communication interface and protocol

1. Core communication interface

Number and specifications of interface types

PROFINET interface 1 integrated PROFINET IRT interface (X1), including 2 RJ45 ports, built-in switch, supports 100 Mbps speed, with LINK TX/RX indicator light

Extended communication supports the expansion of interfaces such as PROFIBUS and Ethernet through CM/CP modules, and can accommodate up to 4 CM/CP modules

2. Support protocols and functions

(1) PROFINET Core Features

IO Controller/Device: Supports dual roles of PROFINET IO Controller and IO Device, connecting up to 128 IO Devices (of which 64 support IRT), and a total of 256 distributed I/O devices (including AS-i and PROFIBUS);

Real time performance: The minimum update time in IRT mode is 250 μ s (in conjunction with isochronous mode OB 6x, with a minimum cycle of 625 μ s), and the minimum update time in RT mode is 250 μ s;

Redundancy and Security: Supports Media Redundancy Protocol (MRP, compliant with IEC 62439-2), with a typical ring network switching time of 200ms; supports MRPD (requiring IRT), achieving interference free switching; Support PROFIenergy energy-saving protocol (requires user program configuration).

(2) Other industrial agreements

Industrial Ethernet protocols: TCP/IP, ISO on TCP (RFC1006), UDP (supports multicast, maximum data length 2 KB), DHCP, DNS, SNMP, DCP, LLDP;

SIMATIC proprietary protocols: S7 communication (client/server), S7 routing (up to 16 paths), PG/OP communication (supporting TLS V1.3 encryption);

Open protocol: OPC UA (requires "Small" operating license) MODBUS TCP；

Time synchronization: Supports NTP protocol and master-slave synchronization within AS, with a hardware clock backup time of 6 weeks (at 40 ℃ environment) and a maximum daily deviation of 10 seconds (typical 2 seconds).

3. Connection ability

Maximum number of connections: 96 (including integrated interfaces and extended CM/CP interfaces), with 10 reserved for ES/HMI/Web communication;

S7 Communication: Supports encrypted S7 communication, maximum user data length reference online help;

Web Server: Built in web server, supports HTTP/HTTPS access, customizable user pages, supports encrypted communication.

Control function and performance

1. Program and task management
